Brake Fluid Reservoir: Removal

NOTE: Siphon the brake fluid from the HCU/EBB reservoir, if the reservoir is not emptied there will be a large amount of brake fluid spilled in the engine compartment.

NOTE: Removal steps in this procedure may contain installation details.

Remove the cowl panel grille. Refer to: Cowl Panel Grille .
Release the tabs and remove the BCMC cover.

Courtesy of FORD MOTOR COMPANY
1. Remove the nut and position aside the cable aside.
  Torque: 106 lb.in (12 Nm)
2. Fully loosen the BCMC connector bolts.
  Torque: 48 lb.in (5.4 Nm)
Courtesy of FORD MOTOR COMPANY
Release the tabs and remove the BCMC.

Courtesy of FORD MOTOR COMPANY
Remove the bolts, detach the wiring retainers and then remove the BCMC support bracket.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If the brake fluid is spilled on any component, the affected area must be immediately washed down with cold water.

NOTE: Be prepared to collect escaping fluid.

Disconnect the remote brake fluid reservoir tube and drain the fluid into a suitable container.

Courtesy of FORD MOTOR COMPANY

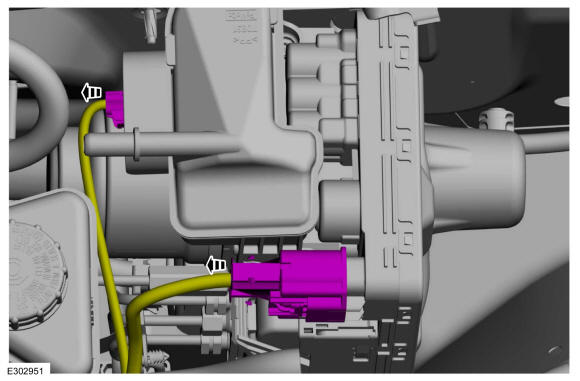

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

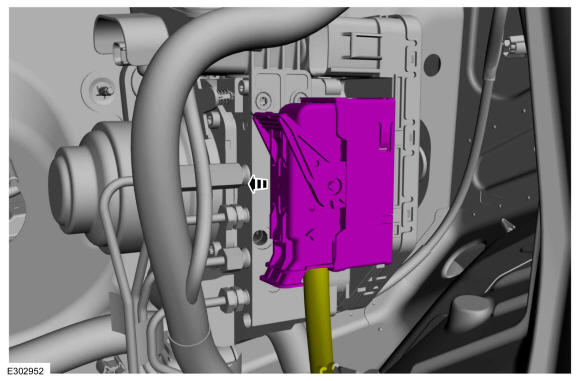

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

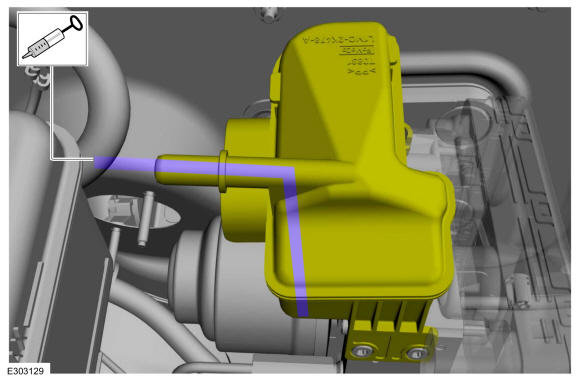

Siphon and remove the brake fluid with the help of flexible hose and syringe.

Courtesy of FORD MOTOR COMPANY
NOTE: Brake fluid reservoir mounting screws and the sealings plugs are supplied with the brake fluid reservoir kit.

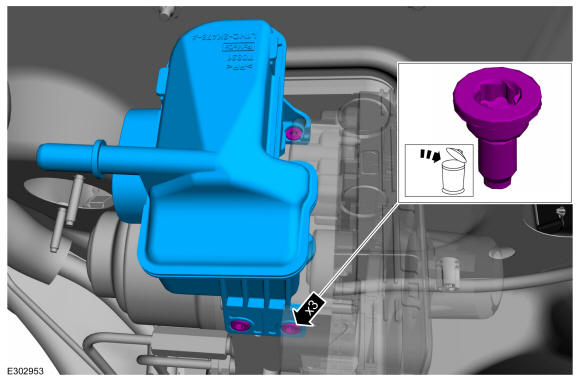

Remove the screws and the brake fluid reservoir. Discard the screws.

Torque: 23 lb.in (2.6 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Brake fluid reservoir mounting screws and the sealings plugs are supplied with the brake fluid reservoir kit.

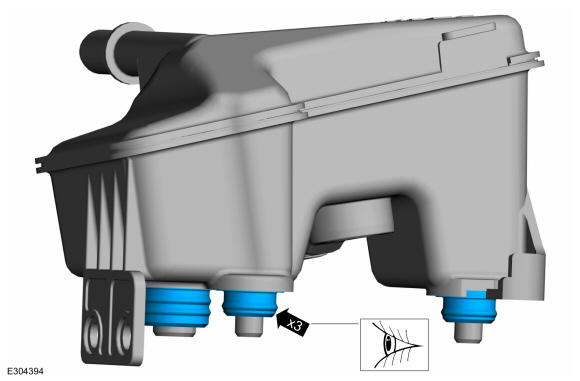

Ensure that old brake fluid reservoir sealing washers are removed before installing new reservoir with new washers.

Courtesy of FORD MOTOR COMPANY
