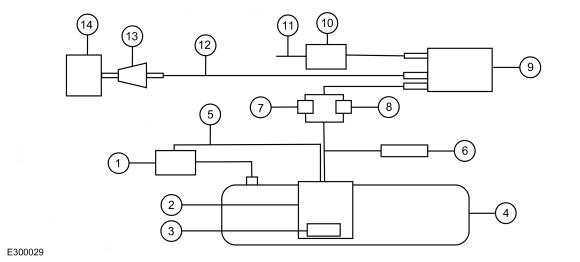

System Diagram
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Fuel tank filler pipe |
| 2 | Fuel delivery module (FDM) |
| 3 | Fuel level sensor (FLS) |
| 4 | Fuel tank |
| 5 | Vapor recirculation line |
| 6 | Fuel tank pressure (FTP) sensor and tube |
| 7 | Fuel vapor vent valve (FVVV) / Refueling valve (RV) |
| 8 | Fuel tank isolation valve (FTIV) / Tank pressure control (TPC) |
| 9 | EVAP carbon canister |
| 10 | EVAP leak detection control module |
| 11 | Fresh air hose |
| 12 | Fuel and vapor line bundle |
| 13 | EVAP purge valve (EPV) and tube |
| 14 | Intake manifold |
