Parking Aid - Vehicles With: Active Park Assist
>>
Description And Operation
>>
Parking Aid - Component Location
Parking Aid - Component Location

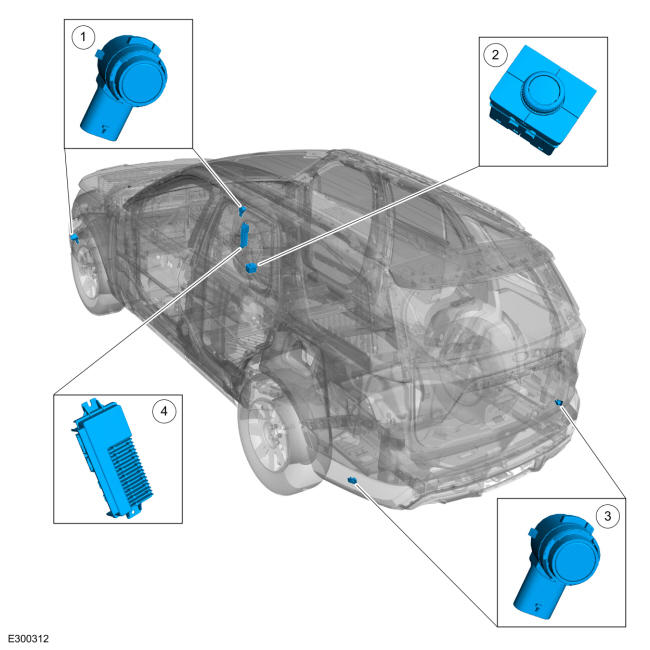

Component Location - Active Park Assist
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Front active park assist sensors
2
Active park assist switch (integral to the ATCM)
3
Rear active park assist sensors
4
IPMB
Courtesy of FORD MOTOR COMPANY
