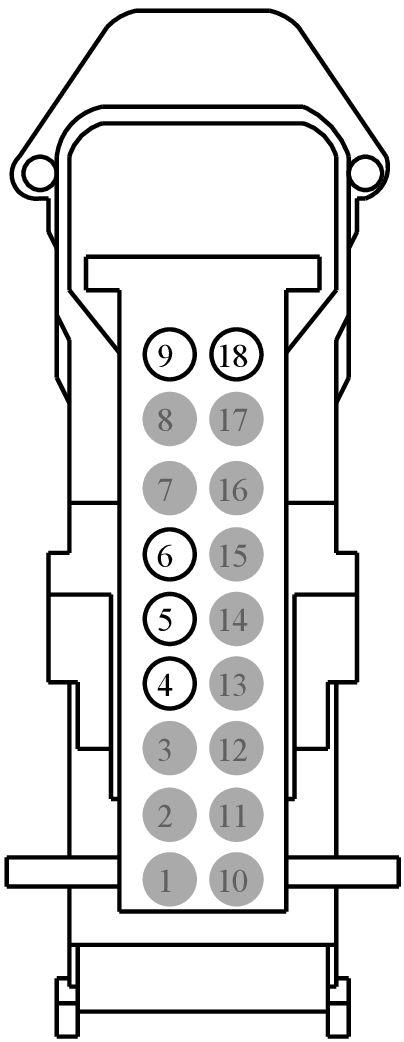

Connector End View C3676A - Image Processing Module B (IPMB)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3676A	IMAGE PROCESSING MODULE B (IPMB)	14A005			C3MP43-A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	DMP43 (BK)	.35	CAMERA - REAR PARK ASSIST D	N/A
5	VMP44 (VT-GY)	.35	CAMERA - REAR PARK ASSIST #DIGITAL VIDEO OUT - (LVDS-)	N/A
6	VMP43 (GN-BN)	.35	CTRL MOD. - IMAGE PROCESSING B #VIDEO OUT +	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	VDB26 (GY-BU)	.35	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	VDB25 (GN-OG)	.35	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1399

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-LA

Gauge:

20

Pin material:

Tin (greased)

Cavities:

18

Vehicle Uses:

• Module - Gear Shift
