Fuel Pump and Sender Unit: Removal
WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the Fuel Tank.
-

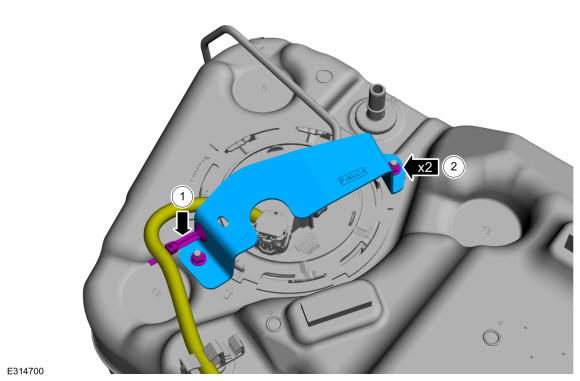

- Detach the clip and position the wiring harness aside.
- Remove the nuts.
Torque: 80 lb.in (9 Nm)

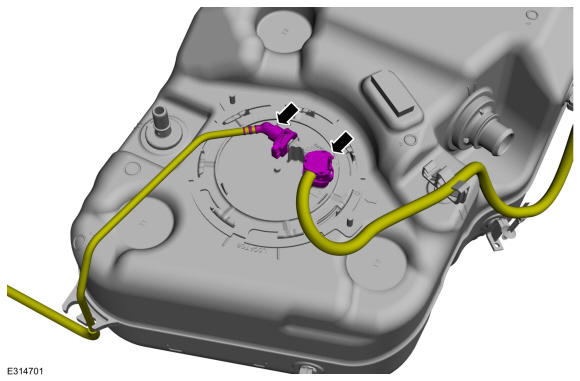

- Disconnect the electrical connector and quick release coupling. Refer to: QUICK RELEASE COUPLING
-
NOTE: Note the position of the component before removal.

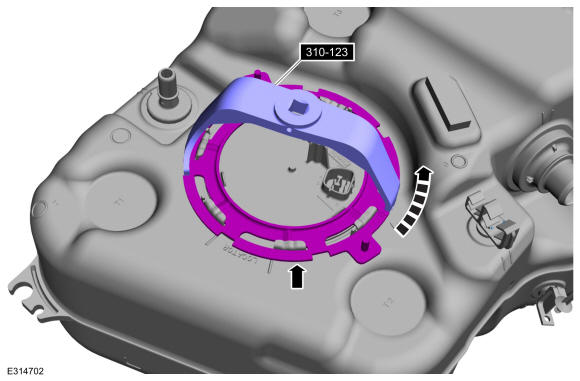

Using the special tool remove the lock ring and the fuel pump and sender unit. Use Special Service Tool: 310-123 Locking Ring, Fuel Tank.
- Lift the Fuel Pump and Sender unit slightly and disconnect the quick connector and the electrical connector. Refer to: QUICK RELEASE COUPLING
.
-
NOTE: Take extra care not to damage the fuel tank level sensor float and arm.

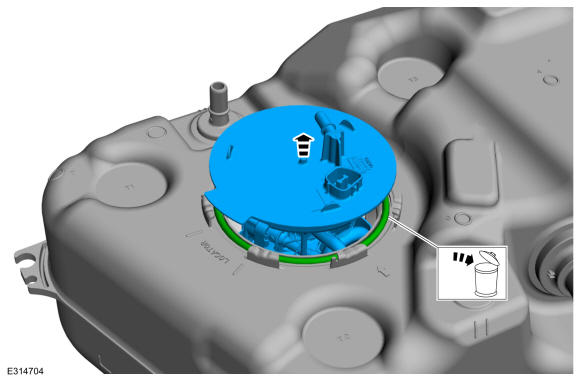

Remove and discard the O-ring.
