Fuel Level Sender: Removal

WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the fuel pump sender unit.

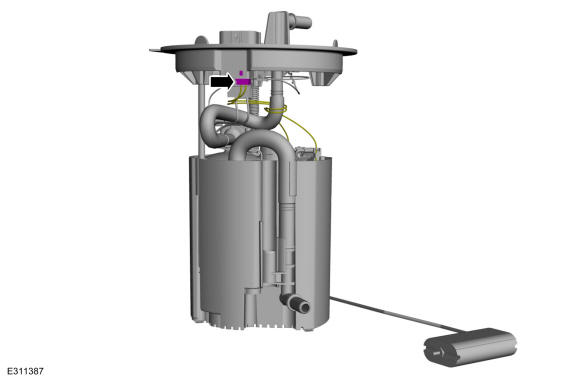

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

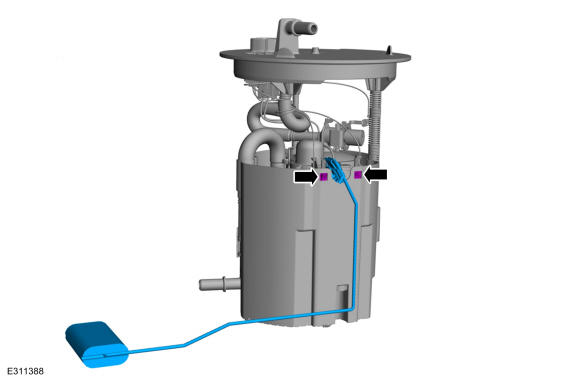

1. NOTE: Take extra care not to damage the fuel tank level sensor float and arm.

  Release the retainer tab.
2. Remove the Fuel Level Sender.

Courtesy of FORD MOTOR COMPANY
