Adjustable Pedal

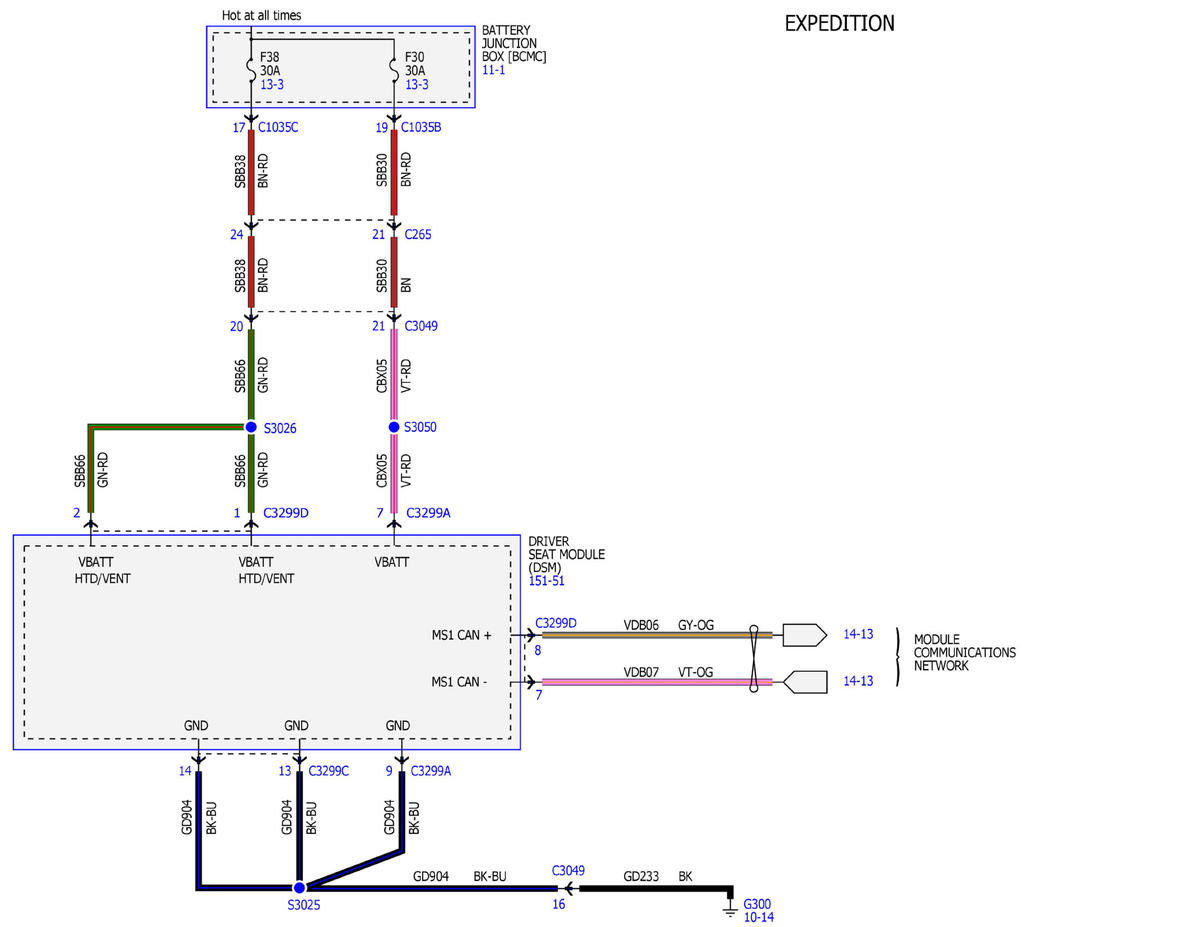

Fig 1: Adjustable Pedal (1 Of 4)
GFDWR181710Courtesy of FORD MOTOR COMPANY

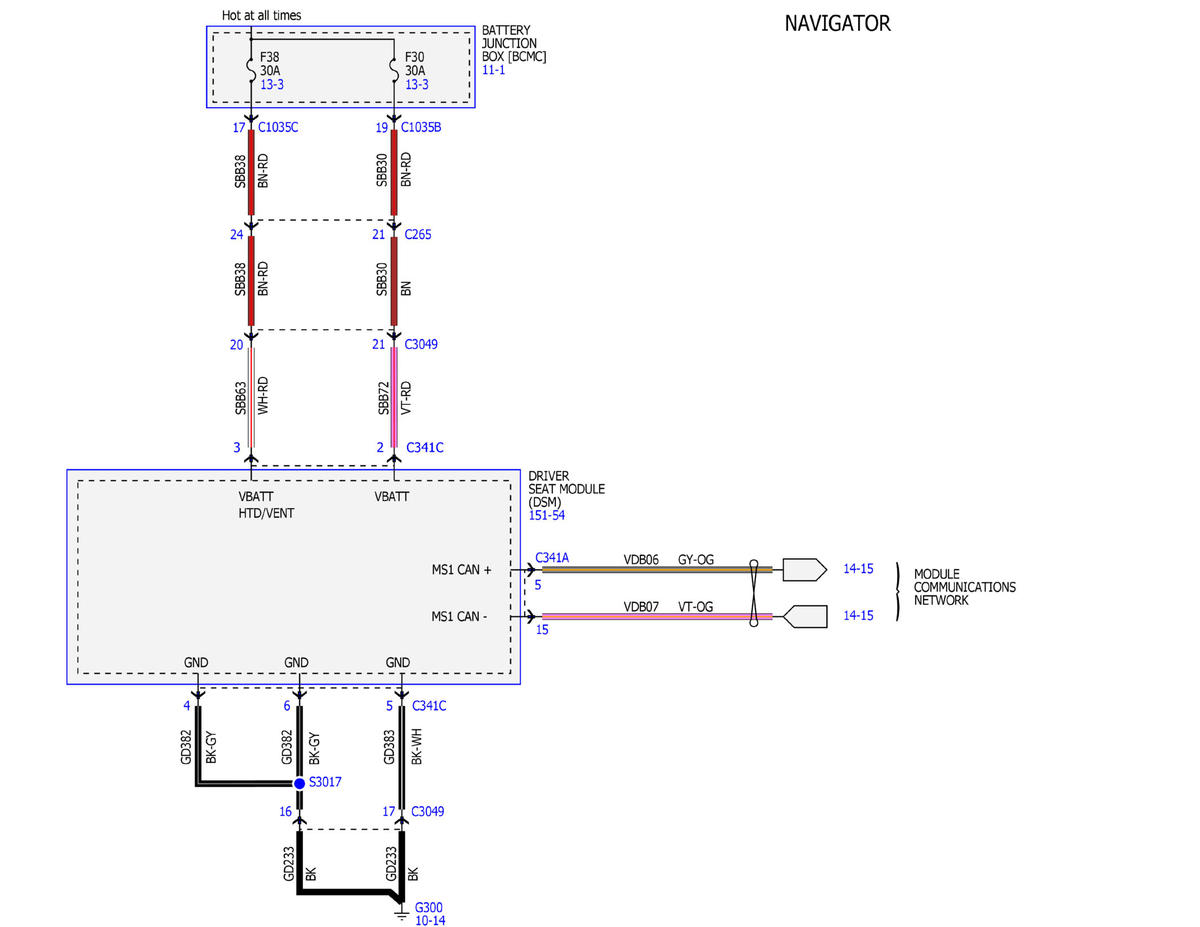

Fig 2: Adjustable Pedal (2 Of 4)
GFDWR181711Courtesy of FORD MOTOR COMPANY

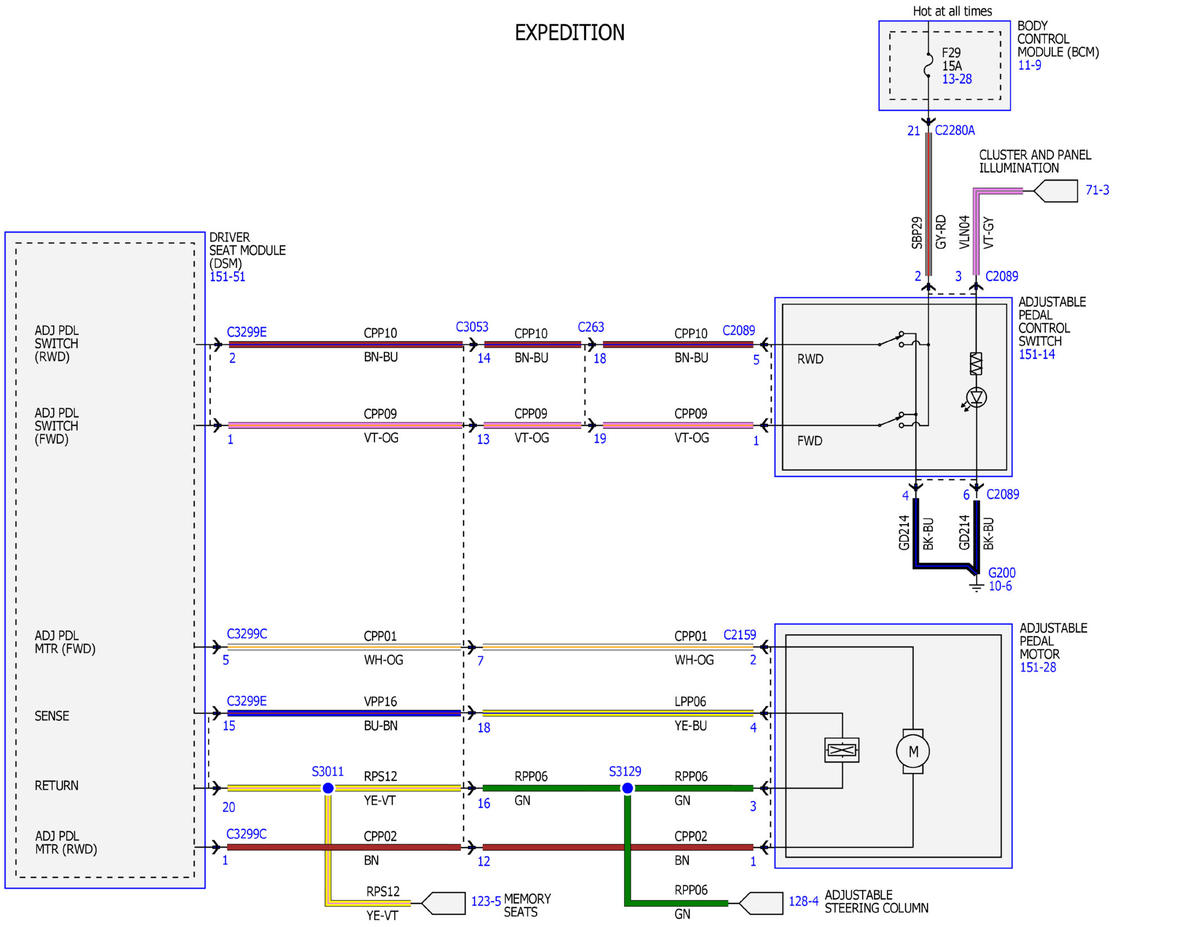

Fig 3: Adjustable Pedal (3 Of 4)
GFDWR181712Courtesy of FORD MOTOR COMPANY

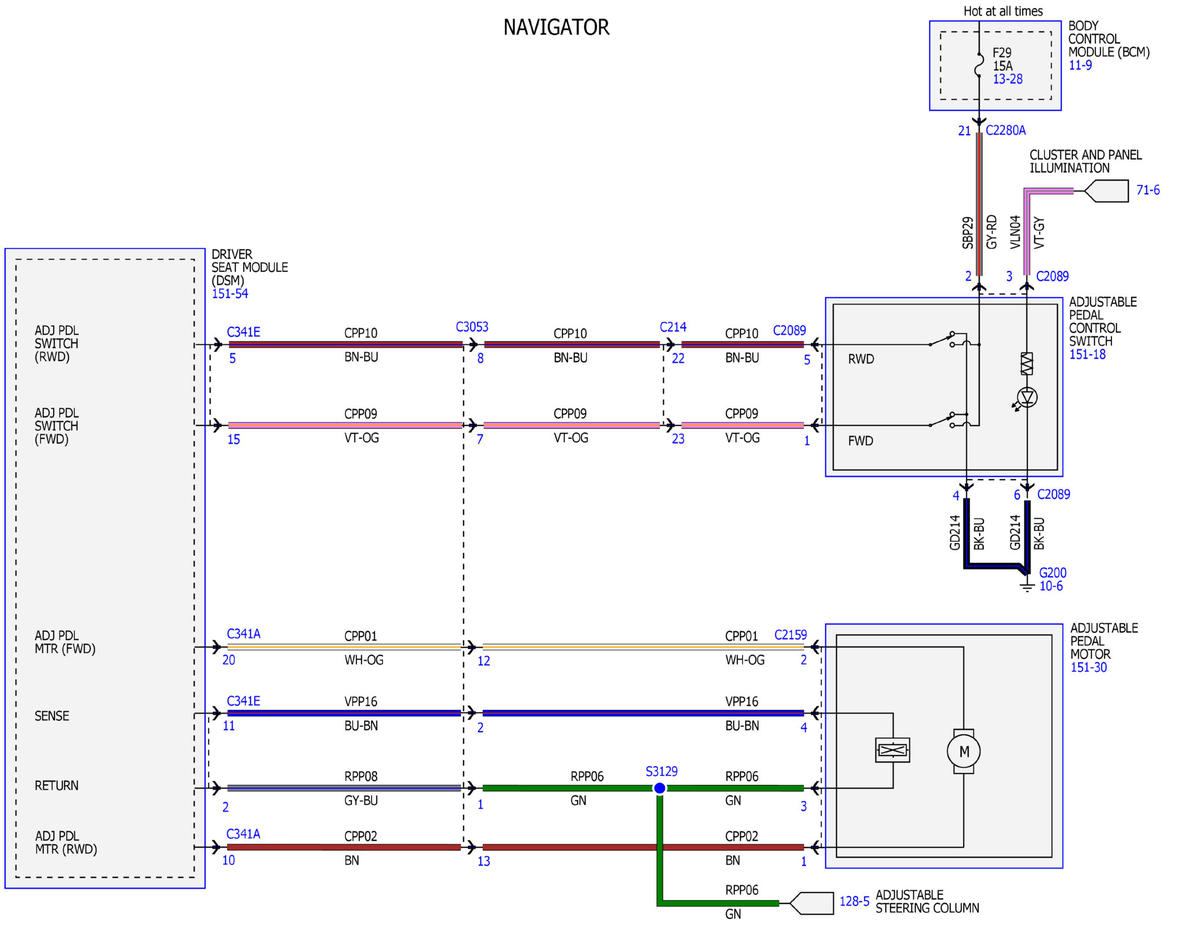

Fig 4: Adjustable Pedal (4 Of 4)
GFDWR181713Courtesy of FORD MOTOR COMPANY
