Transfer Case Shift Motor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING .

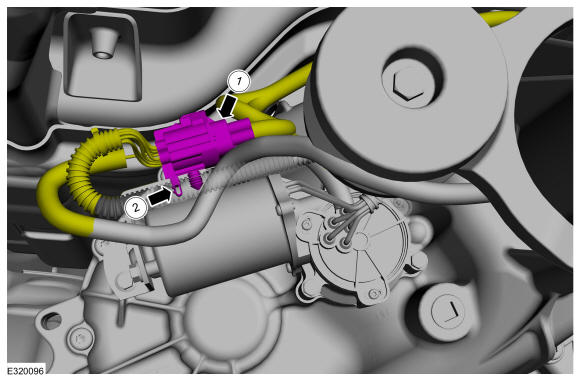

    1. Disconnect the wiring harness connector.
    2. Detach wiring harness retainers.
    GFD702147Courtesy of FORD MOTOR COMPANY

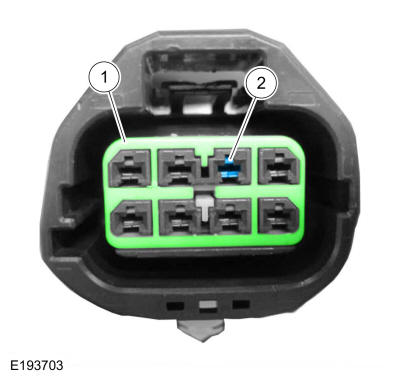

  3. Remove the coil wire pin from the electrical connector.

    1. Remove the inner retainer from the wire connector.
    2. Press the release tab and remove the coil wire pin.

    GFD702148Courtesy of FORD MOTOR COMPANY

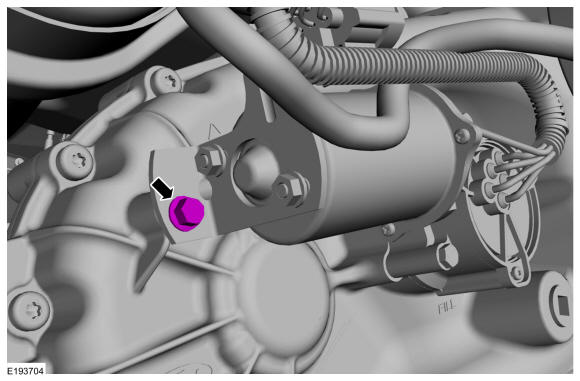

  4. Remove the transfer case shift motor bracket bolt.
    GFD702149Courtesy of FORD MOTOR COMPANY

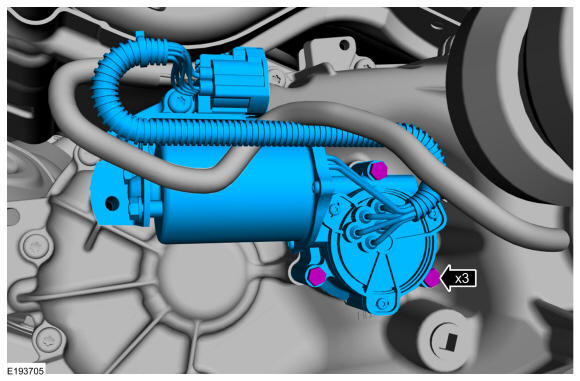

  5. Remove the mounting bolts and the transfer case shift motor.
    GFD702150Courtesy of FORD MOTOR COMPANY

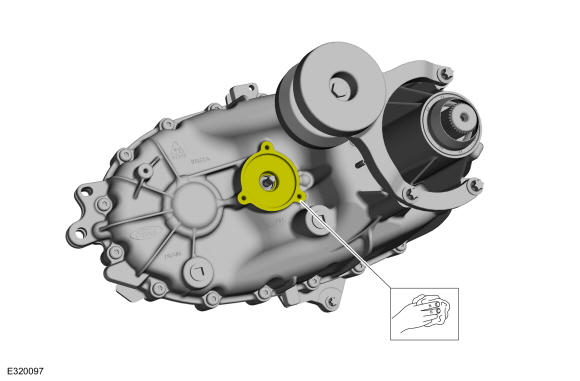

  6. Clean the transfer case shift motor mating surface. Refer to: RTV Sealing Surface Cleaning and Preparation
GFD702151Courtesy of FORD MOTOR COMPANY
