Parking Aid

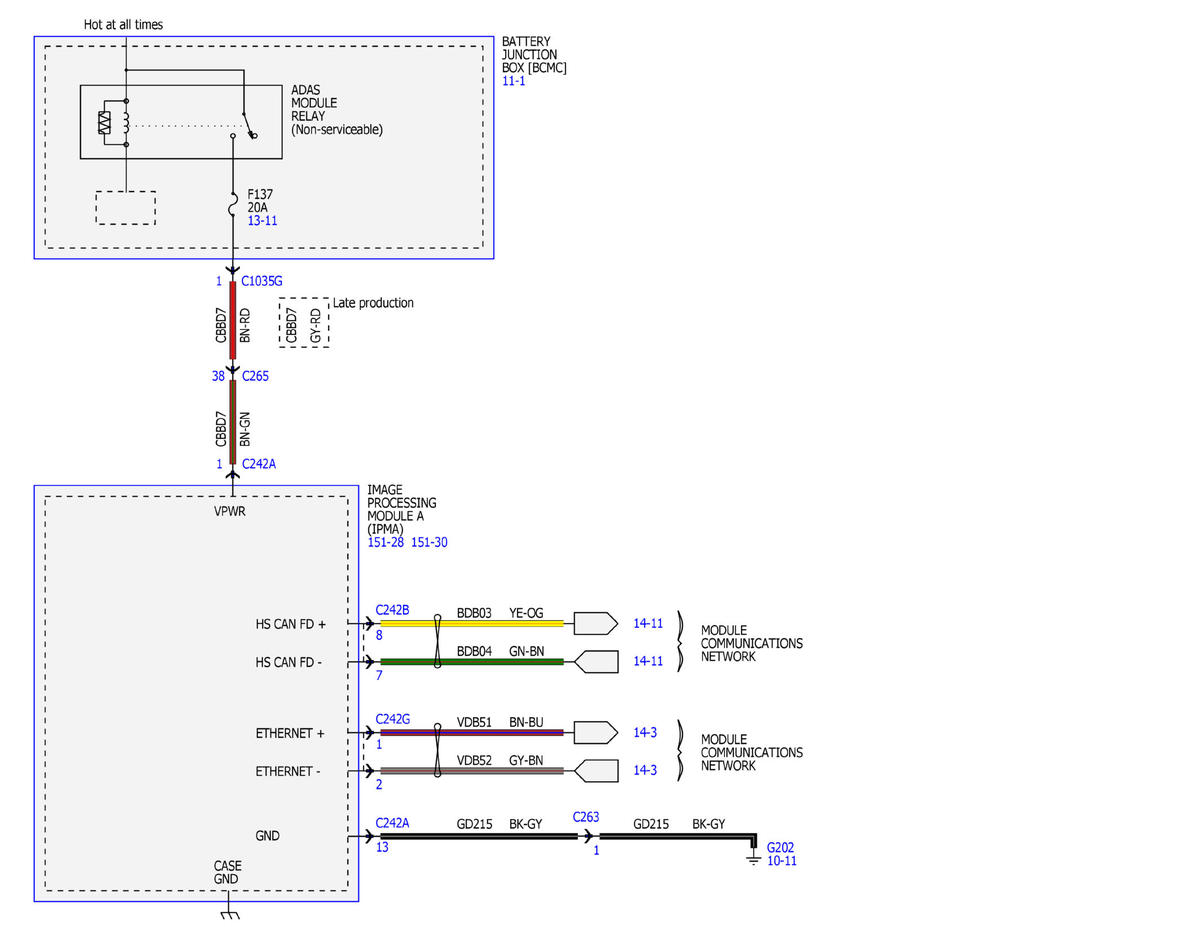

Fig 1: Parking Aid (1 Of 10)
GFDWR181944Courtesy of FORD MOTOR COMPANY

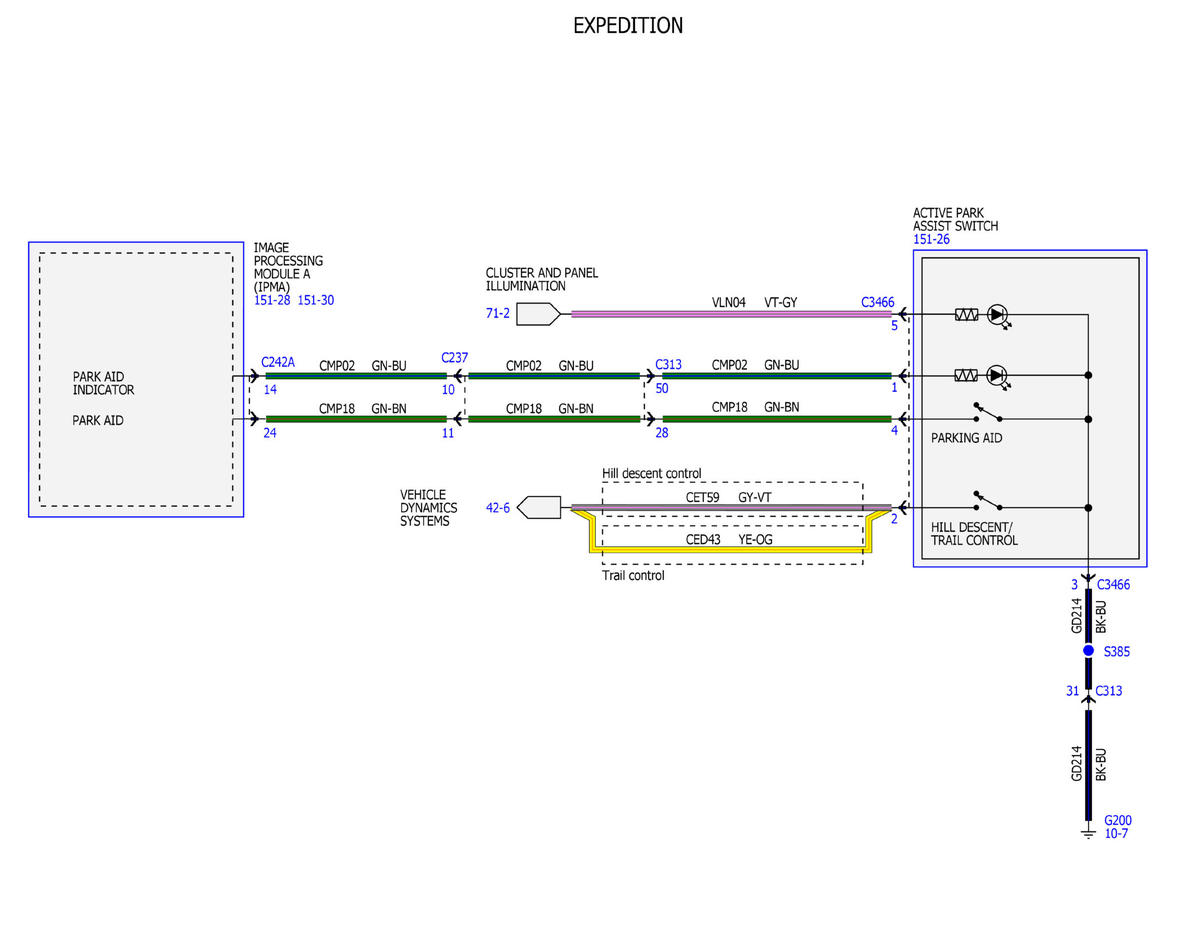

Fig 2: Parking Aid (2 Of 10)
GFDWR181946Courtesy of FORD MOTOR COMPANY

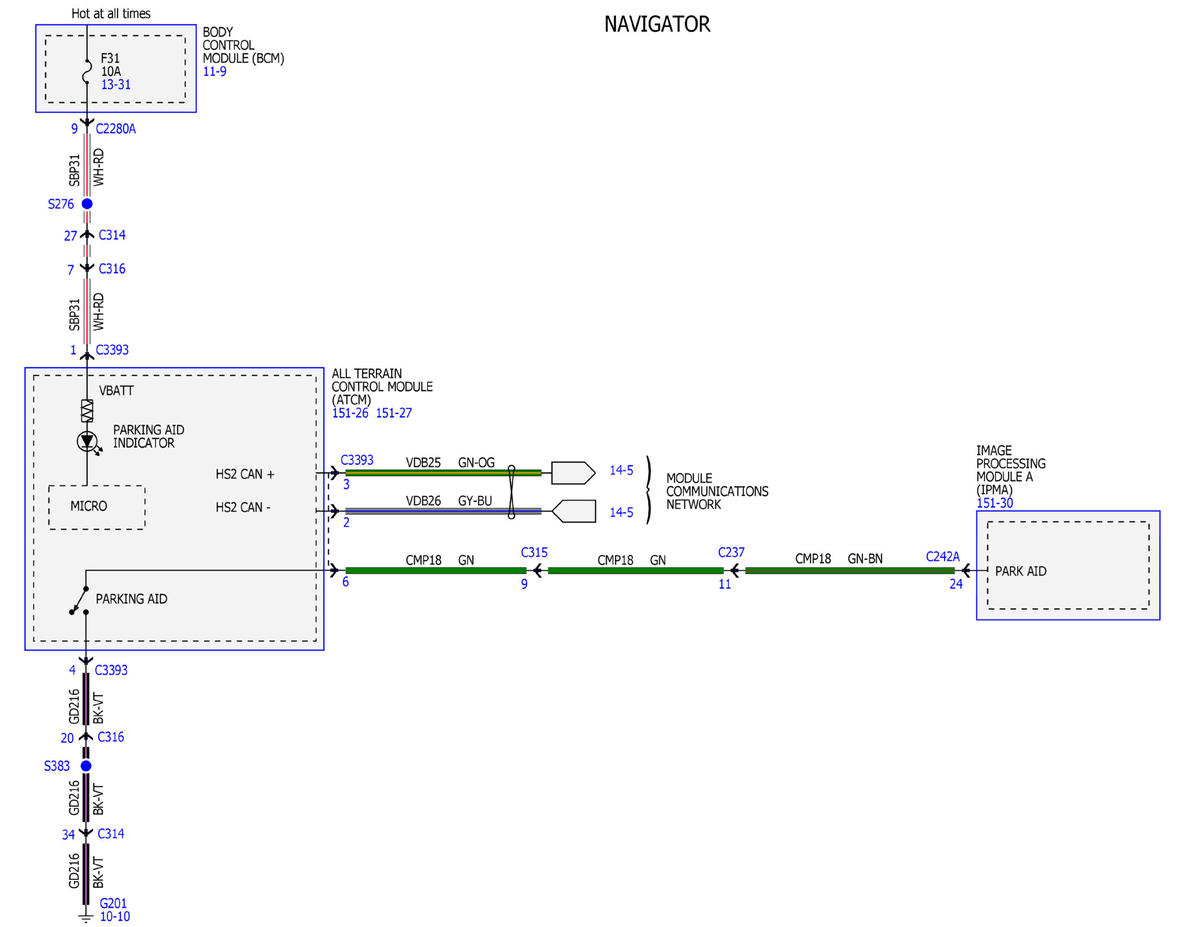

Fig 3: Parking Aid (3 Of 10)
GFDWR181947Courtesy of FORD MOTOR COMPANY

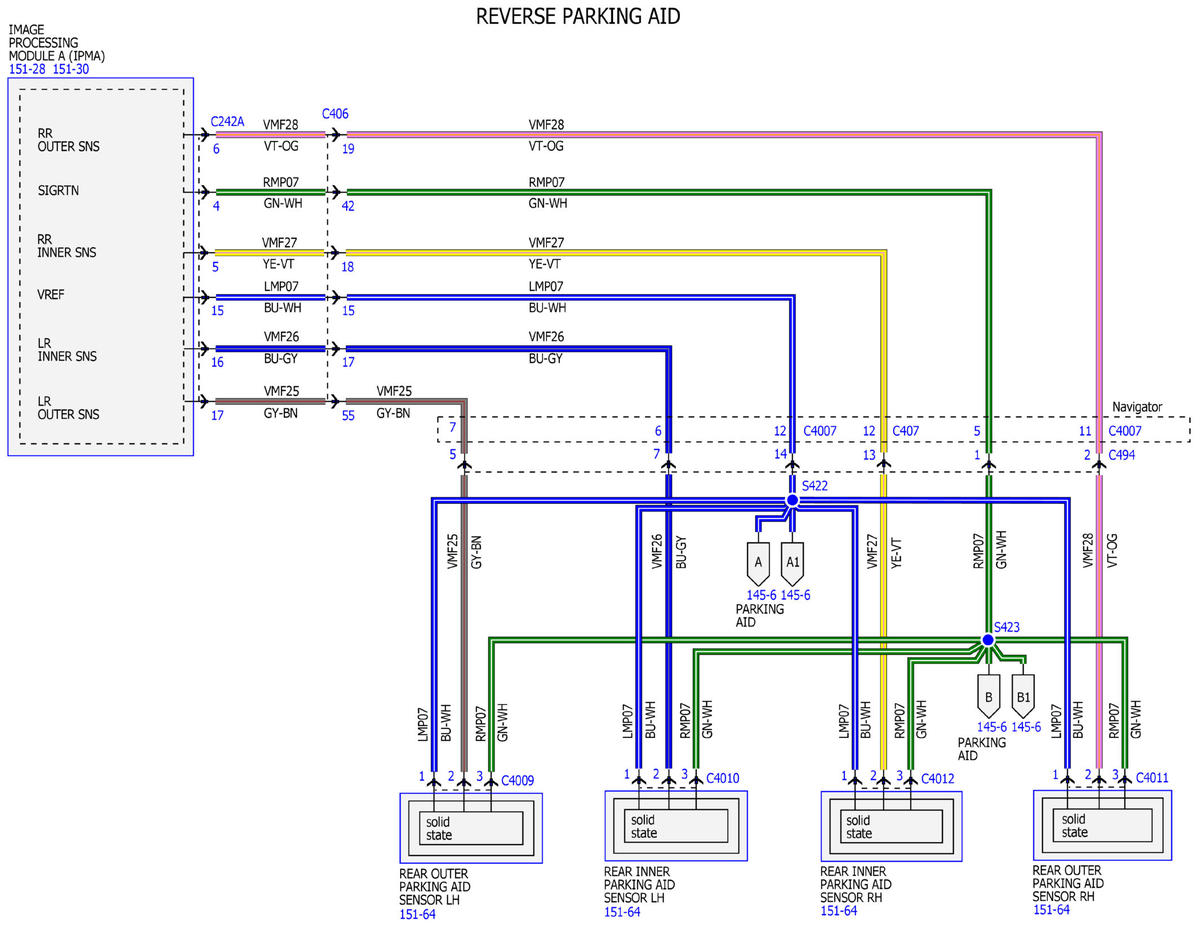

Fig 4: Parking Aid (4 Of 10)
GFDWR181948Courtesy of FORD MOTOR COMPANY

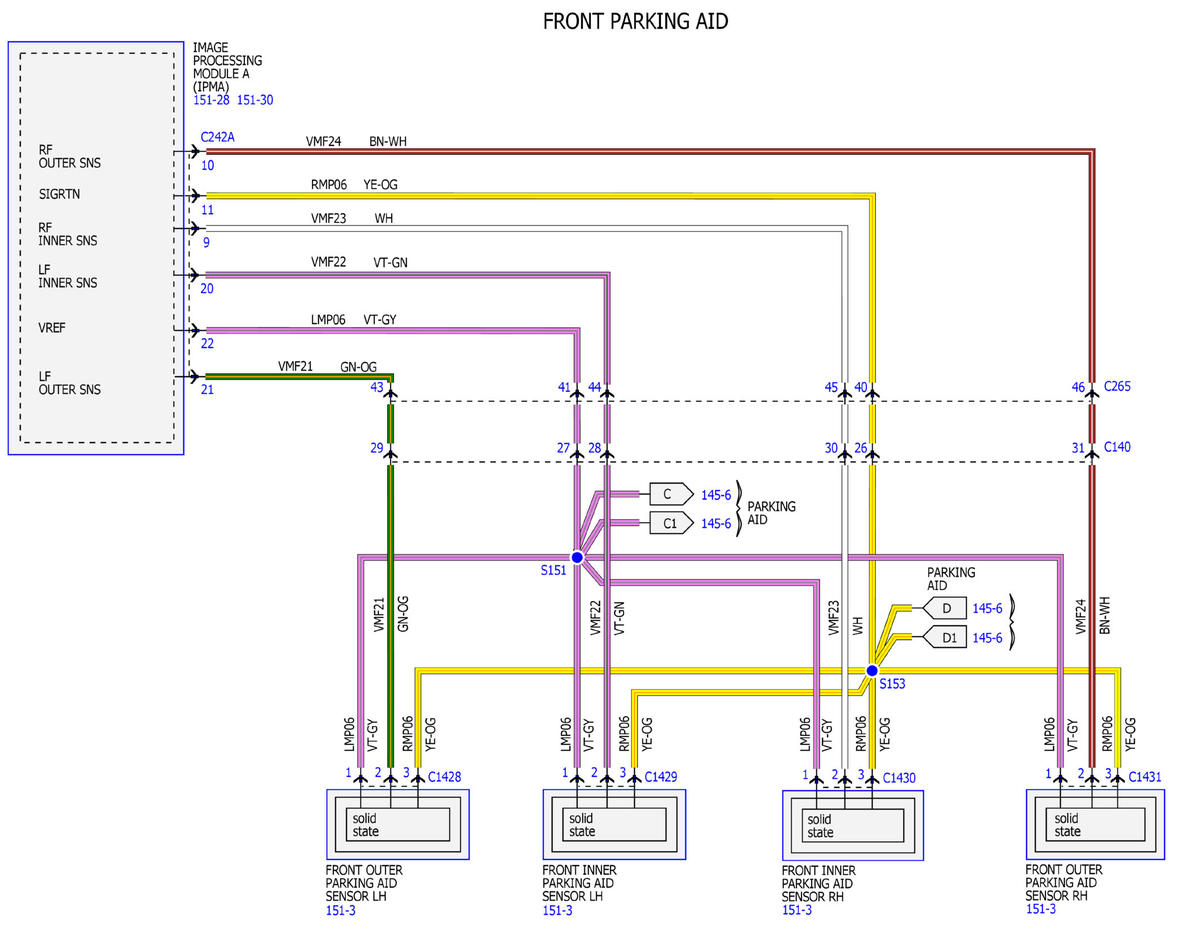

Fig 5: Parking Aid (5 Of 10)
GFDWR181949Courtesy of FORD MOTOR COMPANY

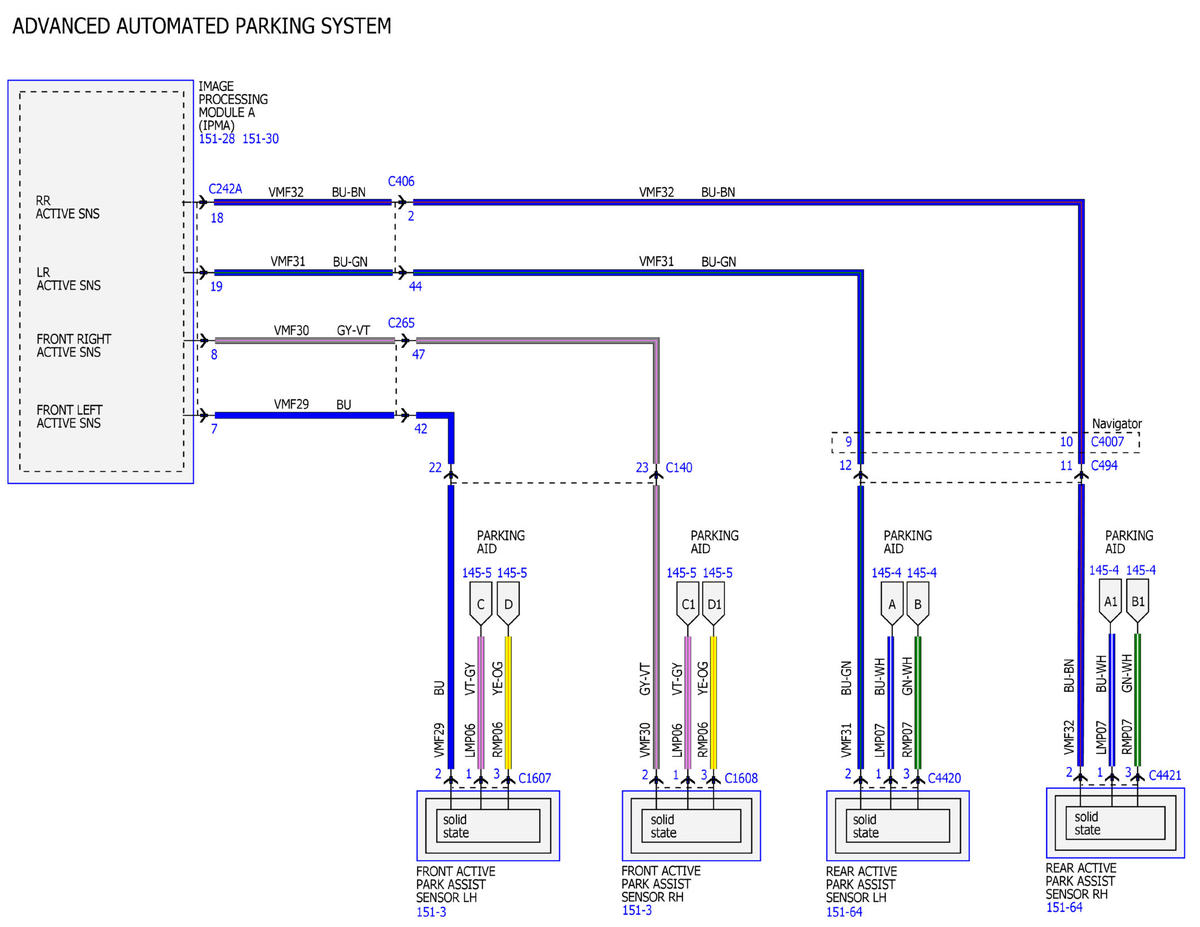

Fig 6: Parking Aid (6 Of 10)
GFDWR181950Courtesy of FORD MOTOR COMPANY

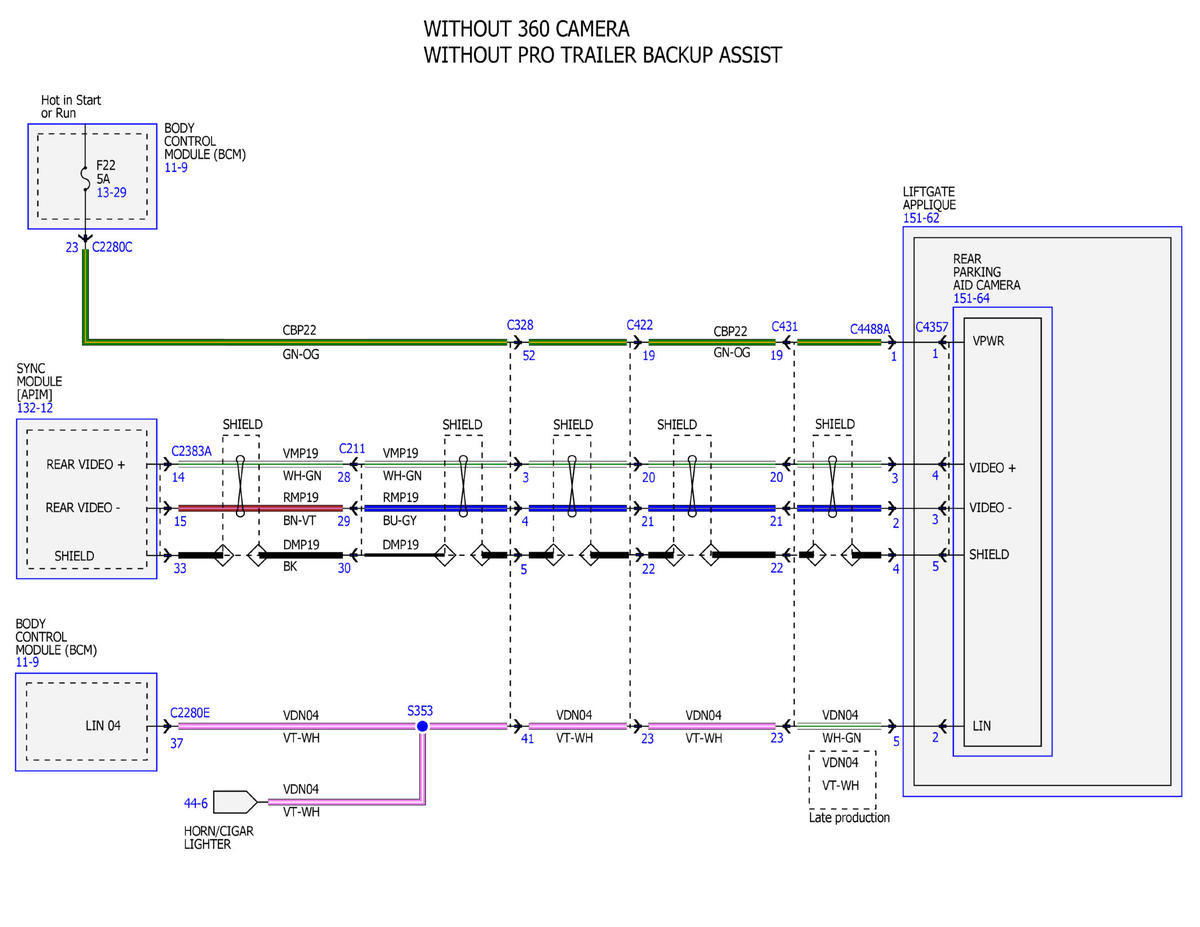

Fig 7: Parking Aid (7 Of 10)
GFDWR181951Courtesy of FORD MOTOR COMPANY

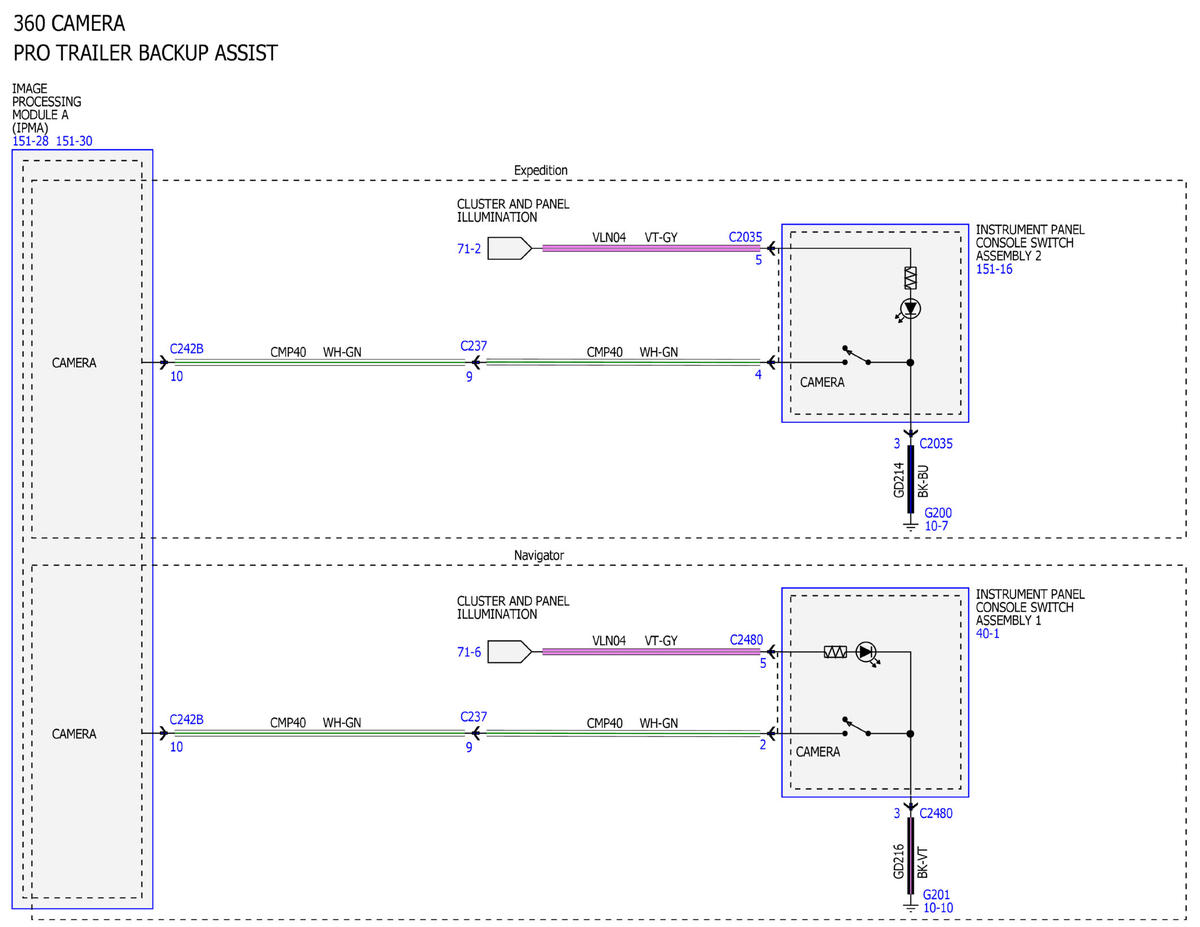

Fig 8: Parking Aid (8 Of 10)
GFDWR181952Courtesy of FORD MOTOR COMPANY

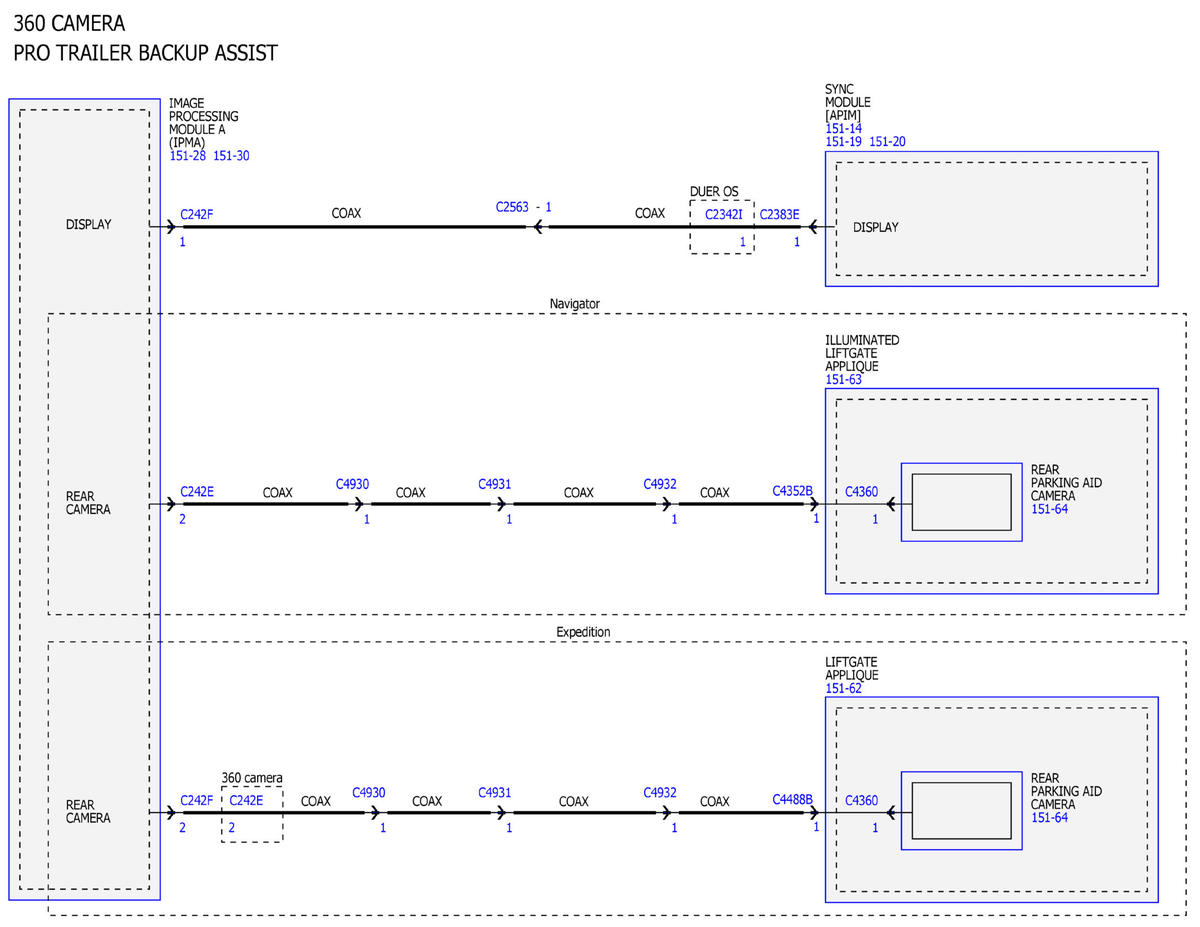

Fig 9: Parking Aid (9 Of 10)
GFDWR181953Courtesy of FORD MOTOR COMPANY

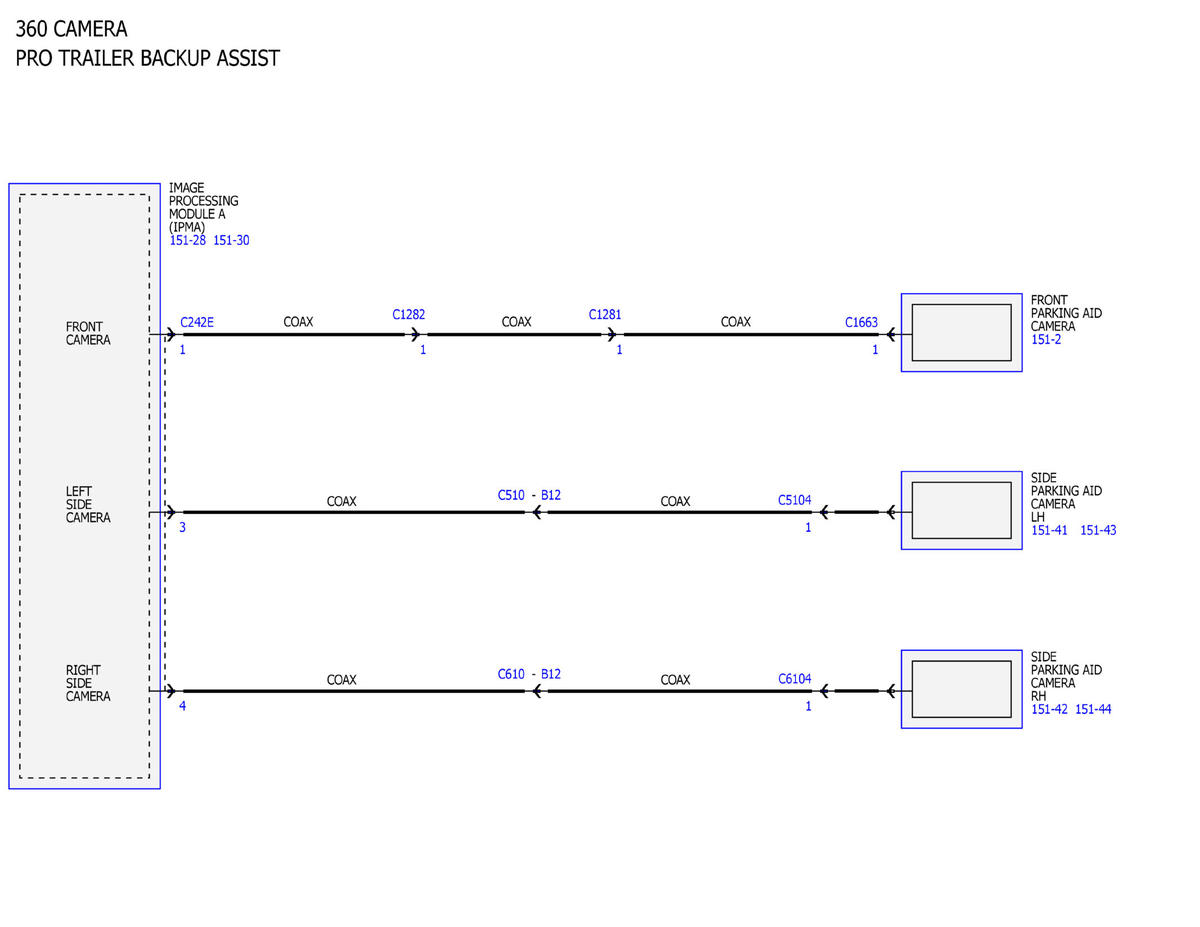

Fig 10: Parking Aid (10 Of 10)
GFDWR181945Courtesy of FORD MOTOR COMPANY
