Instrument Cluster

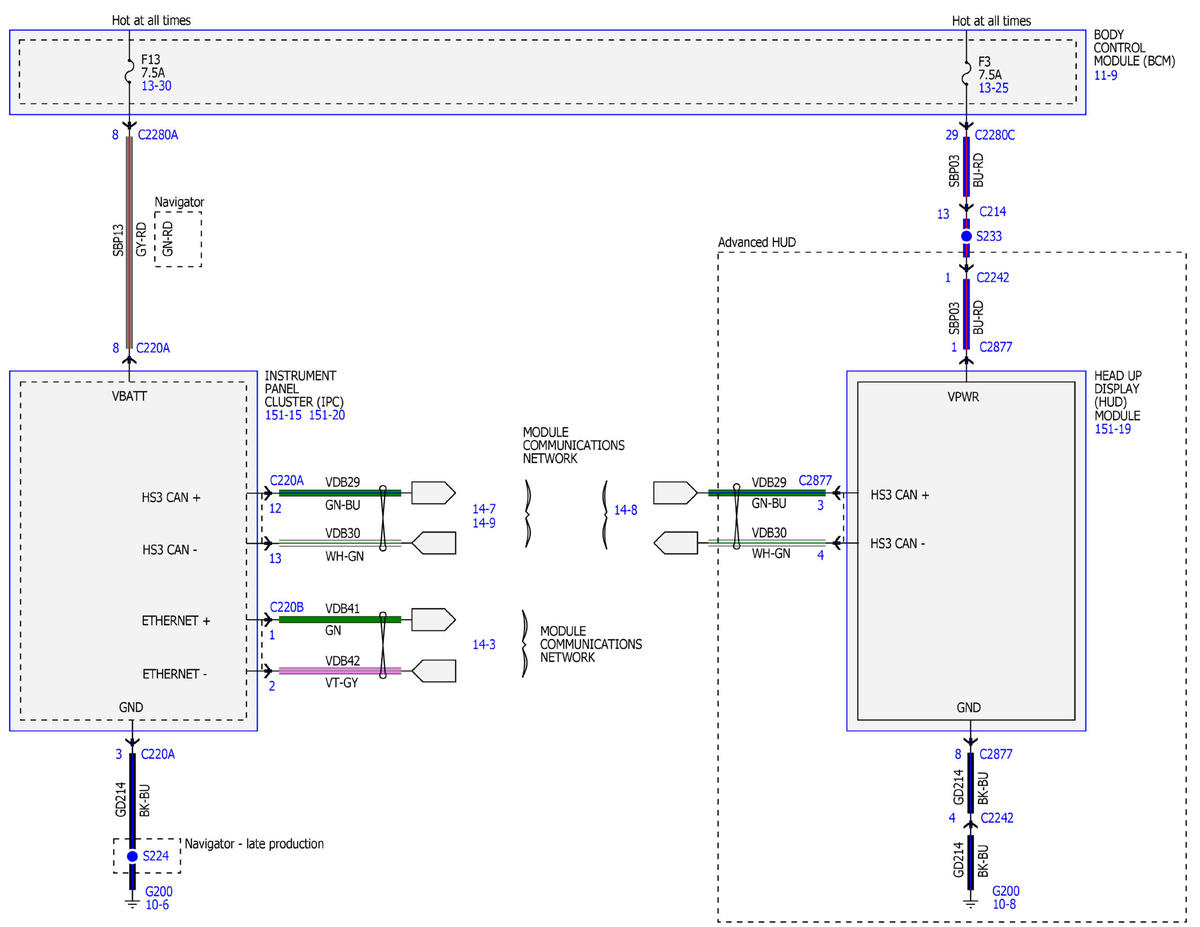

Fig 1: Instrument Cluster (1 Of 8)
GFDWR181886Courtesy of FORD MOTOR COMPANY

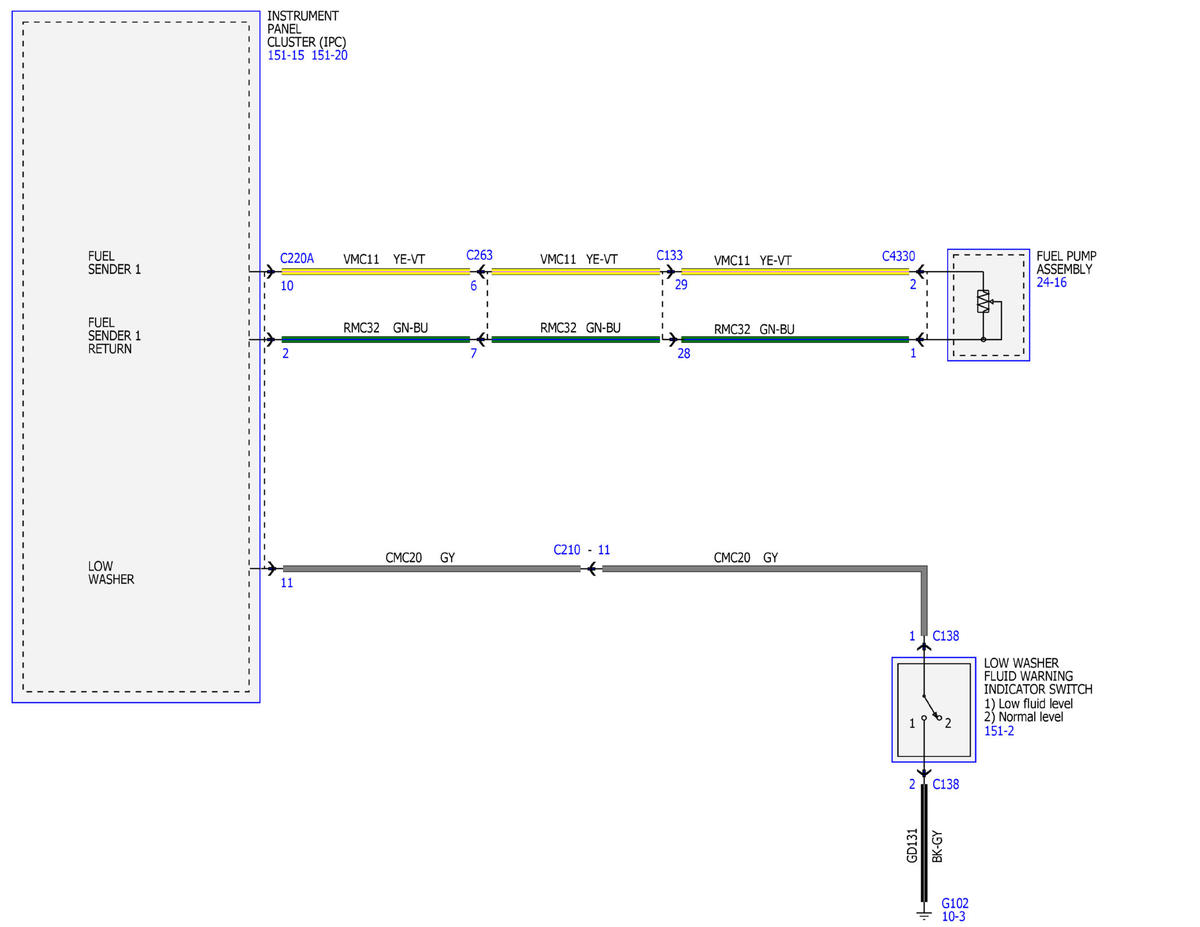

Fig 2: Instrument Cluster (2 Of 8)
GFDWR181887Courtesy of FORD MOTOR COMPANY

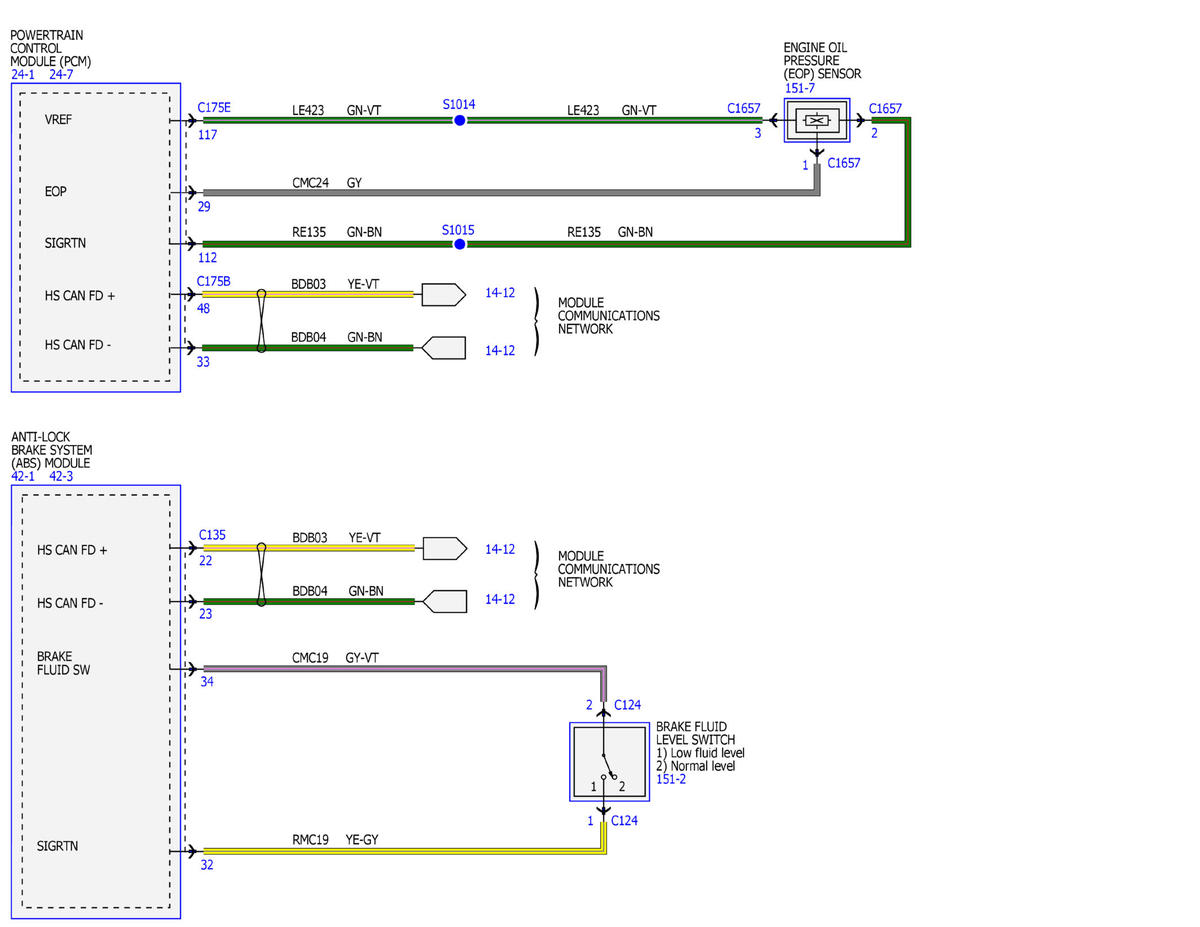

Fig 3: Instrument Cluster (3 Of 8)
GFDWR181888Courtesy of FORD MOTOR COMPANY

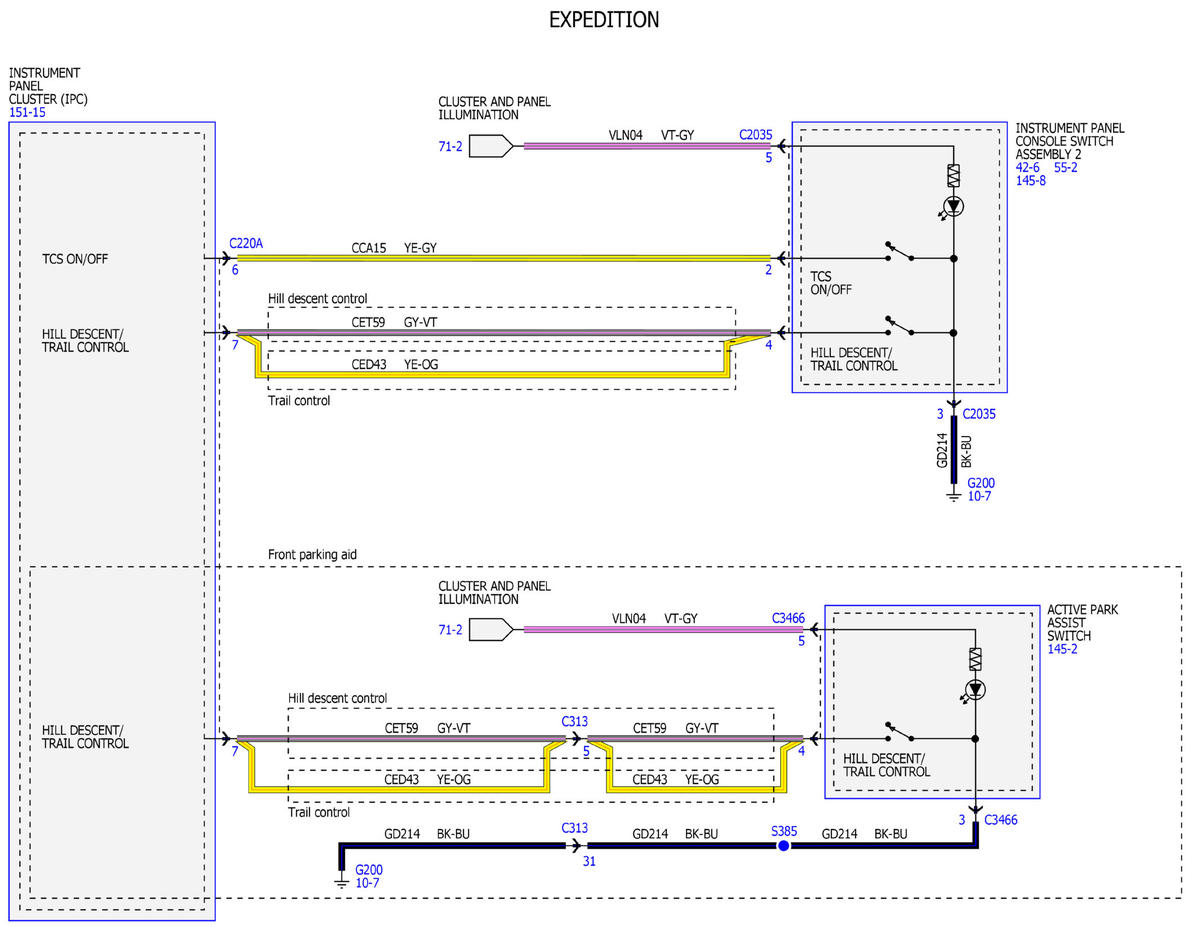

Fig 4: Instrument Cluster (4 Of 8)
GFDWR181889Courtesy of FORD MOTOR COMPANY

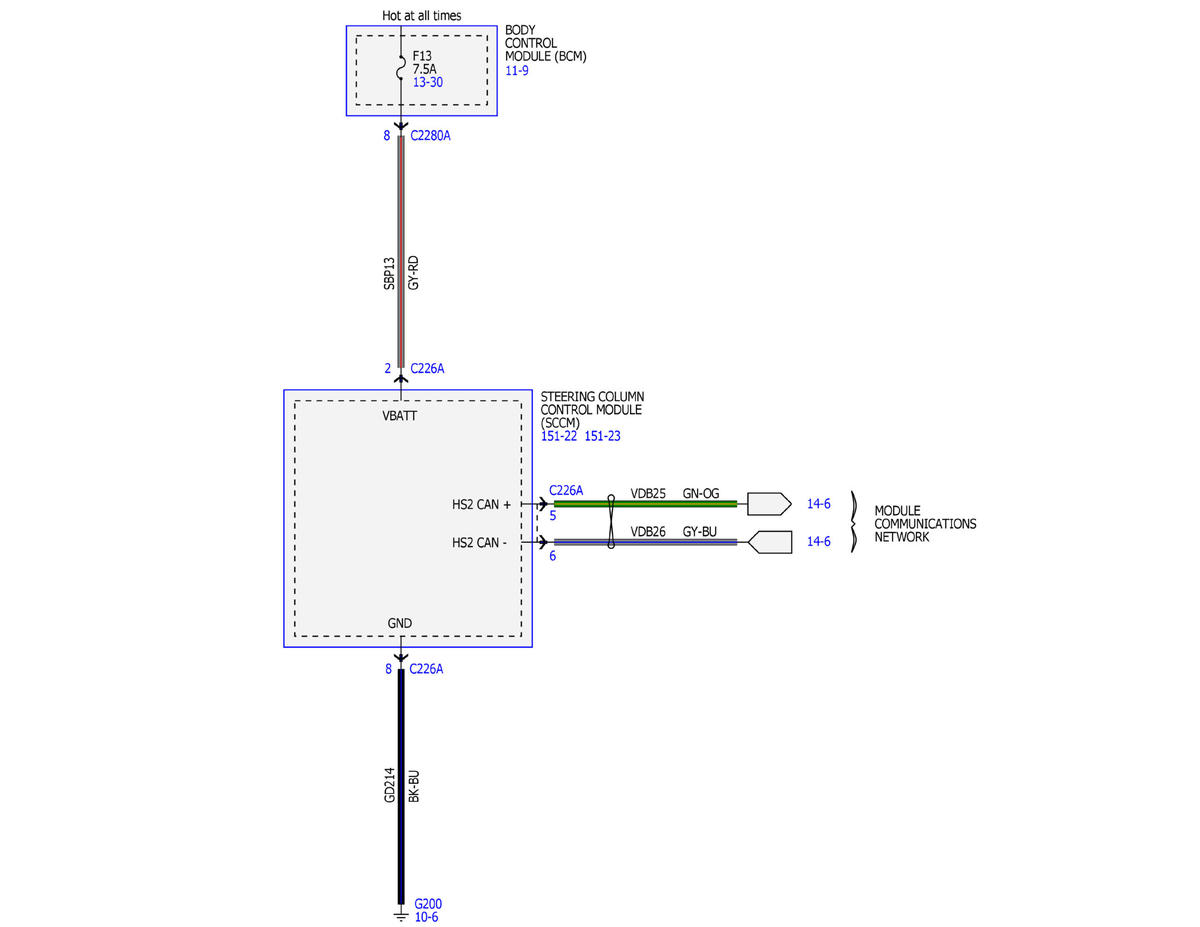

Fig 5: Instrument Cluster (5 Of 8)
GFDWR181890Courtesy of FORD MOTOR COMPANY
Fig 6: Instrument Cluster (6 Of 8)
GFDWR181891Courtesy of FORD MOTOR COMPANY

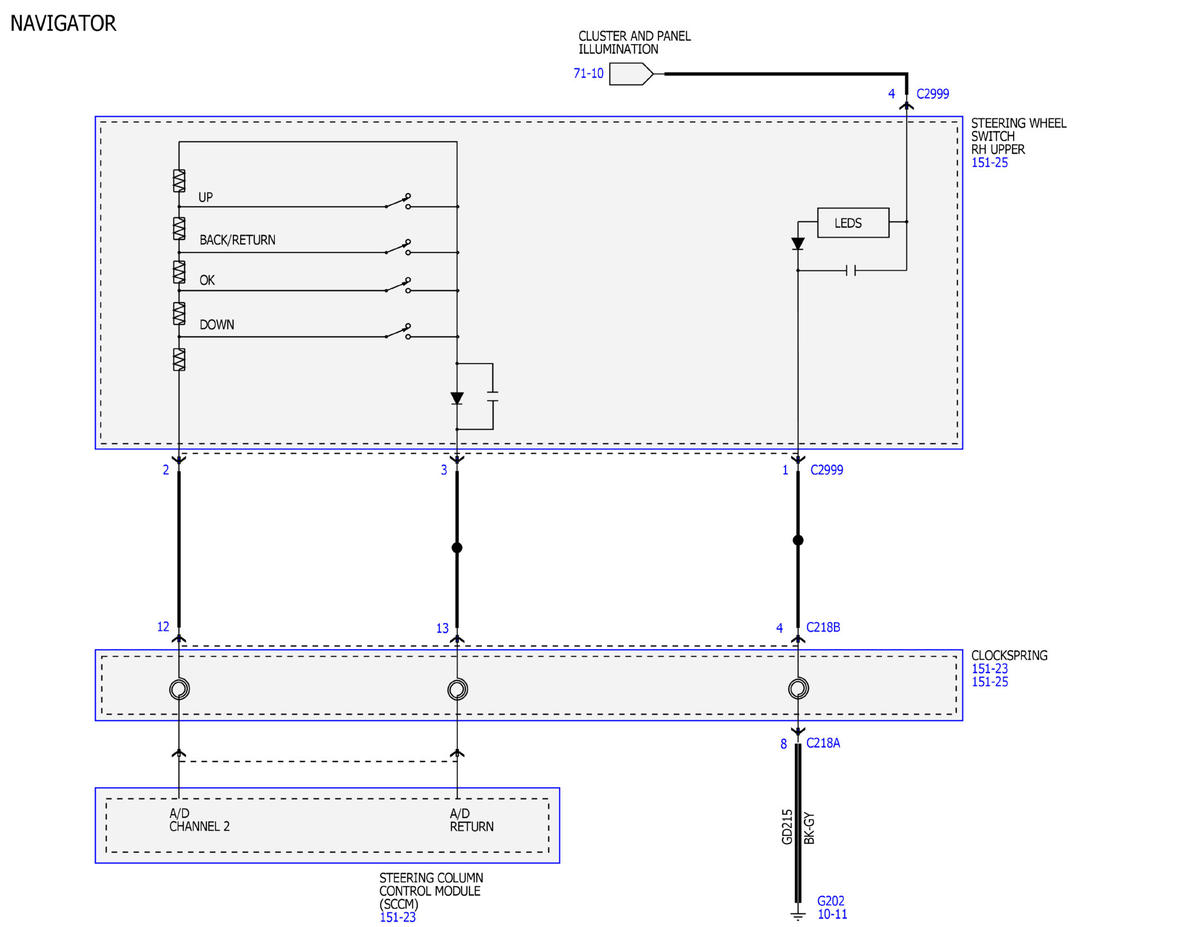

Fig 7: Instrument Cluster (7 Of 8)
GFDWR181892Courtesy of FORD MOTOR COMPANY

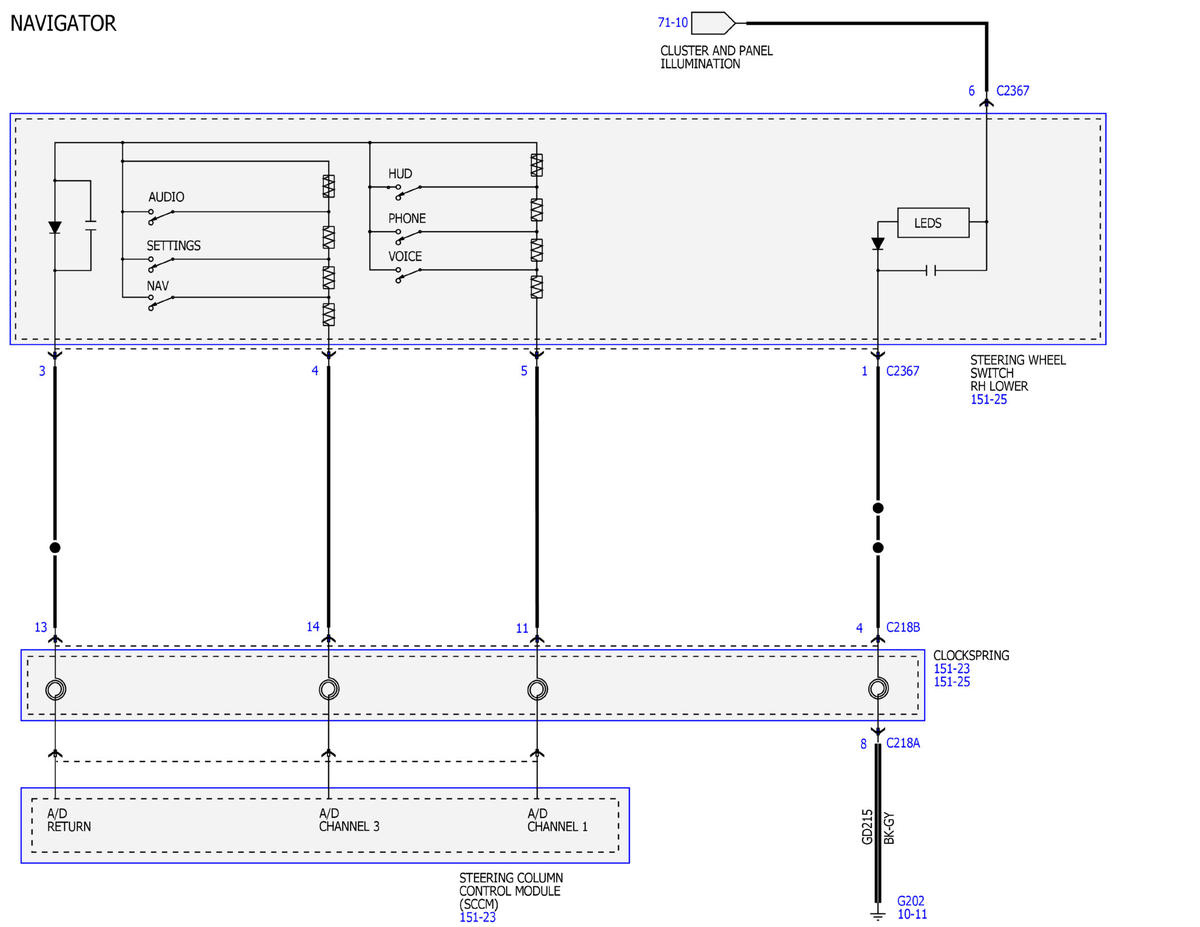

Fig 8: Instrument Cluster (8 Of 8)
GFDWR181893Courtesy of FORD MOTOR COMPANY
