Four Wheel Drive Systems

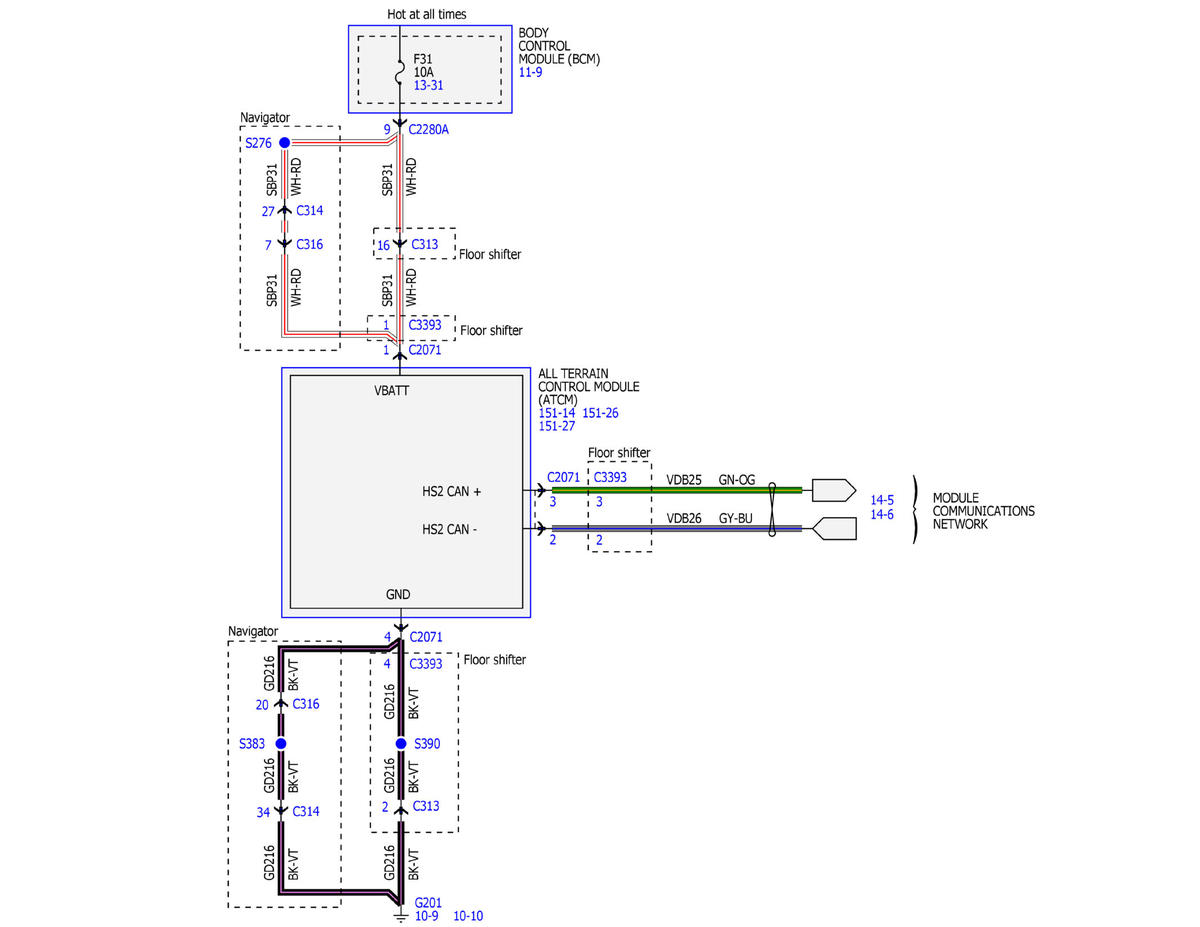

Fig 1: Four Wheel Drive Systems (1 Of 5)
GFDWR181862Courtesy of FORD MOTOR COMPANY

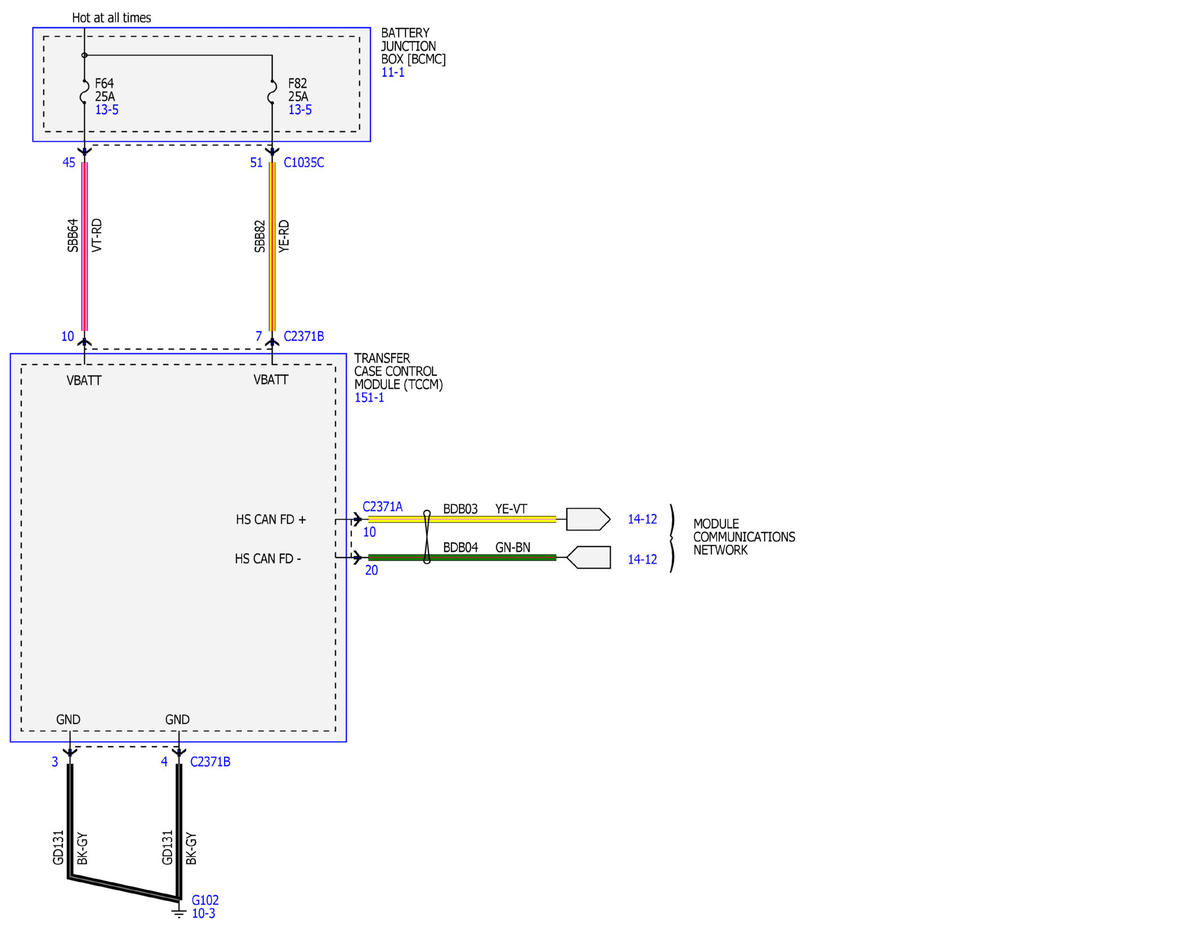

Fig 2: Four Wheel Drive Systems (2 Of 5)
GFDWR181863Courtesy of FORD MOTOR COMPANY

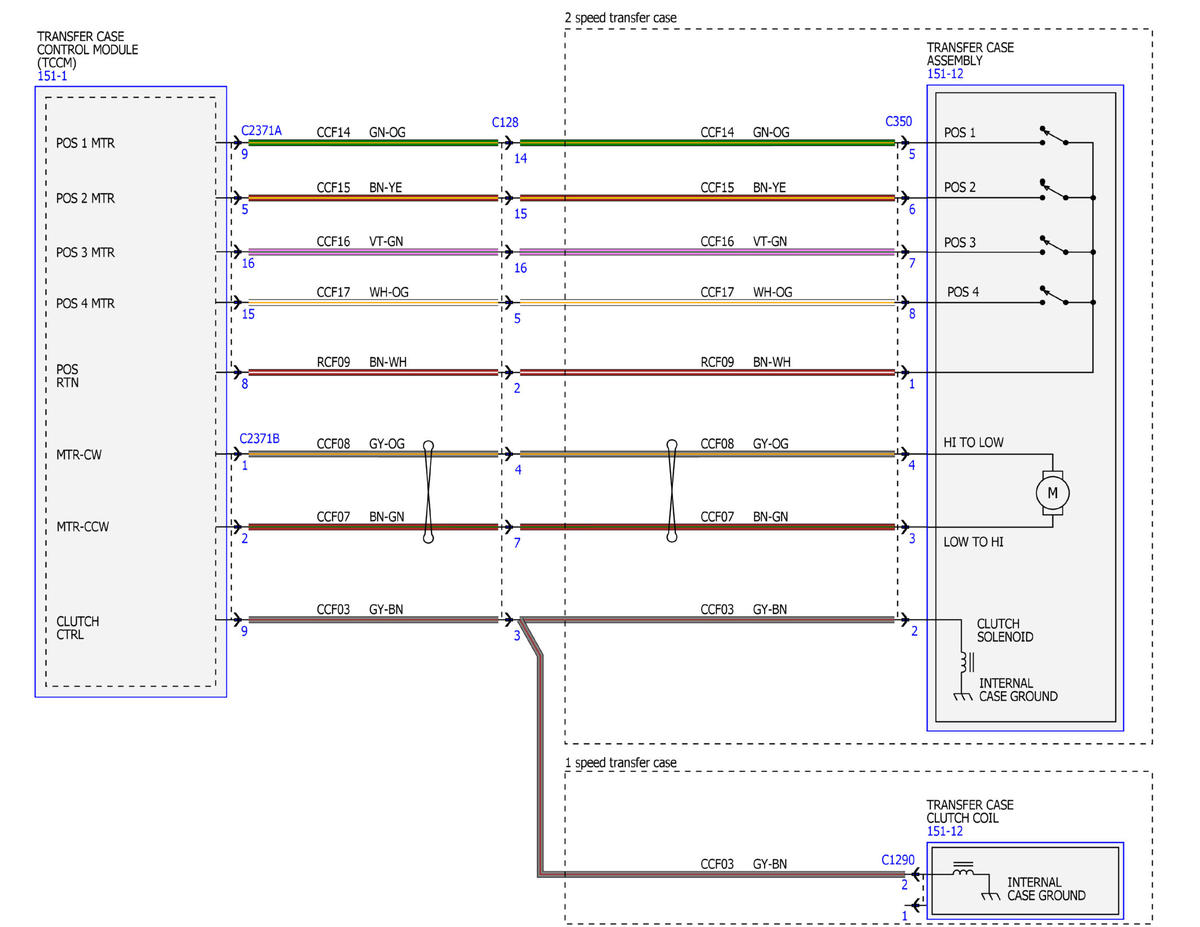

Fig 3: Four Wheel Drive Systems (3 Of 5)
GFDWR181864Courtesy of FORD MOTOR COMPANY

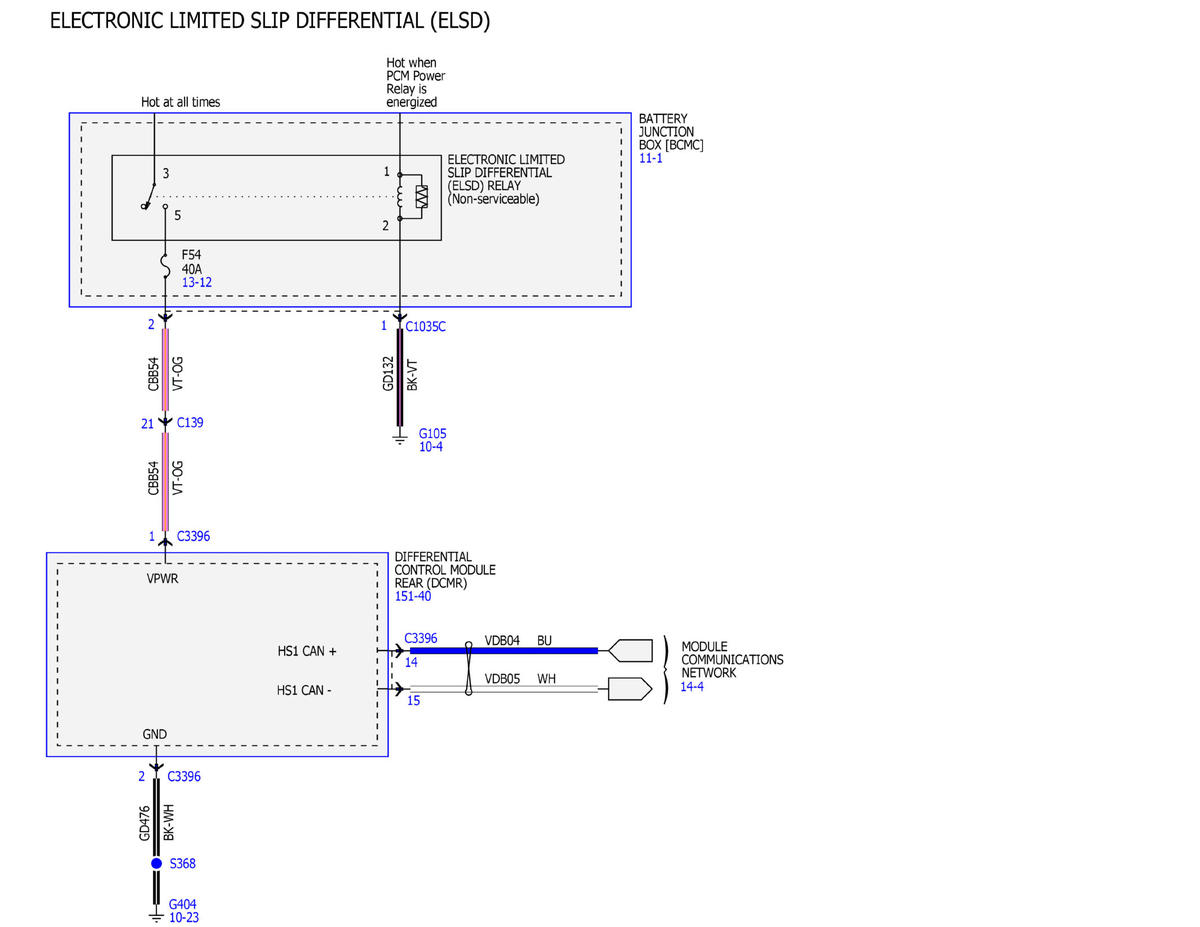

Fig 4: Four Wheel Drive Systems (4 Of 5)
GFDWR181865Courtesy of FORD MOTOR COMPANY

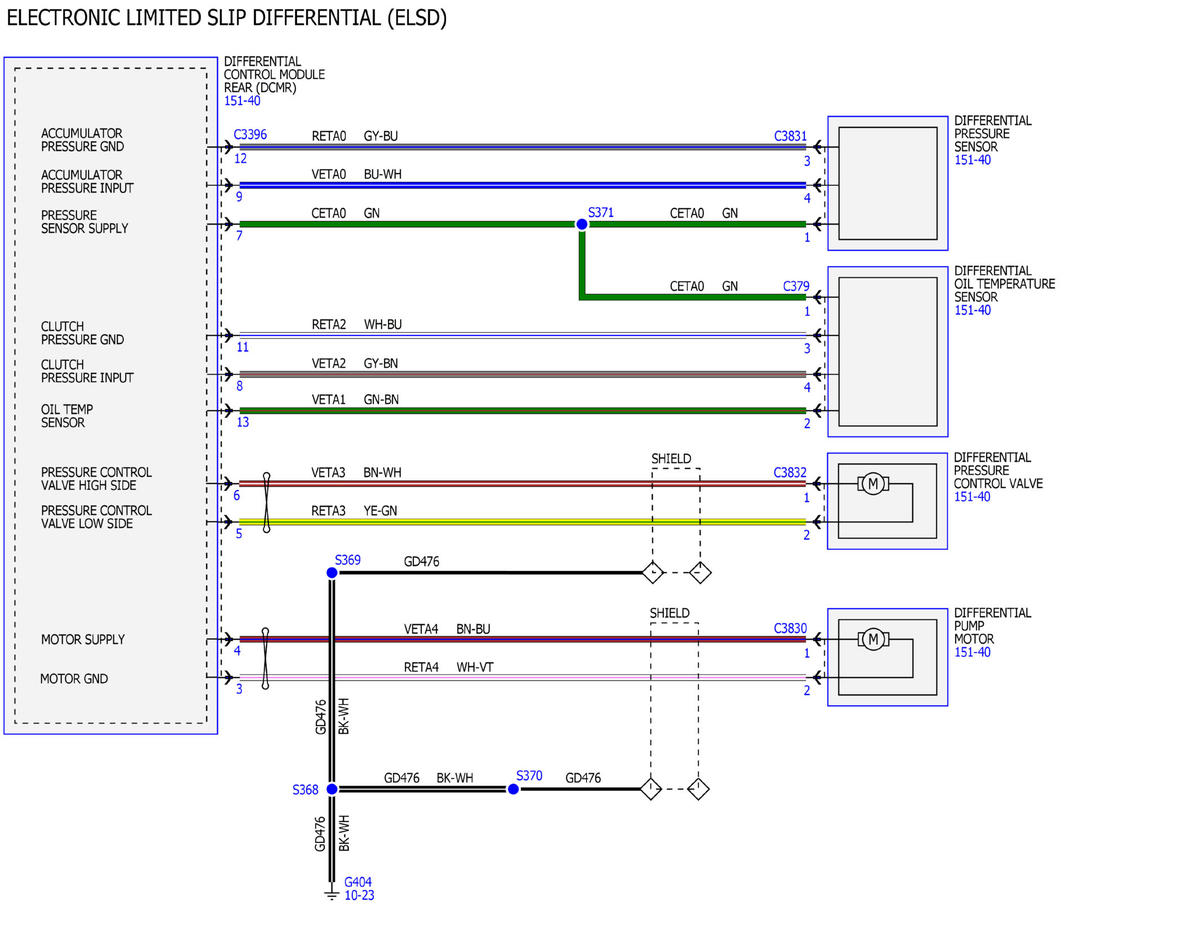

Fig 5: Four Wheel Drive Systems (5 Of 5)
GFDWR181866Courtesy of FORD MOTOR COMPANY
