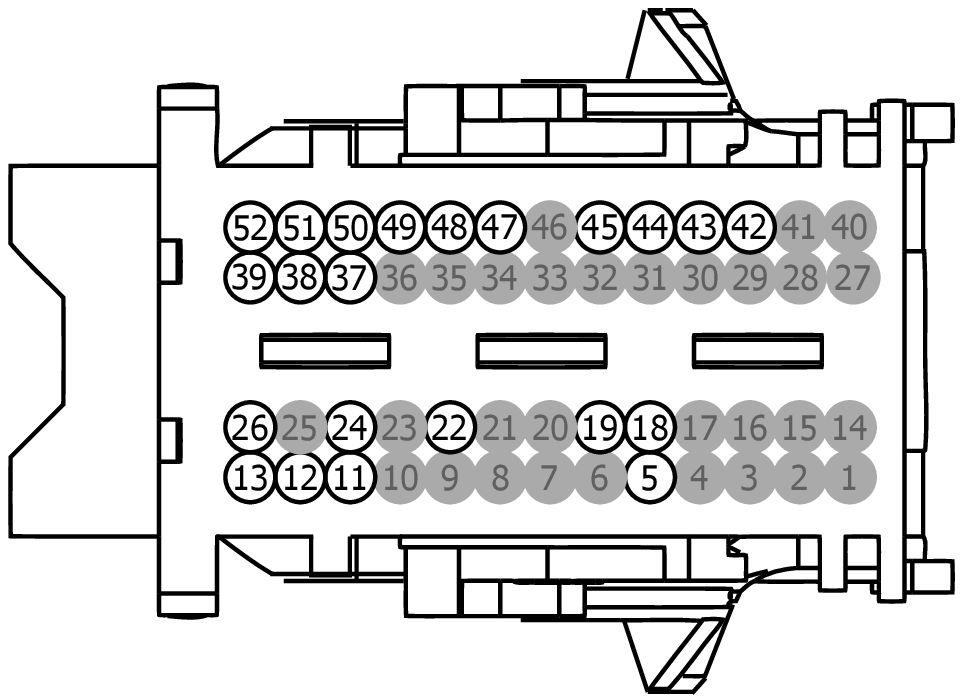

Connector End View C2280B - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280B	BODY CONTROL MODULE (BCM)	14401			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64
9U5T-14474-EB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	CPK35 (YE-OG)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 +	9U5T-14474-DB
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	CRT36 (BU-GY)	22	CTRL MOD. - WIRELESS CHARGE ENABLE/DISABLE	9U5T-14474-DB
12	CDC26 (GY-OG)	22	RELAY - STARTER INHIBIT	9U5T-14474-DB
13	VDN15 (BU-GY)	22	CTRL MOD. - LIN BUS # BCM 7	9U5T-14474-DB
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	RRH02 (GN-WH)	22	CTRL MOD. - SWITCH HORN	9U5T-14474-DB
19	CLS32 (BN-YE)	22	SWITCH - HAZARD	9U5T-14474-DB
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	VLF14 (BU-BN)	22	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) +	Expedition	9U5T-14474-DB
22	RLF14 (GY-BN)	22	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) -	Navigator	9U5T-14474-DB
23	*	*	Not Used	N/A
24	RLF14 (GY-BN)	22	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) -	Expedition	9U5T-14474-DB
24	VLF14 (BU-BN)	22	SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) +	Navigator	9U5T-14474-DB
25	*	*	Not Used	N/A
26	VPL56 (BU-GY)	22	RECEIVER - REMOTE RF	9U5T-14474-DB
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	*	*	Not Used	N/A
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
33	*	*	Not Used	N/A
34	*	*	Not Used	N/A
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	CDC34 (WH-OG)	20	SWITCH - IGNITION # RUN START	9U5T-14474-DB
38	CDC30 (BU-GY)	22	SWITCH - IGNITION # KEY IN	9U5T-14474-DB
39	CPK36 (VT-BN)	22	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED	9U5T-14474-DB
40	*	*	Not Used	N/A
41	*	*	Not Used	N/A
42	CR194 (VT-WH)	18	CTRL MOD. - EXTENDED POWER # RESTRAINTS CONTROL MODULE POWER	9U5T-14474-DB|9U5T-14474-EB
43	CCD29 (BU-GY)	22	SWITCH - SELECT DRIVE MODE UP +	9U5T-14474-DB
44	VLN37 (BU-WH)	22	CTRL MOD. - IP/SWITCH ILLUMINATION #2 (WHITE)	9U5T-14474-DB
45	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	9U5T-14474-DB
46	*	*	Not Used	N/A
47	CE436 (VT-OG)	22	CTRL MOD. -WAKE UP PCM	9U5T-14474-DB
48	CLS04 (YE-VT)	22	CTRL MOD. - LICENSE PLATE	9U5T-14474-DB
49	VDN17 (YE-VT)	22	CTRL MOD. - LIN BUS # BCM 9	Expedition	9U5T-14474-DB
49	VDN17 (GY)	22	CTRL MOD. - LIN BUS # BCM 9	Navigator	9U5T-14474-DB
50	CDC33 (VT-GN)	22	SWITCH - IGNITION # RUN ACCESSORY	9U5T-14474-DB
51	CDC35 (BU-WH)	22	SWITCH - IGNITION # START	9U5T-14474-DB
52	VDN01 (BU-WH)	22	CTRL MOD. - LIN BUS # BCM 1	9U5T-14474-DB
