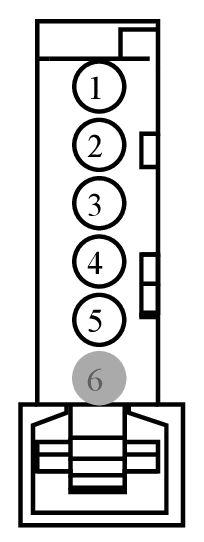

Connector End View C2035 - INSTRUMENT PANEL CONSOLE SWITCH ASSEMBLY 2

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2035	INSTRUMENT PANEL CONSOLE SWITCH ASSEMBLY 2	14401			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CH133 (YE-OG)	22	#N/A	9U5T-14474-LA
2	CCA15 (YE-GY)	22	SWITCH - IVD/TCS DISABLE	9U5T-14474-LA
3	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE	9U5T-14474-LA
4	CH433 (BU-GY)	22	#N/A	9U5T-14474-LA
4	CET59 (GY-VT)	22	SWITCH - HILL DESCENT CONTROL	Hill Descent	9U5T-14474-LA
4	CED43 (YE-OG)	22	#N/A	Trail Control	9U5T-14474-LA
4	CMP40 (WH-GN)	22	SWITCH - FRONT 360 CAMERA ENABLE	360 Camera	9U5T-14474-LA
5	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	9U5T-14474-LA
6	*	*	Not Used	N/A

Available Pigtail Kits

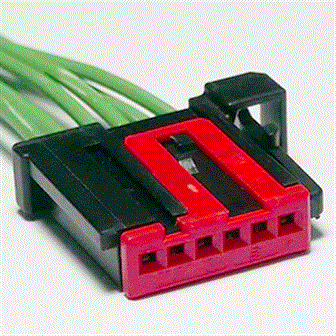

Pigtail Kit Part Number WPT-1650

Courtesy of FORD MOTOR COMPANY

Service Part Number:

LU2Z-14S411-AEA

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Switch - Engine Brake
• Switch - Hill Descent
• Switch - Lane Keeping System
• Switch - Multifunction
• Switch - Reverse Park Aid
• Switch - Start/Stop
