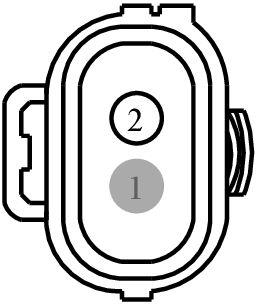

Connector End View C1290 - TRANSFER CASE CLUTCH COIL

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1290	TRANSFER CASE CLUTCH COIL	7C078			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1F1T-14421-FA	EU2Z-14421-FA	2.80

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	CCF03 (GY-BN)	20	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE CLUTCH (4WDC)	1F1T-14421-FA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1613

Service Part Number:

KU2Z-14S411-ABA

Gauge:

14

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Connector - Inline
• Module - Transfer Case Shift Control
