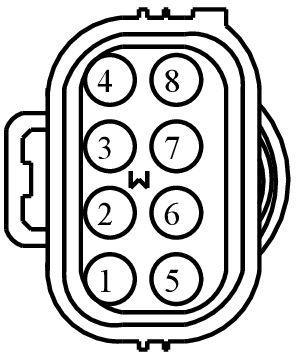

Connector End View C350 - TRANSFER CASE ASSEMBLY
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C350 | TRANSFER CASE ASSEMBLY | 7C078 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-BDA | EU2Z-14421-FA | 2.80 |
| 1F1T-14421-FA | EU2Z-14421-FA | 2.80 |
| 97BG-14421-BEA | EU2Z-14421-FA | 2.80 |
| 1F1T-14421-GA | EU2Z-14421-FA | 2.80 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | RCF09 (BN-WH) | 20 | CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE MOTOR POSITION RETURN (4WDPRTN) | 97BG-14421-BDA|1F1T-14421-FA | ||||
| 2 | CCF03 (GY-BN) | 20 | CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE CLUTCH (4WDC) | 97BG-14421-BDA|1F1T-14421-FA | ||||
| 3 | CCF07 (BN-GN) | 18 | CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE MOTOR CCW (4WDM) | 97BG-14421-BEA|1F1T-14421-GA | ||||
| 4 | CCF08 (GY-OG) | 18 | CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE MOTOR CW (4WDM) | 97BG-14421-BEA|1F1T-14421-GA | ||||
| 5 | CCF14 (GN-OG) | 18 | SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 1 (4WDP) | 97BG-14421-BEA|1F1T-14421-GA | ||||
| 6 | CCF15 (BN-YE) | 18 | SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 2 (4WDP) | 97BG-14421-BEA|1F1T-14421-GA | ||||
| 7 | CCF16 (VT-GN) | 18 | SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 3 (4WDP) | 97BG-14421-BEA|1F1T-14421-GA | ||||
| 8 | CCF17 (WH-OG) | 18 | SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 4 (4WDP) | 97BG-14421-BEA|1F1T-14421-GA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1084
Service Part Number:
AU2Z-14S411-AEA
Gauge:
12
Pin material:
Tin (greased)
Cavities:
8
Vehicle Uses:
- Connector - Inline
