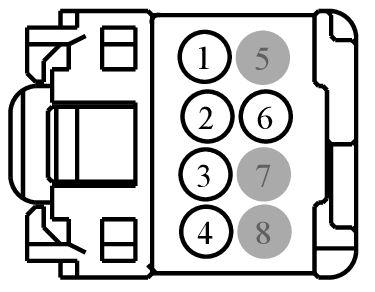

Connector End View C3393 - ALL TERRAIN CONTROL MODULE (ATCM)
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3393 | ALL TERRAIN CONTROL MODULE (ATCM) | 14B079 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-LA | DU2Z-14474-BA | 0.64 |
| 3F2T-14474-RA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | SBP31 (WH-RD) | 22 | FUSE - 31 OR CIRCUIT BREAKER | 9U5T-14474-LA | ||||
| 2 | VDB26 (GY-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | 9U5T-14474-LA|3F2T-14474-RA | ||||
| 3 | VDB25 (GN-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | 9U5T-14474-LA|3F2T-14474-RA | ||||
| 4 | GD216 (BK-VT) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | 3F2T-14474-RA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | CMP18 (GN-BN) | 22 | SWITCH - PARKING AID | 9U5T-14474-LA | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-995
Service Part Number:
3U2Z-14S411-BGB
Gauge:
18
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Lamp - Dimmer Switch
- Switch - 4x4 Control
- Switch - Adjustable Pedal
- Switch - Center Stack (Multipurpose)
- Switch - Dimmer
- Switch - Hazard Warning
- Switch - Moon Roof/Sun Roof
- Switch - Multifunction
- Switch - Multifunction (Wiper)
- Switch - Seat (3rd Row)
- Switch - Third Row Power Folding Seat
- Switch - Traction Control
