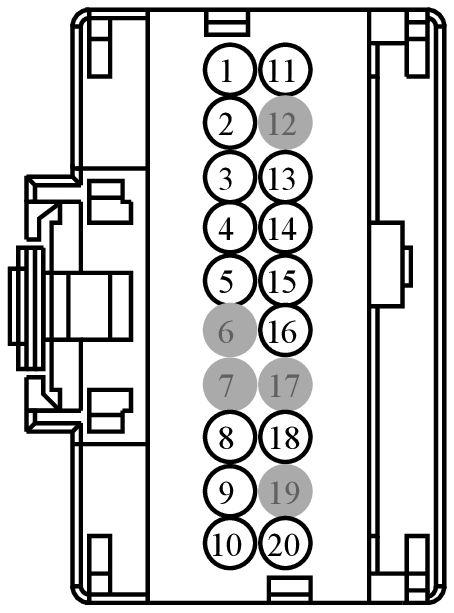

Connector End View C2371A - TRANSFER CASE CONTROL MODULE (TCCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2371A	TRANSFER CASE CONTROL MODULE (TCCM)	14290			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CCF43 (GY-BU)	22	#N/A	8U5T-14474-BB
2	CCF40 (YE-BU)	22	#N/A	8U5T-14474-BB
3	CCF41 (GN-WH)	22	#N/A	8U5T-14474-BB
4	CCF44 (VT-BN)	22	#N/A	8U5T-14474-BB
5	CCF15 (BN-YE)	20	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 2 (4WDP)	8U5T-14474-BB
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	RCF09 (BN-WH)	20	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE MOTOR POSITION RETURN (4WDPRTN)	8U5T-14474-BB
9	CCF14 (GN-OG)	20	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 1 (4WDP)	8U5T-14474-BB
10	BDB03 (YE-VT)	22	#N/A	8U5T-14474-BB
11	RCF40 (YE-GN)	22	#N/A	8U5T-14474-BB
12	*	*	Not Used	N/A
13	RCF43 (BN-YE)	22	#N/A	8U5T-14474-BB
14	CCF42 (BU-OG)	22	#N/A	8U5T-14474-BB
15	CCF17 (WH-OG)	20	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 4 (4WDP)	8U5T-14474-BB
16	CCF16 (VT-GN)	20	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 3 (4WDP)	8U5T-14474-BB
17	*	*	Not Used	N/A
18	CCF45 (WH-BN)	22	#N/A	8U5T-14474-BB
19	*	*	Not Used	N/A
20	BDB04 (GN-BN)	22	#N/A	8U5T-14474-BB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1542

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-YA

Gauge:

20

Pin material:

Silver

Cavities:

20

Vehicle Uses:

• Control Head - Manual Climate
• Module - Driver Door
• Module - Electronic Automatic Temperature Control (EATC)
• Module - Front Interface
• Module - Passenger Door
