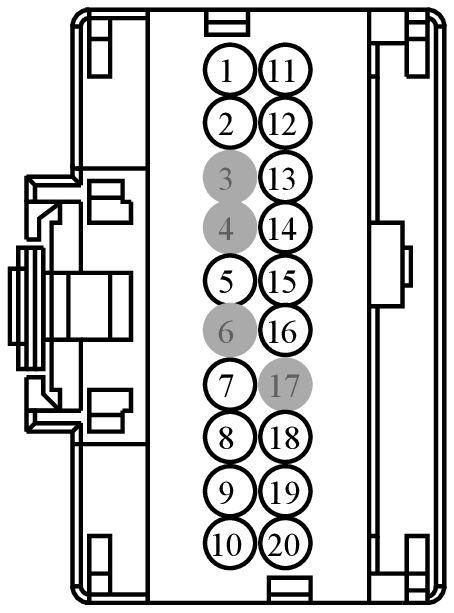

Connector End View C242B - IMAGE PROCESSING MODULE A (IPMA)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C242B	IMAGE PROCESSING MODULE A (IPMA)	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
DU5T-14474-EAB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CMF14 (GY)	22	#N/A	DU5T-14474-EAB
2	RMF17 (BU-BN)	22	#N/A	DU5T-14474-EAB
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	RMF16 (VT-BN)	22	#N/A	DU5T-14474-EAB
6	*	*	Not Used	N/A
7	BDB04 (GN-BN)	22	#N/A	DU5T-14474-EAB
8	BDB03 (YE-OG)	22	#N/A	DU5T-14474-EAB
9	RMF14 (GN-WH)	22	#N/A	DU5T-14474-EAB
10	CMP40 (WH-GN)	22	SWITCH - FRONT 360 CAMERA ENABLE	DU5T-14474-EAB
11	CMF17 (VT-GY)	22	#N/A	DU5T-14474-EAB
12	VMF13 (YE-BU)	22	#N/A	DU5T-14474-EAB
13	VMF12 (GN-VT)	22	#N/A	DU5T-14474-EAB
14	CMF16 (YE-GN)	22	#N/A	DU5T-14474-EAB
15	VMF13 (YE-BU)	22	#N/A	DU5T-14474-EAB
16	VMF12 (GN-VT)	22	#N/A	DU5T-14474-EAB
17	*	*	Not Used	N/A
18	CMF14 (GY)	22	#N/A	DU5T-14474-EAB
19	VMF05 (GY-BU)	22	CTRL MOD. - FORWARD SENSING # FORWARD LOOKING RADAR CAN BUS LOW	DU5T-14474-EAB
20	VMF04 (BN-BU)	22	CTRL MOD. - FORWARD SENSING # FORWARD LOOKING RADAR CAN BUS HIGH	DU5T-14474-EAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1542

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-YA

Gauge:

20

Pin material:

Silver

Cavities:

20

Vehicle Uses:

• Control Head - Manual Climate
• Module - Driver Door
• Module - Electronic Automatic Temperature Control (EATC)
• Module - Front Interface
• Module - Passenger Door
