Instrument Panel Cluster (IPC) Lens: Removal

All vehicles

1. Remove the IPC. Refer to: Instrument Panel Cluster (IPC) .

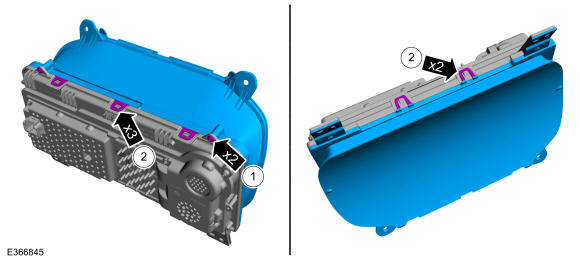

   High Series Cluster

2. 1. Remove the screws.
   2. Release the tabs and remove the IPC lens.

   Courtesy of FORD MOTOR COMPANY

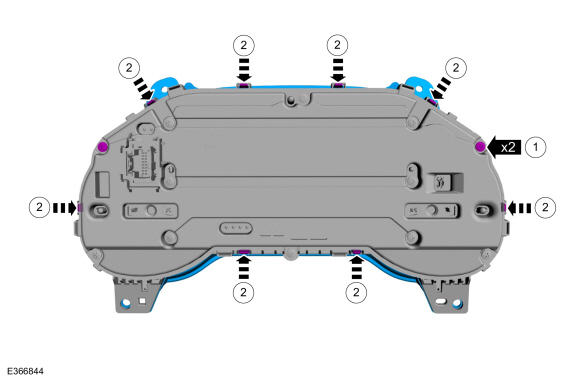

   Full TFT/LCD Instrument Cluster

3. 1. Remove the screws.
   2. Release the tabs and remove the IPC lens.

Courtesy of FORD MOTOR COMPANY
