Information and Entertainment System - Component Location
NOTE:
The available speaker configurations are shown first. The remaining hidden audio and SYNC system components and various cable routings follow the speaker configurations.
NOTE:
Some vehicles may not be equipped with all the optional components shown below.

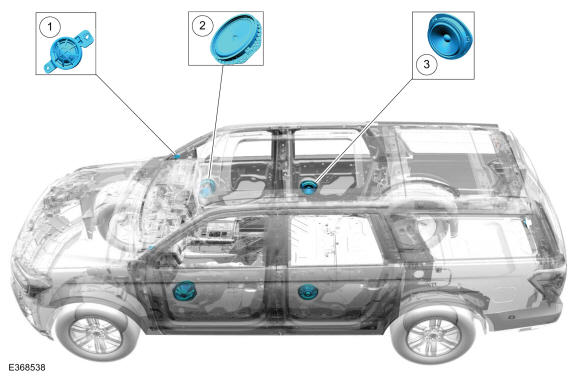

6 Speaker System
| Item | Description |
|---|---|
| 1 | Left/right A-pillar speakers |
| 2 | Left/right front door speakers |
| 3 | Left/right rear door speakers |

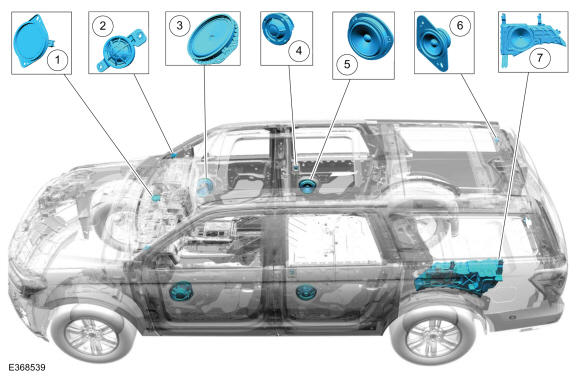

12 Speaker System
| Item | Description |
|---|---|
| 1 | Instrument panel center speaker |
| 2 | Left/right A-pillar speakers |
| 3 | Left/right front door speakers |
| 4 | Left/right rear door tweeter speakers |
| 5 | Left/right rear door woofer speakers |
| 6 | Left/right D-pillar speakers |
| 7 | Subwoofer speaker |

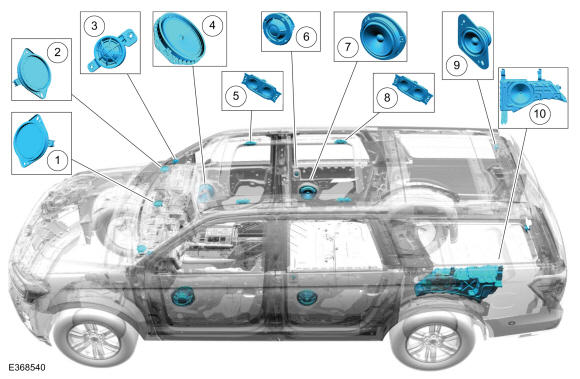

22 Speaker System
| Item | Description |
|---|---|
| 1 | Instrument panel center speaker |
| 2 | Instrument panel left/right speakers |
| 3 | Left/right A-pillar speakers |
| 4 | Left/right front door speakers |
| 5 | Left/right front overhead speakers |
| 6 | Left/right rear door tweeter speakers |
| 7 | Left/right rear door woofer speakers |
| 8 | Left/right rear overhead speakers |
| 9 | Left/right D-pillar speakers |
| 10 | Subwoofer speaker |

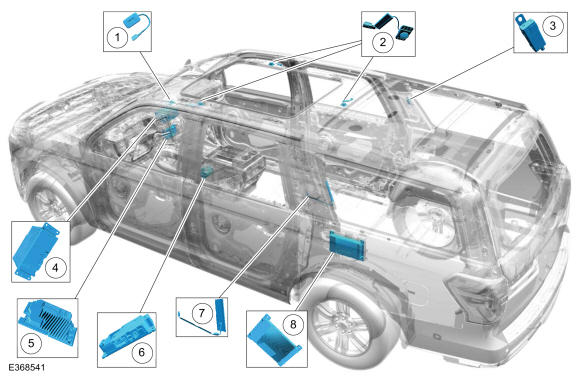

Audio/SYNC System Hidden Components
| Item | Description |
|---|---|
| 1 | Voice microphone |
| 2 | ANC microphones |
| 3 | AM/ FM1/ DAB antenna amplifier |
| 4 | ACM |
| 5 | APIM |
| 6 | TCU |
| 7 | Secondary cellular (TCU) antenna |
| 8 | DSP |

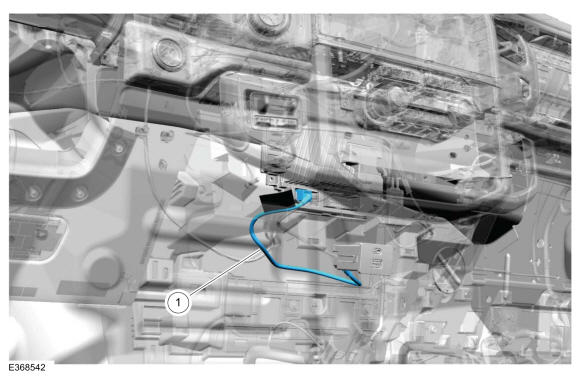

USB Cable Routing - Vehicles Not Equipped With A Floor Console
| Item | Description |
|---|---|
| 1 | USB cable |

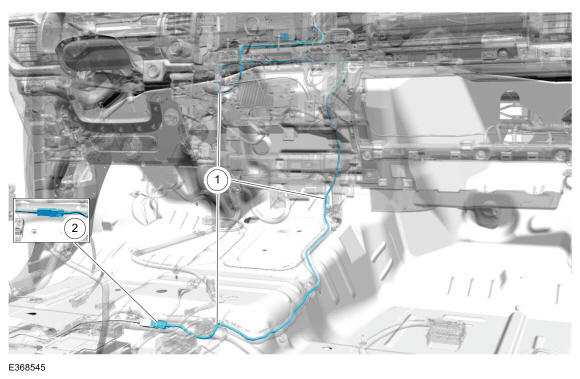

USB Cable Routing - Vehicles Equipped With A Floor Console
| Item | Description |
|---|---|
| 1 | Front USB cable |
| 2 | Rear USB cable |

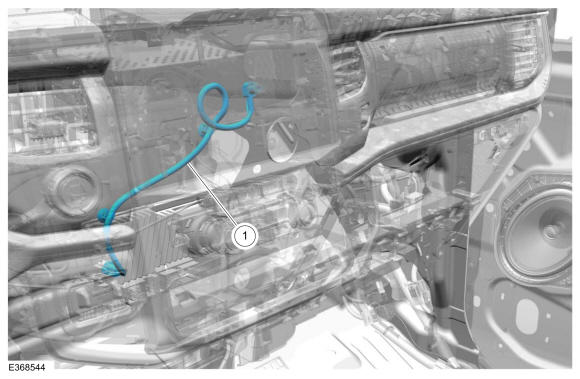

LVDS Cable Routing (12 inch display unit shown below, 15 inch display unit similar)
| Item | Description |
|---|---|
| 1 | LVDS cable |

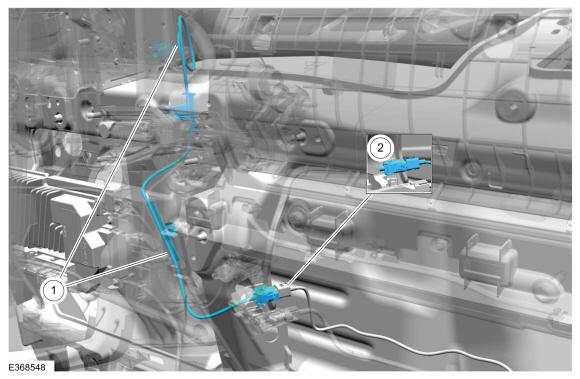

Front Automobile Audio Bus (A2B) Cable Routing
| Item | Description |
|---|---|
| 1 | Front Automobile Audio Bus (A2B) cable |
| 2 | Front Automobile Audio Bus (A2B) cable in-line connection |

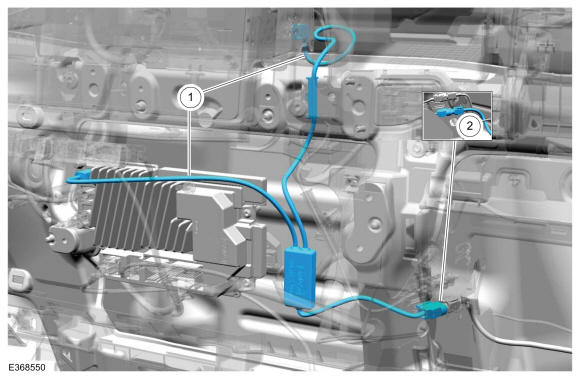

Center Automobile Audio Bus (A2B) Cable Routing
| Item | Description |
|---|---|
| 1 | Center Automobile Audio Bus (A2B) cable |
| 2 | Front Automobile Audio Bus (A2B) cable in-line connection |
| 3 | Rear Automobile Audio Bus (A2B) cable in-line connection |

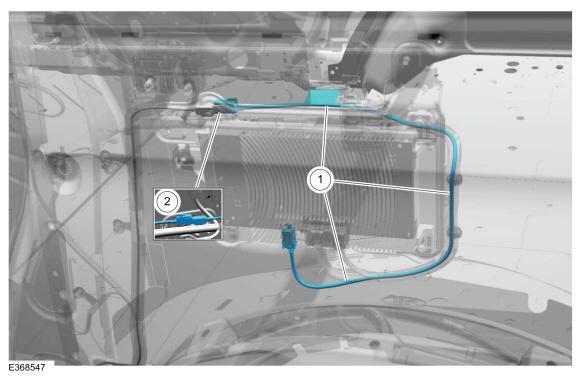

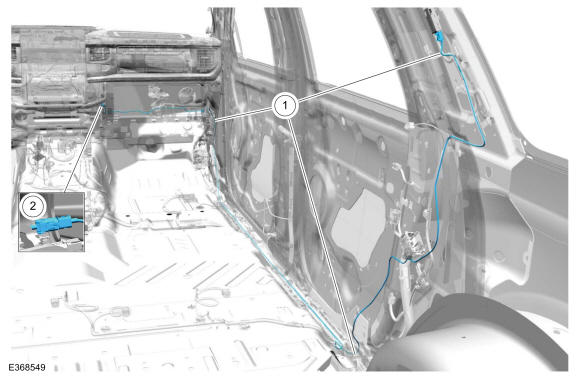

Rear Automobile Audio Bus (A2B) Cable Routing
| Item | Description |
|---|---|
| 1 | Rear Automobile Audio Bus (A2B) cable |
| 2 | Rear Automobile Audio Bus (A2B) cable in-line connection |

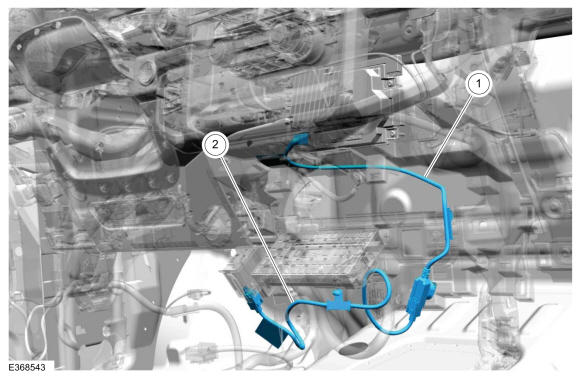

Front AM/ FM1/ DAB Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Front AM/ FM1/ DAB antenna cable |
| 2 | AM/ FM1/ DAB antenna cable in-line connection |

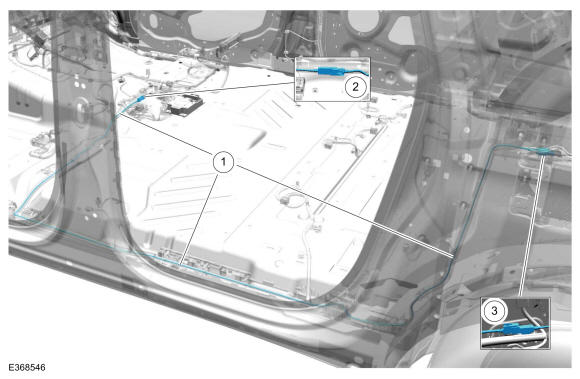

Rear AM/ FM1/ DAB Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Rear AM/ FM1/ DAB antenna cable |
| 2 | AM/ FM1/ DAB antenna cable in-line connection |
Lower GPS/Satellite Radio Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Lower GPS/satellite radio antenna cable |
| 2 | GPS/satellite radio antenna cable in-line connection |

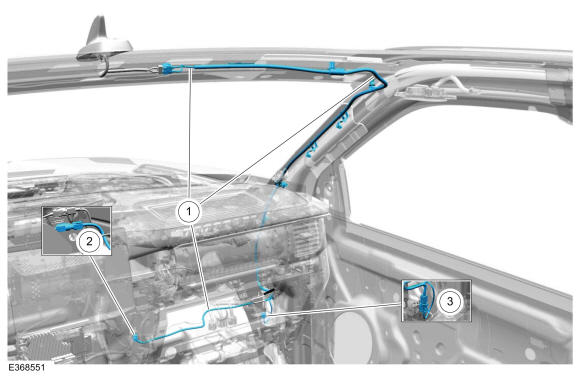

Upper GPS/Satellite Radio Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Upper GPS/satellite radio antenna cable |
| 2 | GPS/satellite radio antenna cable in-line connection |
| 3 | Primary cellular antenna cable in-line connection |

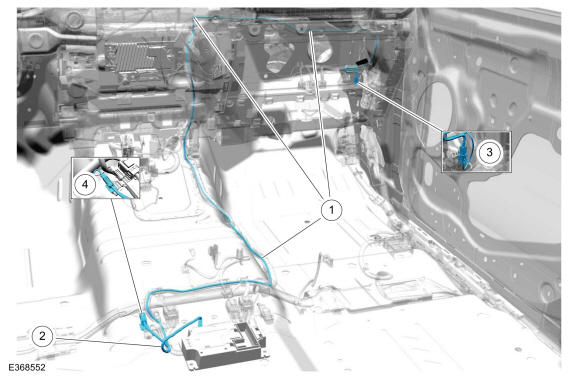

Main Primary and Secondary Cellular Antenna Cables Routing
| Item | Description |
|---|---|
| 1 | Primary cellular antenna cable routing |
| 2 | Secondary cellular antenna cable routing |
| 3 | Primary cellular antenna cable in-line connection |
| 4 | Secondary cellular antenna cable in-line connection |

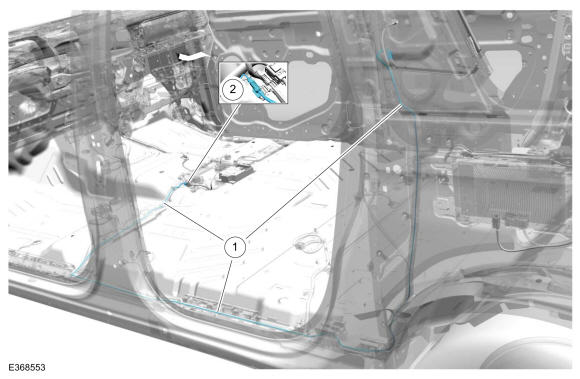

Rear Secondary Cellular Antenna Cables Routing
| Item | Description |
|---|---|
| 1 | Secondary cellular antenna cable |
| 2 | Secondary cellular antenna cable in-line connection |
