Instrument Panel: Removal

All vehicles

1. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
2. Remove both A-pillar trim panels. Refer to: A-Pillar Trim Panel .
3. Remove both front seats. Refer to: Front Seat .

   Vehicles with floor console

4. Remove the floor console. Refer to: Floor Console .

   Vehicles without floor console

5. Remove the bolts and the instrument panel lower trim panel.

   Torque: 22 lb.in (2.5 Nm)

   Courtesy of FORD MOTOR COMPANY

   All vehicles

6. Release the clips and remove the RH instrument panel finish panel. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

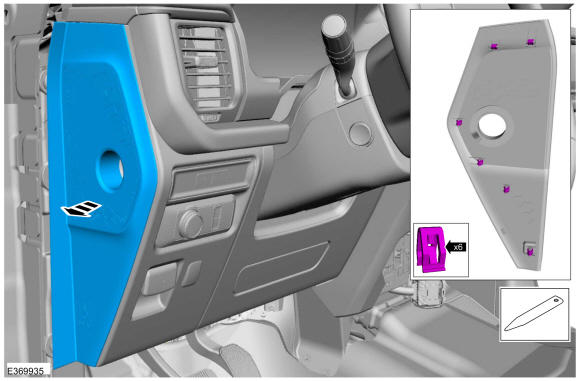

7. Release the clips and remove the LH instrument panel finish panel. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

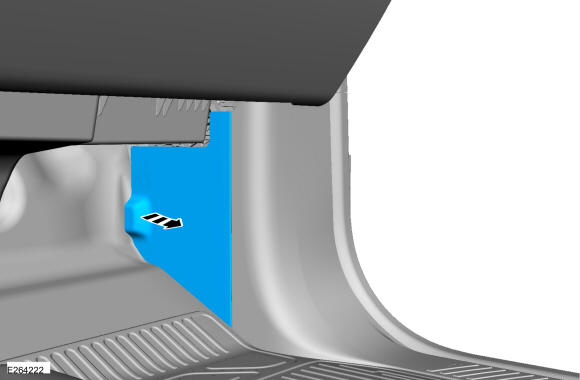

8. Remove the lower RH access door.

   Courtesy of FORD MOTOR COMPANY

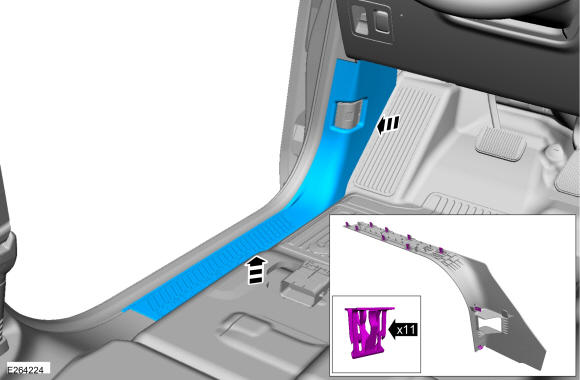

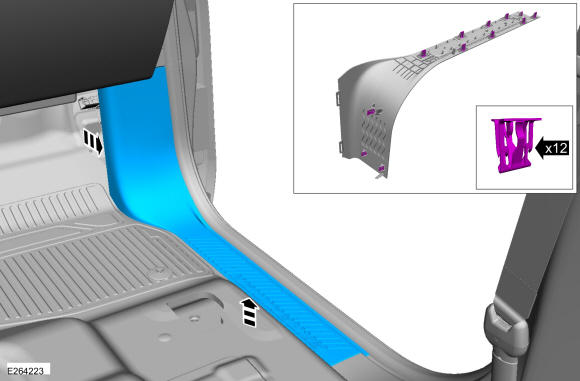

9. Release the clips and remove the RH scuff plate.

   Courtesy of FORD MOTOR COMPANY

10. Release the clips and remove the LH scuff plate.

    Courtesy of FORD MOTOR COMPANY

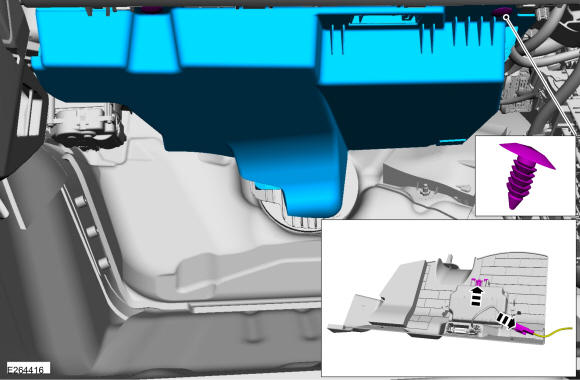

11. Remove the push pin and the remove RH insulation panel.
    • Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

12. Remove the glove compartment. Refer to: Glove Compartment .

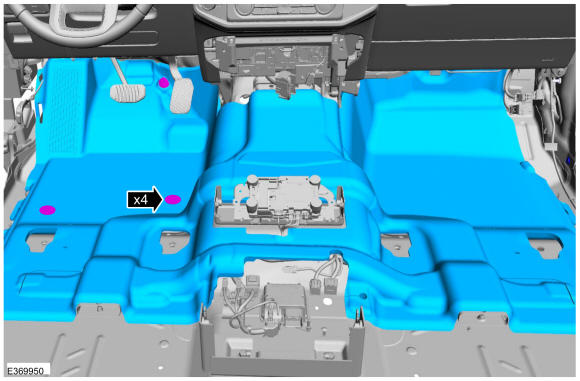

13. Release the front floor covering retainers and remove the front floor covering.

    Courtesy of FORD MOTOR COMPANY

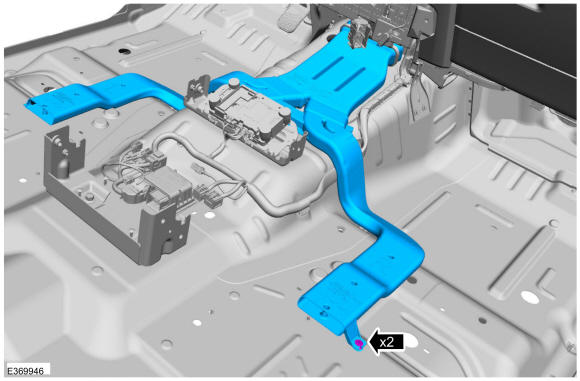

14. Remove the rear HVAC duct retainers and remove the duct.

    Courtesy of FORD MOTOR COMPANY

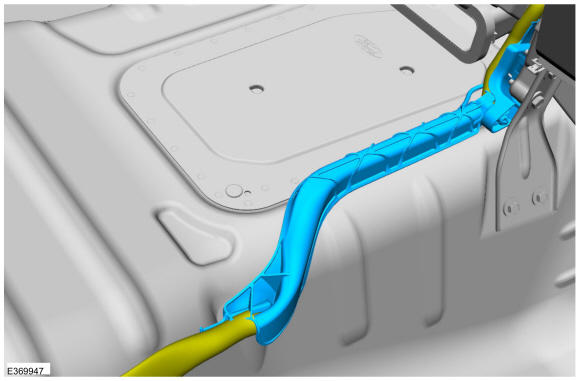

15. Remove the harness cover.

    Courtesy of FORD MOTOR COMPANY

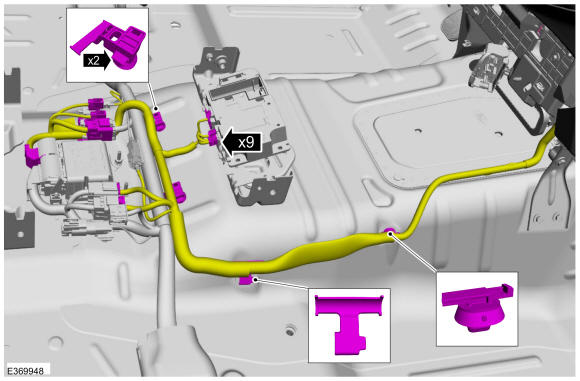

16. Disconnect the electrical connectors, detach the harness retainers and position the harness aside.

    Courtesy of FORD MOTOR COMPANY

17. Disconnect the lower RH instrument panel electrical connectors and detach the harness retainers.

    Courtesy of FORD MOTOR COMPANY

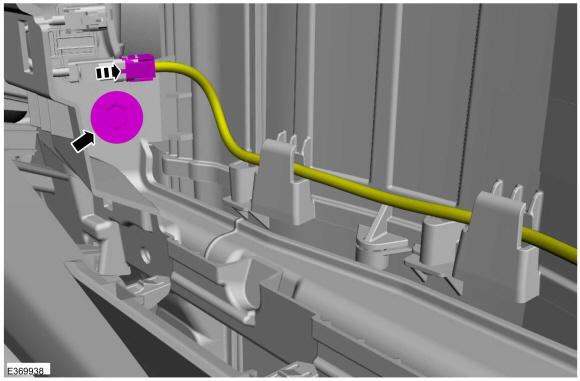

18. Disconnect the electrical connector and remove the bolt at the LH glove compartment opening.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

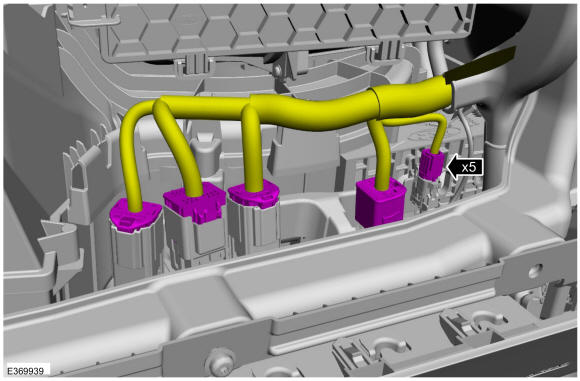

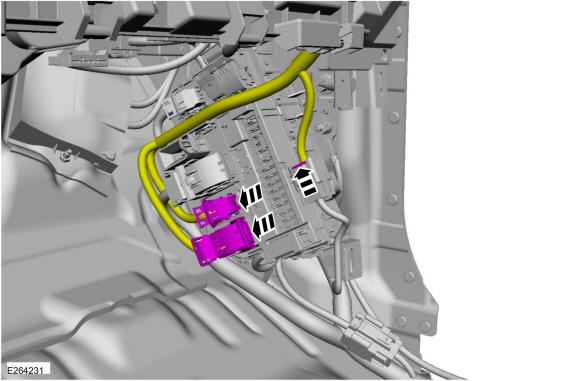

19. Disconnect the electrical connectors at the RH glove compartment opening.

    Courtesy of FORD MOTOR COMPANY

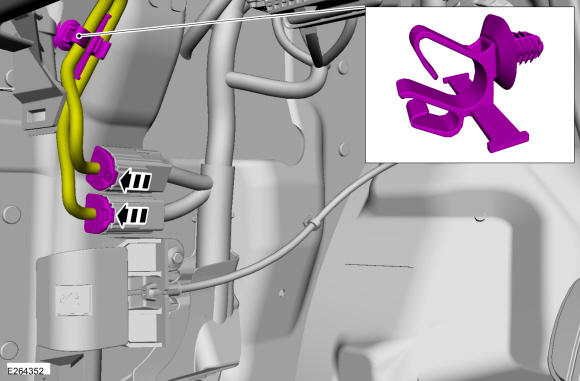

20. Disconnect the lower LH instrument panel electrical connectors and detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

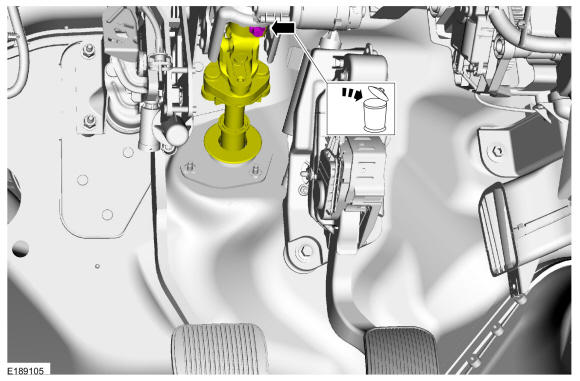

21. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
    NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected or damage to the clockspring may result.

    Remove and discard the bolt and disconnect the upper steering column shaft.

    Torque: 21 lb.ft (28 Nm)

    Courtesy of FORD MOTOR COMPANY

22. Release the clips and remove the instrument panel defroster panel.
    • NOTE: If equipped.

      Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

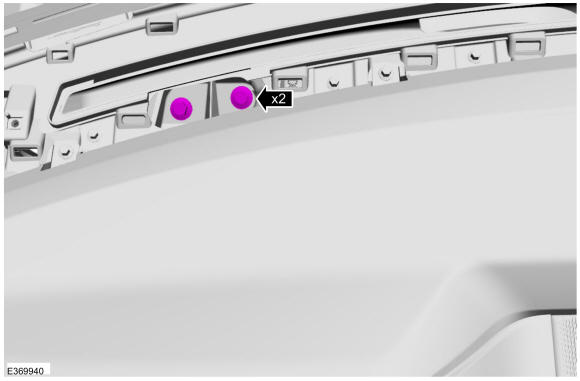

23. Remove the LH upper instrument panel bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

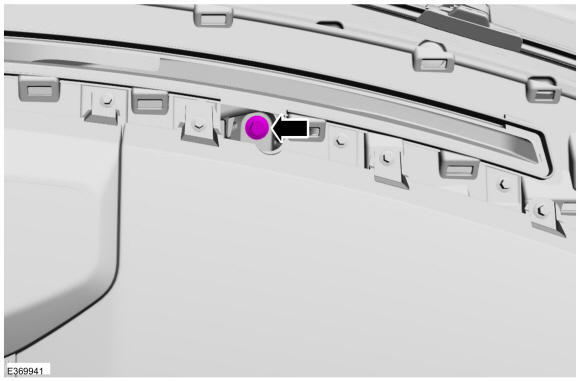

24. Remove the RH upper instrument panel bolt.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

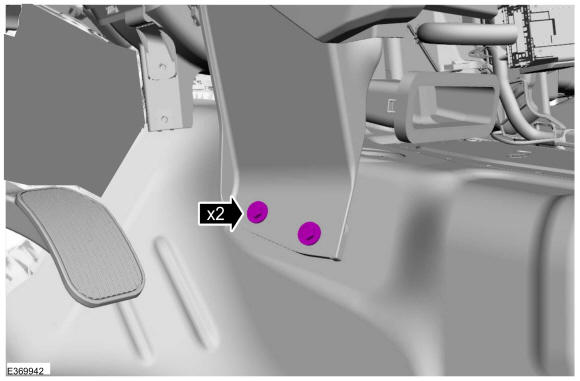

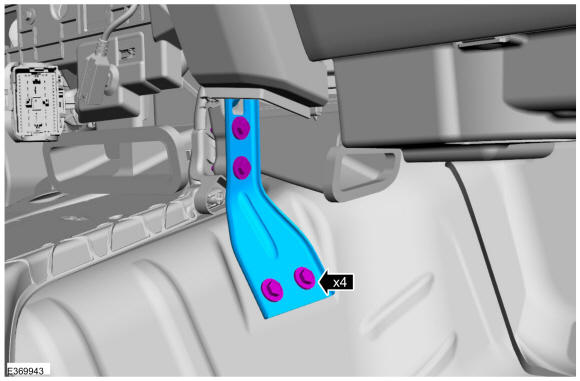

25. Remove the LH instrument panel center support bolts.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

26. Remove the RH instrument panel center support bolts and bracket.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

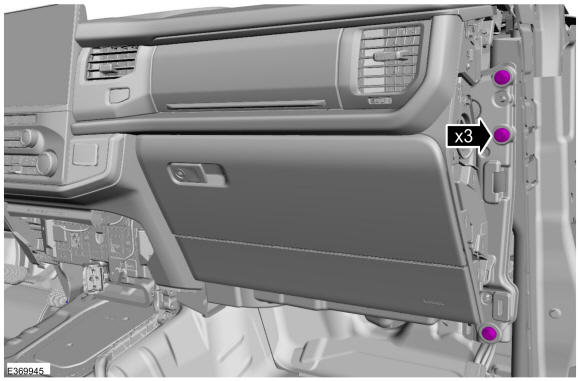

27. NOTE: Leave one bolt finger tight to hold the instrument panel prior to removal.

    Remove the bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

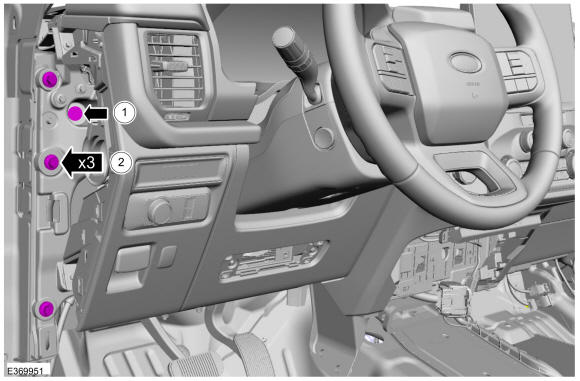

28. NOTE: Leave one bolt finger tight to hold the instrument panel prior to removal.
    1. Remove the bolt.

       Torque: 18 lb.ft (25 Nm)

    2. Remove the bolts.

       Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

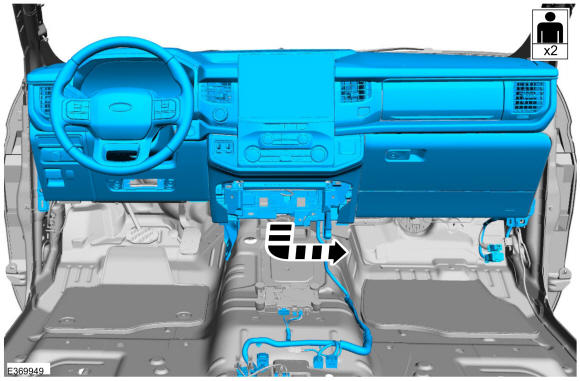

29. NOTE: To avoid damaging the instrument panel, and assistant is required when carrying out this step.
    NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connector and wiring and not hindered before removing the instrument panel or damage to the components may occur.

    Rotate the instrument panel face down and remove through the RH front door opening.

Courtesy of FORD MOTOR COMPANY
