Instrument Panel Upper Section: Removal

All vehicles

1. Remove the A-pillar trim panels. Refer to: A-Pillar Trim Panel .

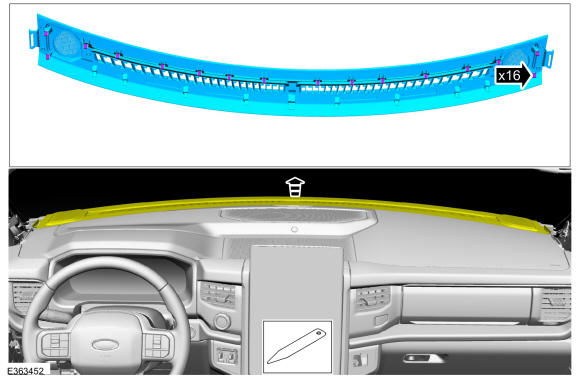

2. Release the clips and remove the instrument panel defroster panel.
   • Disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with floor console

3. Remove the floor console. Refer to: Floor Console .

   Vehicles without floor console

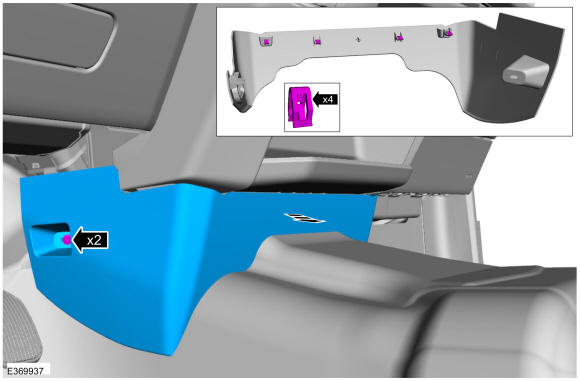

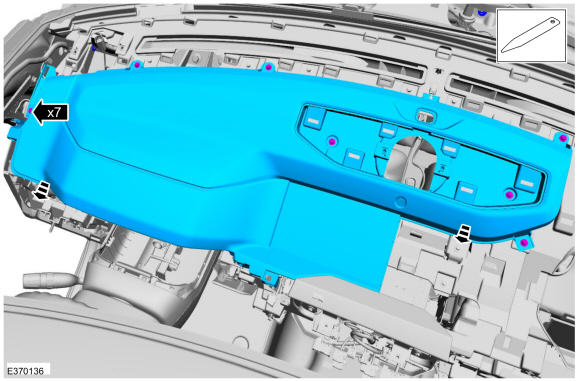

4. Remove the screws, release the retainers and remove the lower trim panel.

   Torque: 22 lb.in (2.5 Nm)

   Courtesy of FORD MOTOR COMPANY

   Vehicles with 12.3 inch screen

5. Release the clips and remove the information and entertainment display unit fastener cover. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

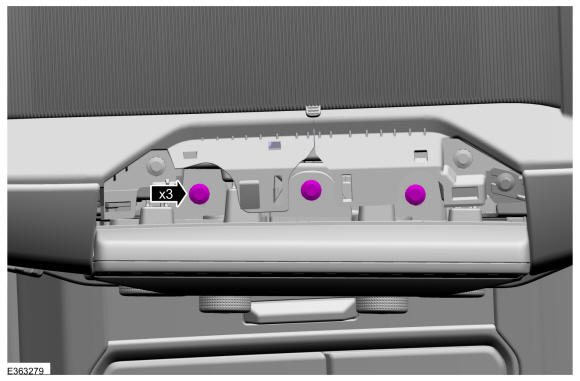

6. Remove the bolts.

   Torque: 106 lb.in (12 Nm)

   Courtesy of FORD MOTOR COMPANY

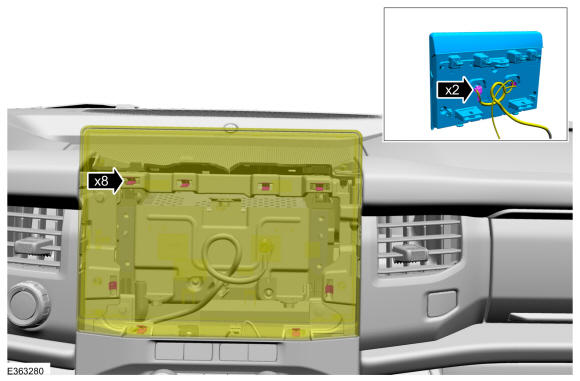

7. Release the clips and remove the center display screen.
   • Disconnect the electrical connectors.

   Courtesy of FORD MOTOR COMPANY

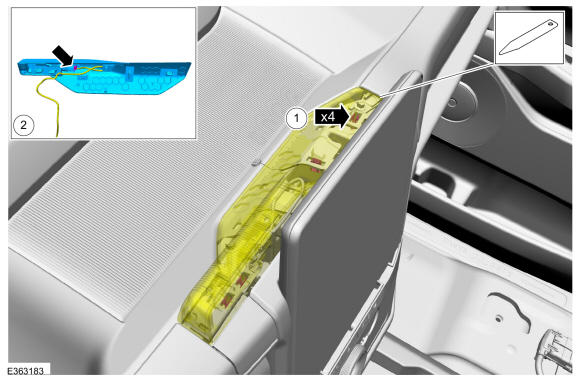

8. Release the clips, position the start/stop switch bezel aside.
   • Disconnect the electrical connector and remove the start/stop switch bezel.

   Courtesy of FORD MOTOR COMPANY

9. Release the clips, separate the trim pin, and remove the RH instrument panel trim panel. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

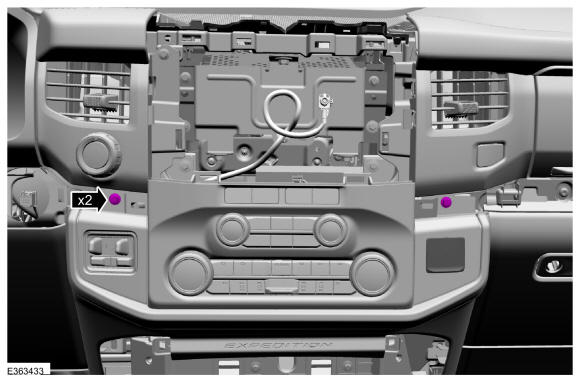

10. Remove the bolts.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

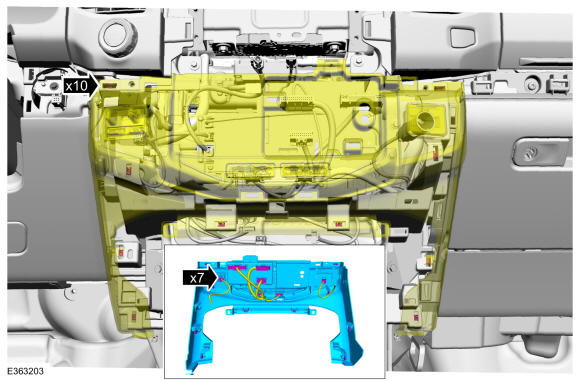

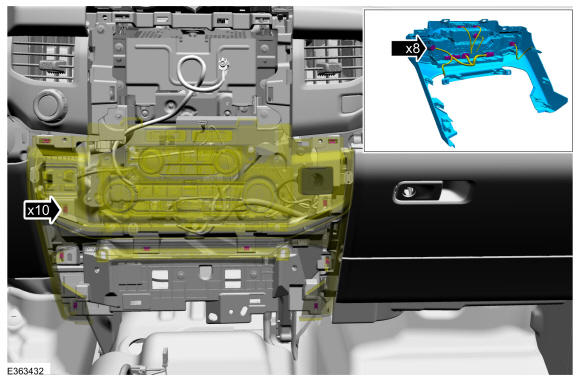

11. Release the clips and remove the lower center stack trim panel.
    • Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

    Vehicles with 15 inch screen

12. Remove the information and entertainment display unit fastener cover.
    1. Release the clips. Use the General Equipment: Interior Trim Remover
    2. If equipped.

    Courtesy of FORD MOTOR COMPANY

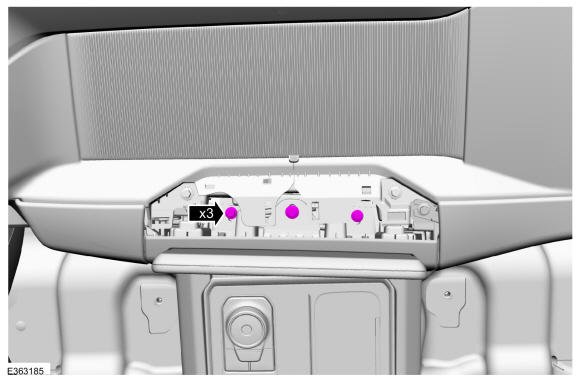

13. Remove the bolts.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

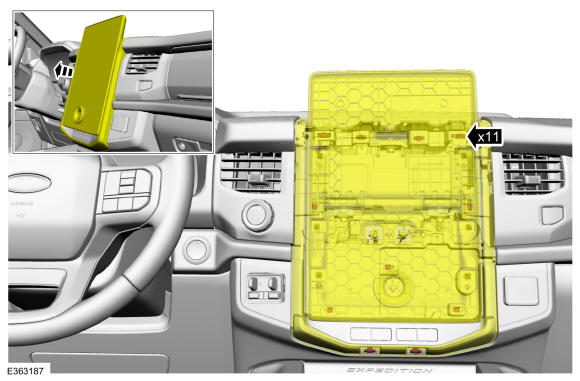

14. Release the clips and remove the center display screen and bracket as an assembly.

    Courtesy of FORD MOTOR COMPANY

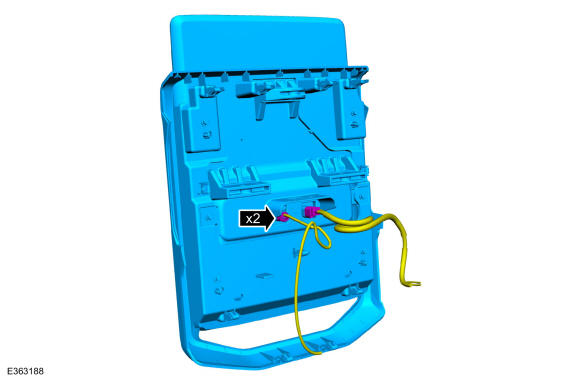

15. Disconnect the electrical connectors and remove the center display screen and bracket as an assembly.

    Courtesy of FORD MOTOR COMPANY

16. Release the clips, position the start/stop switch bezel aside.
    • Disconnect the electrical connector and remove the start/stop switch bezel.

    Courtesy of FORD MOTOR COMPANY

17. Release the clips, separate the trim pin, and remove the RH instrument panel trim panel. Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

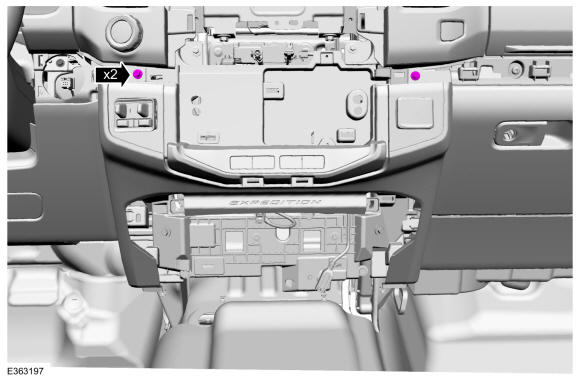

18. Remove the bolts.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Release the clips and remove the lower center stack trim panel.
    • Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

    All vehicles RH side

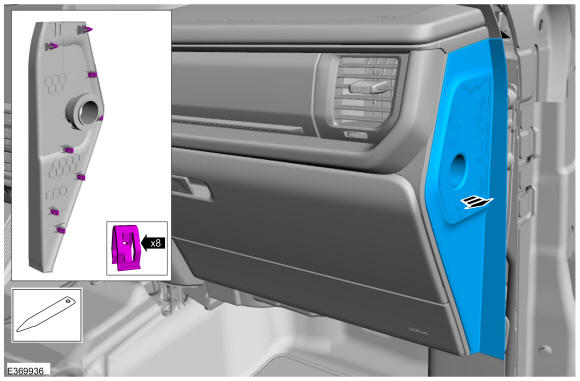

20. Release the clips and remove the RH instrument panel end cap. Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

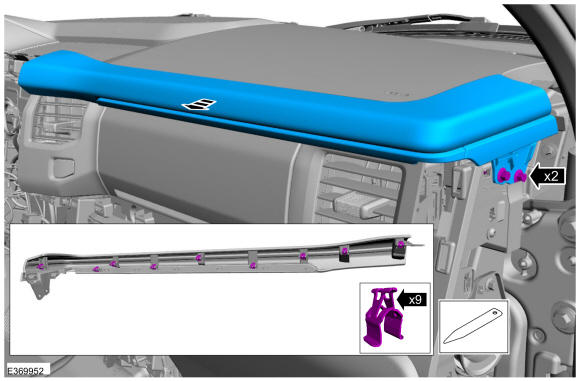

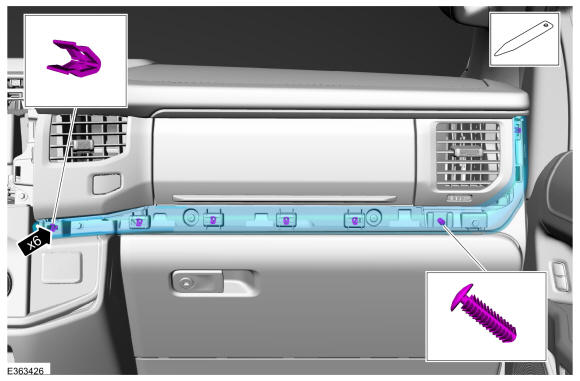

21. Remove the bolts, release the retainers and remove the RH instrument panel finish panel. Use the General Equipment: Interior Trim Remover

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

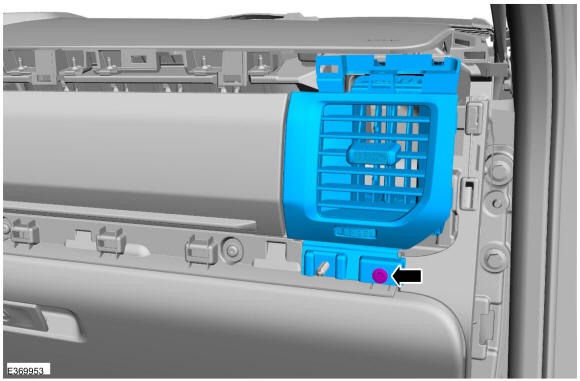

22. Remove the bolts and the RH register.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

23. Remove the bolts and the RH center register.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

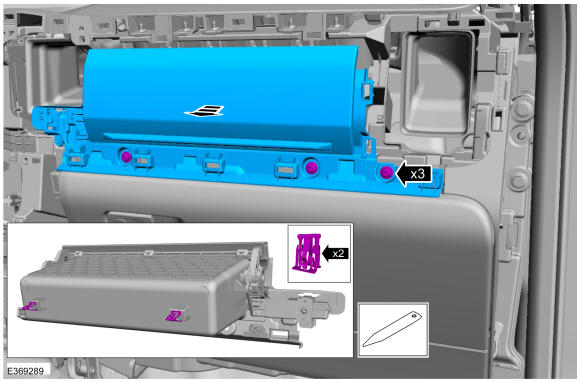

24. Remove the bolts, release the retainers and remove the storage bin assembly. Use the General Equipment: Interior Trim Remover

    Torque: 27 lb.in (3.0 Nm)

    Courtesy of FORD MOTOR COMPANY

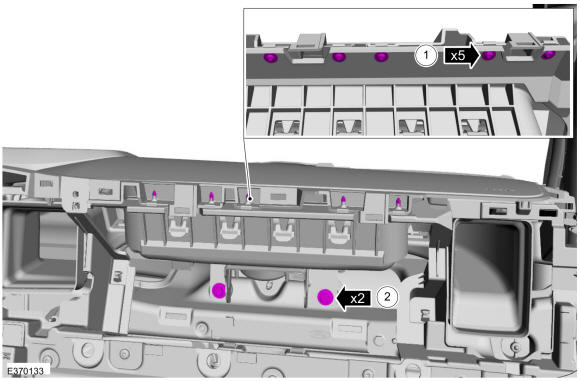

25. 1. Remove the bolts.

       Torque: 22 lb.in (2.5 Nm)

    2. Remove the bolts.

       Torque: 81 lb.in (9.2 Nm)

    Courtesy of FORD MOTOR COMPANY

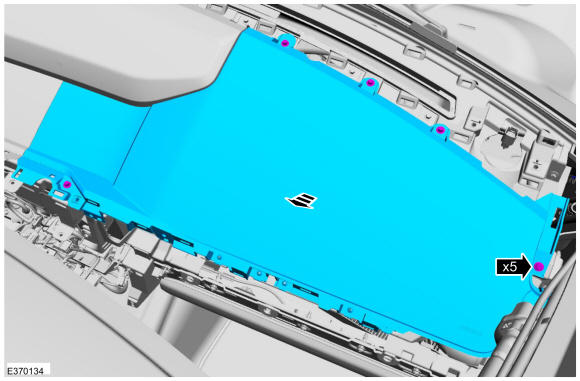

26. Remove the bolts and release the RH instrument panel upper section retainers by pulling up and inward.

    Torque: 24 lb.in (2.7 Nm)

    Courtesy of FORD MOTOR COMPANY

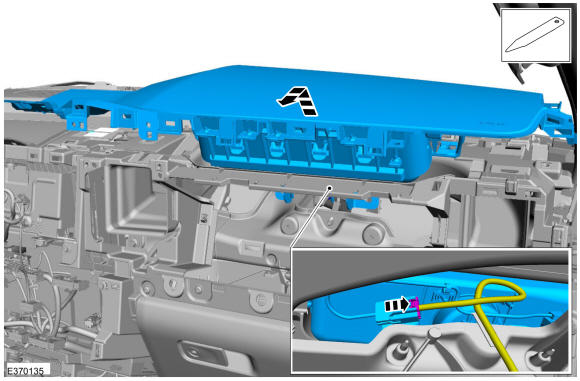

27. Remove the RH instrument panel upper section by lifting upward and inward.
    • Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

    All vehicles LH side

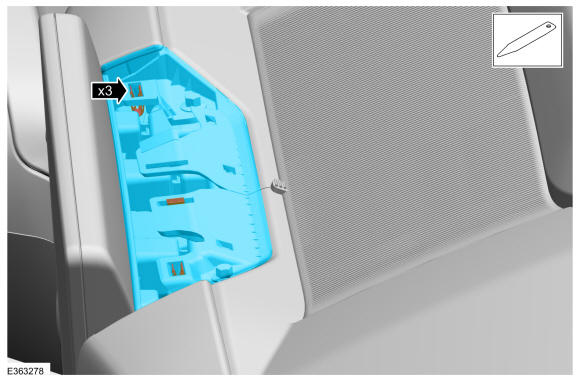

28. Release the retainers and remove the LH instrument panel end cap. Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

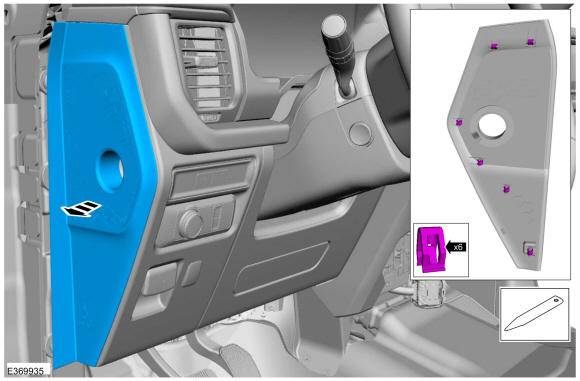

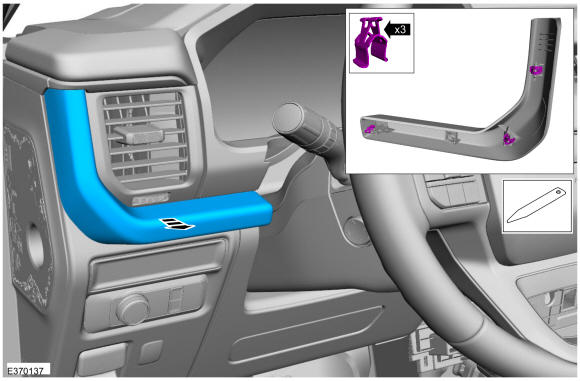

29. Release the retainers and remove the lower LH register trim panel. Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

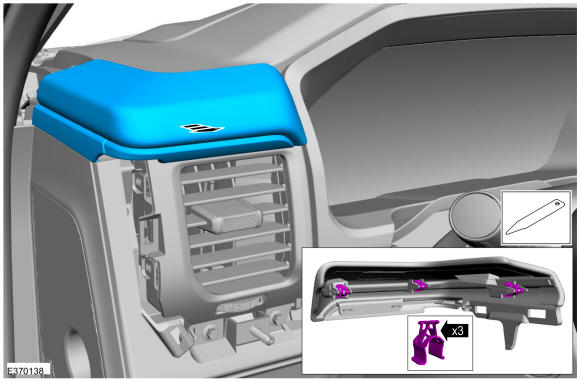

30. Release the retainers and remove the upper LH register trim panel. Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

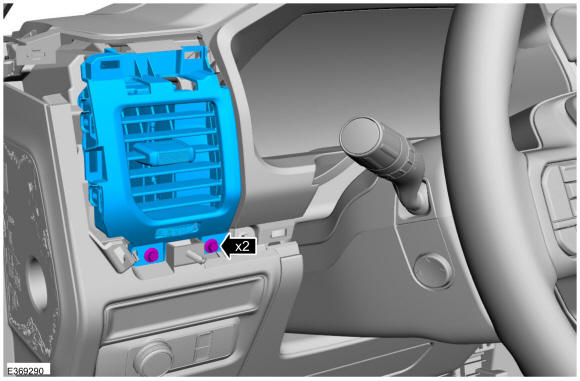

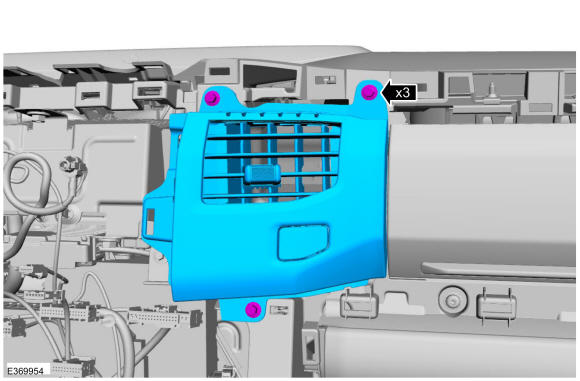

31. Remove the bolts and the LH register.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

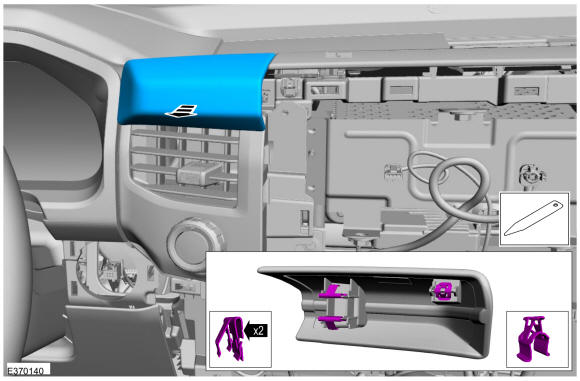

32. Release the retainers and the LH center register upper trim panel. Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

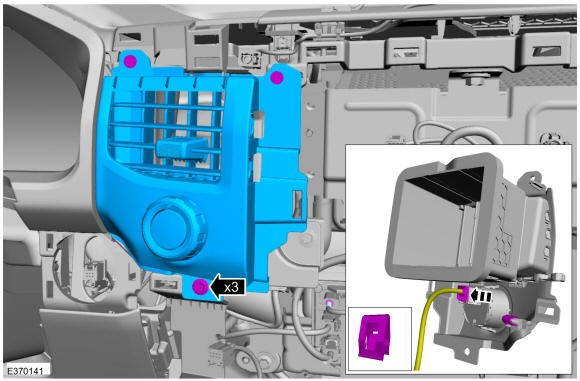

33. Remove the bolts and the LH center register.
    • Disconnect the electrical connector.

      Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

34. Remove the IPC. Refer to: Instrument Panel Cluster (IPC) .
35. Remove the instrument panel center speaker. Refer to: Instrument Panel Center Speaker .
36. Remove the sunload sensor. Refer to: Sunload Sensor .
37. Remove the bolts and release the LH instrument panel upper section retainers by pulling up and inward. Use the General Equipment: Interior Trim Remover

    Torque: 24 lb.in (2.7 Nm)

Courtesy of FORD MOTOR COMPANY
