Auxiliary Power Point: Removal

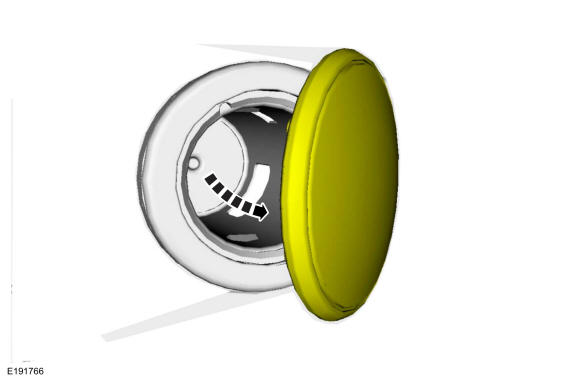

  1. Open the power point cover.
    GFD703537Courtesy of FORD MOTOR COMPANY

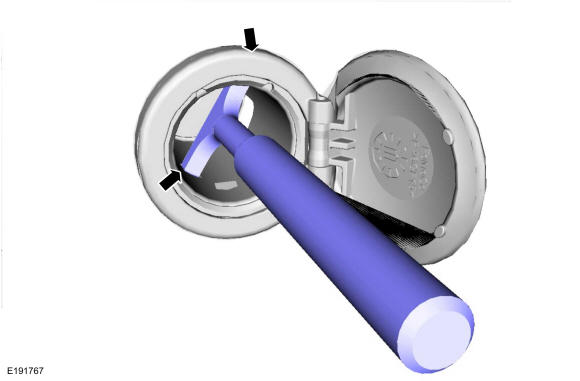

  2. Position the power point extractor so that it engages in the adjacent slots in the power point socket. Use Special Service Tool: 501-194 Remover, Power Point.
    GFD703538Courtesy of FORD MOTOR COMPANY

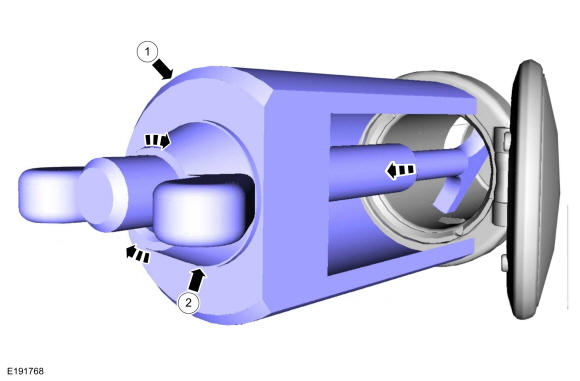

    1. Install the receiver cup.
    2. Install and tighten the wing nut. Use Special Service Tool: 501-194 Remover, Power Point.
    GFD703539Courtesy of FORD MOTOR COMPANY

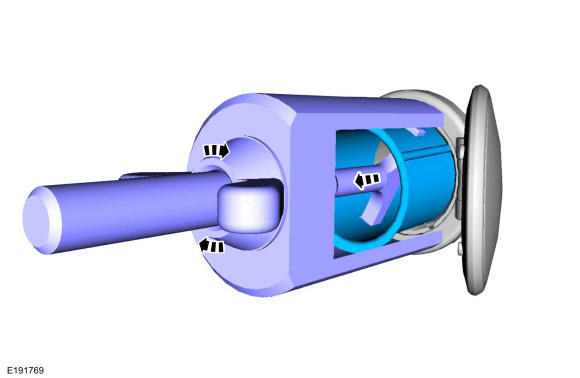

  4. Tighten the wing nut to pull the power point socket out of the retainer. Use Special Service Tool: 501-194 Remover, Power Point.
    GFD703540Courtesy of FORD MOTOR COMPANY
  5. Disconnect the electrical connector.
GFD703541Courtesy of FORD MOTOR COMPANY
