Side Parking Aid Camera: Removal

Flush mounted camera

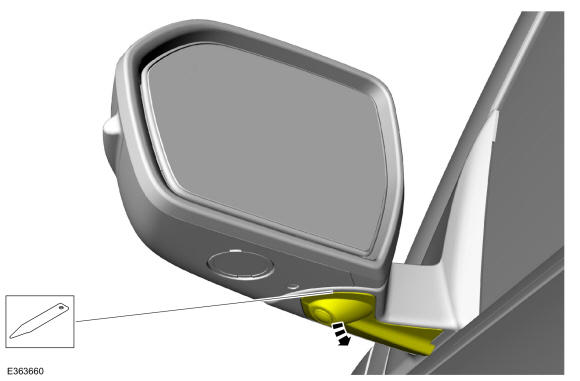

1. Release the tab and lower the side parking aid camera housing. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

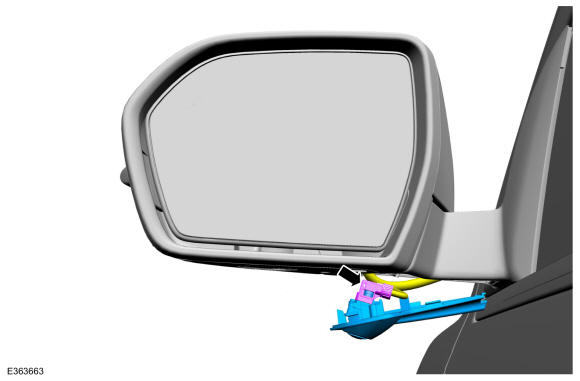

2. Disconnect the electrical connector and remove the camera and mounting plate as an assembly.

   Courtesy of FORD MOTOR COMPANY

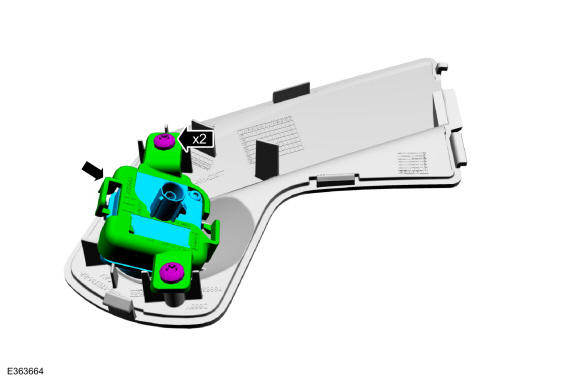

3. Remove the screws, the side park aid camera bracket and the side park aid camera.

   Courtesy of FORD MOTOR COMPANY

   Extended mount camera

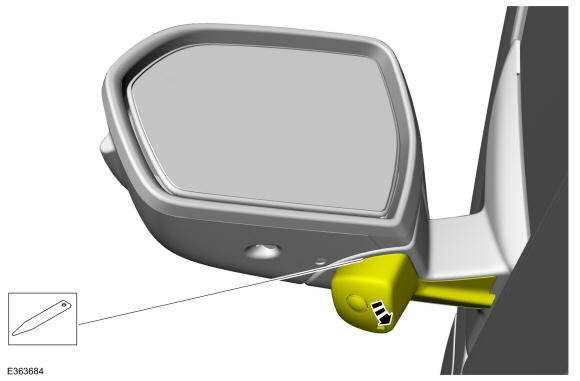

4. Release the tab and lower the side parking aid camera housing. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

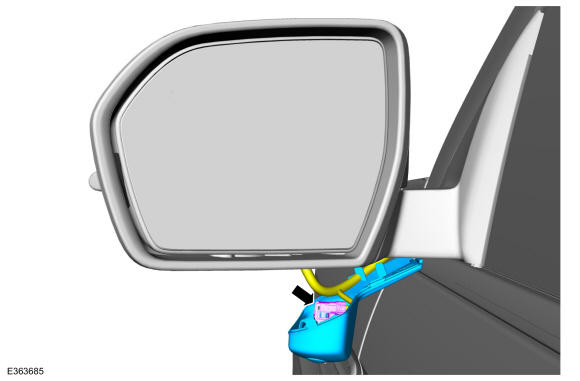

5. Disconnect the electrical connector and remove the camera and mounting plate as an assembly.

   Courtesy of FORD MOTOR COMPANY

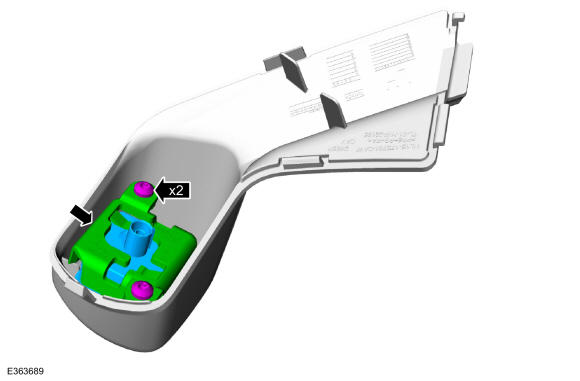

6. Remove the screws, the side park aid camera bracket and the side park aid camera.

Courtesy of FORD MOTOR COMPANY
