Rear Parking Aid Camera: Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Digital camera is shown in illustration, analog camera is similar.
- Remove the liftgate moulding. Refer to: Liftgate Moulding .

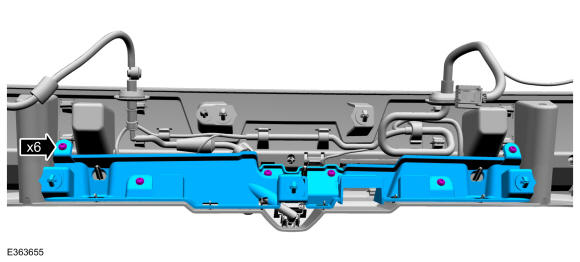

- Remove the liftgate moulding reinforcement.

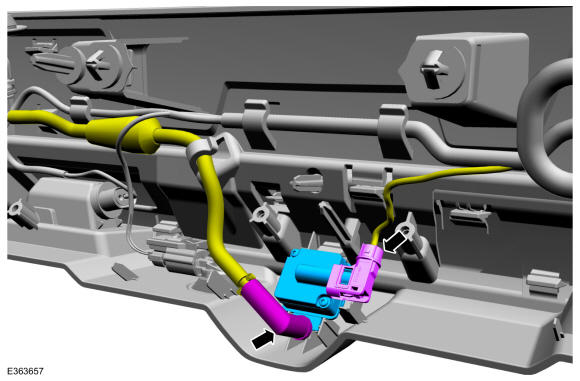

- Disconnect the electrical connector, the washer hose and remove the rear parking aid camera and washer nozzle as an assembly.

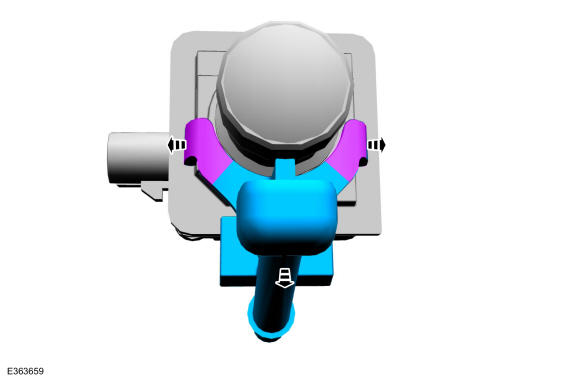

- Release the arms and remove the rear parking aid camera washer nozzle.
