Front Parking Aid Camera: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the radiator grille. Refer to: Radiator Grille .

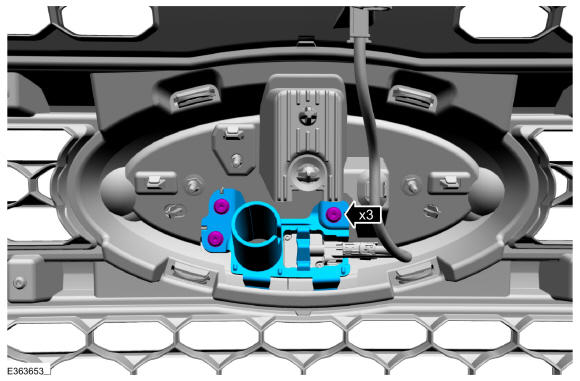

  2. Remove the screws and the front camera bracket.
    GFD702673Courtesy of FORD MOTOR COMPANY

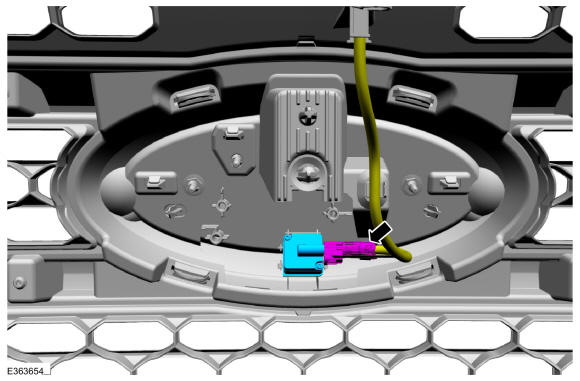

  3. Disconnect the electrical connector and remove the front parking aid camera.
GFD702674Courtesy of FORD MOTOR COMPANY
