Fuel Tank Isolation Valve - Plug-In Hybrid Electric Vehicle (PHEV): Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the fuel vapor vent valve. Refer to: Fuel Vapor Vent Valve - Plug-In Hybrid Electric Vehicle (PHEV) .
-

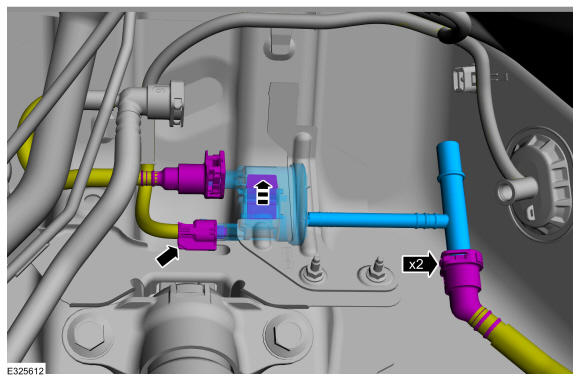

- Disconnect the electrical connector.
- Disconnect the quick release couplings. Refer to: QUICK RELEASE COUPLING .
- Remove the isolation valve.
