Coolant Pump: Removal
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

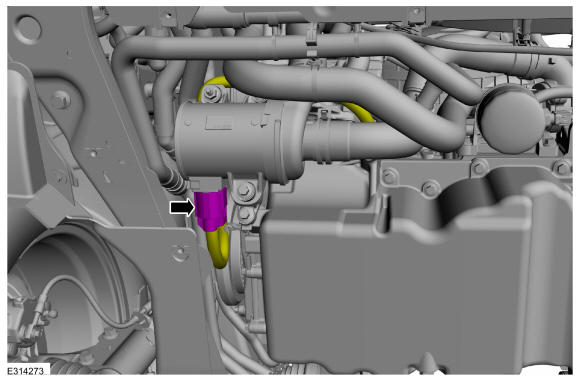

- Disconnect the electrical connector.

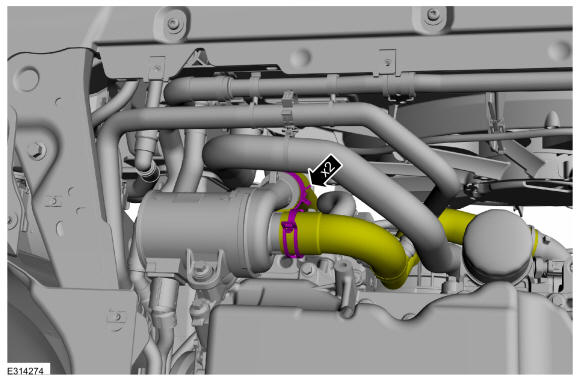

- Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

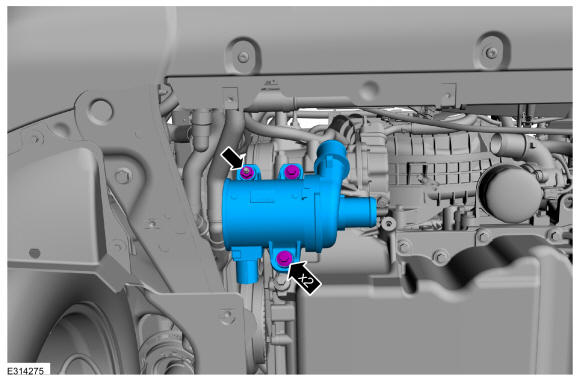

- Remove the bolts, nut and the coolant pump.
Torque: 18 lb.ft (25 Nm)
