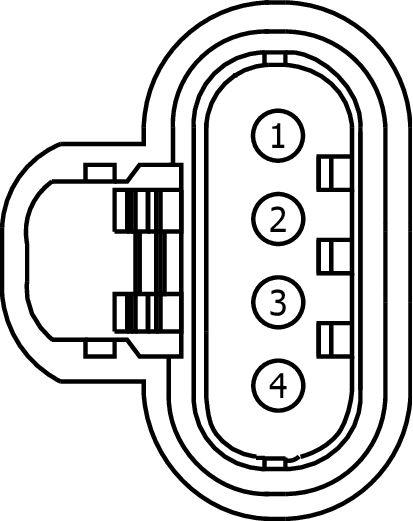

Connector End View C3236 - EXHAUST HEAT EXCHANGER BYPASS VALVE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3236	EXHAUST HEAT EXCHANGER BYPASS VALVE	BU	14300	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
6W8T-14474-PA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD480 (BK)	20	GROUND - FRAME MIDDLE LEFT	6W8T-14474-PA
2	VE940 (GN-BU)	20	VALVE - ACTIVE EXHAUST SOLENOID RIGHT	6W8T-14474-PA
3	CBB07 (GN-BU)	18	FUSE - 7	6W8T-14474-PA
4	VE941 (BN)	20	VALVE - ACTIVE EXHAUST SOLENOID RIGHT	6W8T-14474-PA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1537

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ACA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Module - Differential Oil Temperature
• Module - Particulate Matter Bank Sensor
• Module - Reductant Quality
• Noise Generator
• Sensor - Fuel Rail Pressure and Temperature
• Sensor - Manifold Pressure/Intake Temperature
• Sensor - Turbo Intake Pressure/Temperature
• Valve - Active Exhaust Solenoid
