Connector End View C3235 - EGHR INLET TEMPERATURE SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3235	EGHR INLET TEMPERATURE SENSOR	BK	14300	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-FAB	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE793 (GN)	20	SENSOR - GAS PARTICULATE FILTER GAUGE PRESSURE	EU5T-14474-FAB
2	RE793 (VT-GY)	20	SENSOR - ENGINE COOLANT CONTROL VALVE POSITION	EU5T-14474-FAB

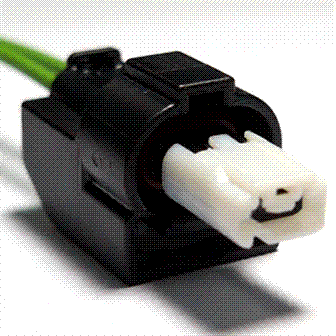

Available Pigtail Kits

Pigtail Kit Part Number WPT-1469

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-KA

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Side Impact
• Sensor - Transfer Case Temperature
• Sensor - Transmission Fluid Temperature
• Solenoid - Variable Oil Pump Control
