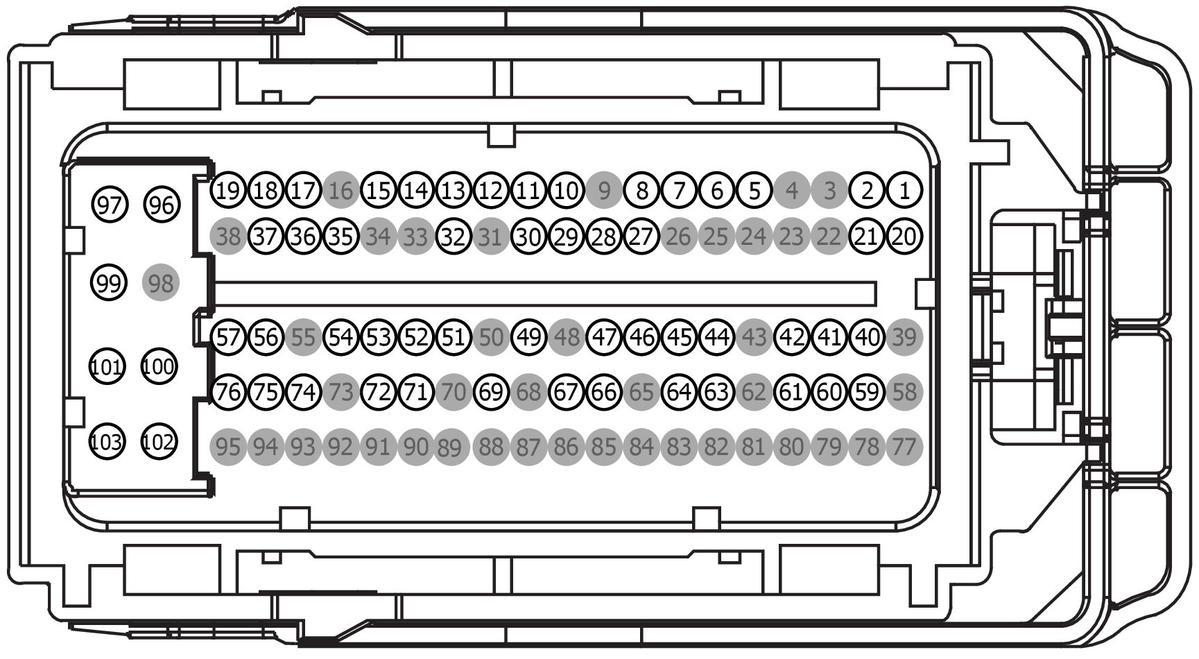

Connector End View C1381B - POWERTRAIN CONTROL MODULE (PCM)

Connector: Description Color Harness Base Part # Service Pigtail
C1381B POWERTRAIN CONTROL MODULE (PCM) BK 14290 part# N/A Not Available
GFDWR165446Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
BU5T-14474-AB DU2Z-14474-CA 0.64
BU5T-14474-BB DU2Z-14474-CA 0.64
BU5T-14474-UA DU2Z-14474-DA 1.50
CU5T-14474-NA DU2Z-14474-DA 1.50
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CE729 (BN) 22 RUNNER - INTAKE MANIFOLD CONTROL # MONITOR 2 BU5T-14474-AB
2 ZA123 (OG-BK) 22 CTRL MOD. - POWERTRAIN # REFUELING VALVE CONTROL BU5T-14474-AB
3 * * Not Used N/A
4 * * Not Used N/A
5 GD191 (BK-GN) 20 GROUND - FENDER FRONT LEFT # 4TH POINT BU5T-14474-AB
6 CPL24 (YE-BU) 22 SWITCH - FUEL FILLER DOOR # RELEASE BU5T-14474-AB
7 LE230 (BN-BU) 22 CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF) BU5T-14474-AB
8 VE941 (BN) 22 VALVE - ACTIVE EXHAUST SOLENOID RIGHT BU5T-14474-AB
9 * * Not Used N/A
10 CPLB5 (BU-GY) 22 CTRL MOD. - SOLENOID CONSOLE LOCK + BU5T-14474-AB
11 VE783 (VT-BN) 22 SENSOR - EVAP SYSTEM PRESSURE BU5T-14474-AB
12 CES09 (VT-OG) 22 SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + BU5T-14474-AB
13 RE794 (BU) 22 SENSOR - ENGINE COOLANT CONTROL VALVE POSITION BU5T-14474-AB
14 CCB08 (VT-WH) 22 SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN BU5T-14474-AB
15 RE406 (GY-VT) 22 CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B) BU5T-14474-AB
16 * * Not Used N/A
17 VE794 (YE) 22 SENSOR - GAS PARTICULATE FILTER GAUGE PRESSURE BU5T-14474-AB
17 VE794 (YE) 20 SENSOR - GAS PARTICULATE FILTER GAUGE PRESSURE BU5T-14474-AB
18 RE456 (BU-OG) 22 CTRL MOD. - SENSOR CLUTCH MASTER CYLINDER - BU5T-14474-AB
19 RE226 (GN-VT) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) - BU5T-14474-AB
20 CE302 (YE-BU) 22 CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC) BU5T-14474-AB
21 CYD14 (GN-BN) 22 CTRL MOD. - HEV WAKEUP (DCDC_WKUP) BU5T-14474-AB
22 * * Not Used N/A
23 * * Not Used N/A
24 * * Not Used N/A
25 * * Not Used N/A
26 * * Not Used N/A
27 VE518 (BN-WH) 22 MONITOR - FUEL PUMP (FPM) BU5T-14474-AB
28 CE193 (GY-OG) 22 CTRL MOD. - POWERTRAIN # CHARGE AIR COOLER COOLANT PUMP CONTROL (CACCPC) BU5T-14474-AB
29 LE458 (BU-WH) 22 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2) BU5T-14474-AB
30 RE479 (VT-BN) 22 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL 2 (C-SIGRTN) (SIGRTN-C) BU5T-14474-AB
31 * * Not Used N/A
32 CE226 (YE-VT) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + BU5T-14474-AB
33 * * Not Used N/A
34 * * Not Used N/A
35 RE136 (VT-GN) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN) BU5T-14474-AB
36 LE136 (GN-OG) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF) BU5T-14474-AB
37 VE729 (WH-BU) 22 SENSOR - FUEL RAIL TEMPERATURE (FRT) BU5T-14474-AB
38 * * Not Used N/A
39 * * Not Used N/A
40 LE137 (BU-GY) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF) BU5T-14474-AB
41 CBB24 (VT-GN) 22 FUSE - 24 BU5T-14474-AB
42 CPK34 (GN-WH) 22 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + BU5T-14474-AB
43 * * Not Used N/A
44 VH433 (VT-OG) 22 TRANSDUCER - A/C PRESSURE (ACPT) + BU5T-14474-AB
45 VE793 (GN) 22 SENSOR - GAS PARTICULATE FILTER GAUGE PRESSURE BU5T-14474-AB
46 VE922 (VT-GN) 22 TRANSDUCER - FUEL TANK PRESSURE (FTPT) BU5T-14474-AB
47 VE750 (GN-BU) 22 SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) BU5T-14474-AB
48 * * Not Used N/A
49 CR167 (YE-VT) 22 CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) BU5T-14474-AB
50 * * Not Used N/A
51 RE405 (GN-WH) 22 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) BU5T-14474-AB
52 LE230 (BN-BU) 22 CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF) BU5T-14474-AB
53 RE259 (BU) 22 CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER 2ND (GND_FTPT2) BU5T-14474-AB
54 RE793 (VT-GY) 22 SENSOR - ENGINE COOLANT CONTROL VALVE POSITION BU5T-14474-AB
55 * * Not Used N/A
56 VE474 (BU-GN) 22 CTRL MOD. - POWERTRAIN # TRANSMISSION CAN BUS HIGH SPEED HIGH BU5T-14474-AB
57 VE475 (WH-VT) 22 CTRL MOD. - POWERTRAIN # TRANSMISSION CAN BUS HIGH SPEED LOW BU5T-14474-AB
58 * * Not Used N/A
59 RE137 (YE-GN) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN) BU5T-14474-AB
60 VE702 (BU-WH) 22 SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) BU5T-14474-AB
61 VE701 (YE-OG) 22 SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) BU5T-14474-AB
62 * * Not Used N/A
63 VE940 (GN-BU) 22 VALVE - ACTIVE EXHAUST SOLENOID RIGHT BU5T-14474-AB
64 SBB05 (GY-RD) 22 FUSE - 5 BU5T-14474-AB
65 * * Not Used N/A
66 VE203 (YE-GY) 22 CTRL MOD. - POWERTRAIN # FAN CONTROL VARIABLE (FC-V) BU5T-14474-AB
67 CE420 (GY-VT) 22 CTRL MOD. - POWERTRAIN # VAPOR MANAGEMENT VALVE (VAPOR BLOCKING - EVAPS) (VMV-CC) BU5T-14474-AB
68 * * Not Used N/A
69 VMC02 (BU-WH) 22 CTRL MOD. - POWERTRAIN # CLEAN TACHOMETER OUTPUT (CTO) BU5T-14474-AB
70 * * Not Used N/A
71 RE242 (GN) 18 CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST (HEGO_RTN) BU5T-14474-BB
72 VE731 (YE-GN) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) BU5T-14474-BB
73 * * Not Used N/A
74 VE376 (VT-BN) 22 CTRL MOD. - LIN BUS # ACTIVE GRILLE SHUTTER MODULE BU5T-14474-AB
75 VDB04 (BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH BU5T-14474-AB
76 VDB05 (WH) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW BU5T-14474-AB
77 * * Not Used N/A
78 * * Not Used N/A
79 * * Not Used N/A
80 * * Not Used N/A
81 * * Not Used N/A
82 * * Not Used N/A
83 * * Not Used N/A
84 * * Not Used N/A
85 * * Not Used N/A
86 * * Not Used N/A
87 * * Not Used N/A
88 * * Not Used N/A
89 * * Not Used N/A
90 * * Not Used N/A
91 * * Not Used N/A
92 * * Not Used N/A
93 * * Not Used N/A
94 * * Not Used N/A
95 * * Not Used N/A
96 CE227 (BU-GY) 22 CTRL MOD. - POWERTRAIN # FUEL TANK ISOLATION VALVE (FTIV) CU5T-14474-NA
97 CBB06 (WH-BU) 18 FUSE - 6 7C3T-14474-DA
98 * * Not Used N/A
99 CBB06 (WH-BU) 18 FUSE - 6 7C3T-14474-DA
100 GD191 (BK-GN) 16 GROUND - FENDER FRONT LEFT # 4TH POINT 7C3T-14474-DA
101 VE225 (YE-OG) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) BU5T-14474-UA
102 GD191 (BK-GN) 16 GROUND - FENDER FRONT LEFT # 4TH POINT 7C3T-14474-DA
103 GD191 (BK-GN) 16 GROUND - FENDER FRONT LEFT # 4TH POINT 7C3T-14474-DA
