Brake Vacuum Pump - 2.7L EcoBoost (238kW/324PS): Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the air cleaner outlet pipes. Refer to: Air Cleaner Outlet Pipe LH . Refer to: Air Cleaner Outlet Pipe RH .

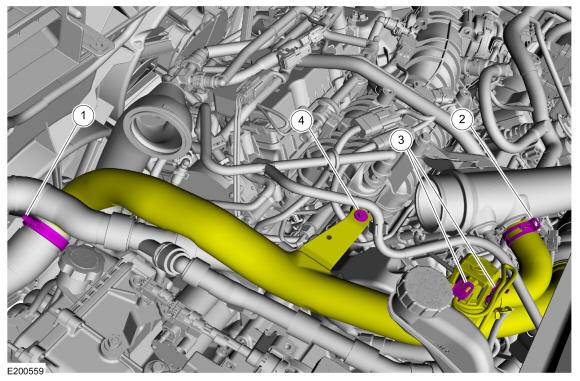

1. Loosen the clamp and disconnect the pipe.
  Torque: 44 lb.in (5 Nm)
2. Release the clamp and disconnect the pipe.
3. Disconnect the electrical connector and detach the wiring retainer.
4. Remove the bolt and position the CAC intake pipe aside.
  Torque: 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY

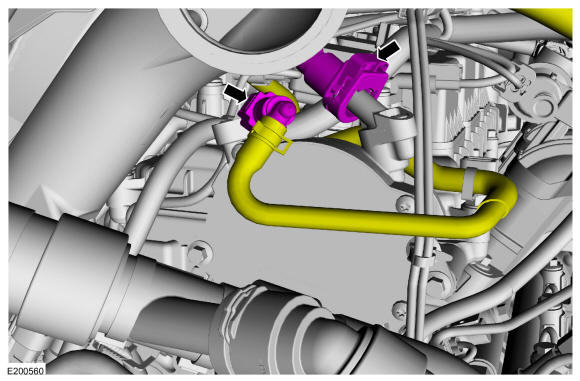

Disconnect the vacuum tubes.

Courtesy of FORD MOTOR COMPANY

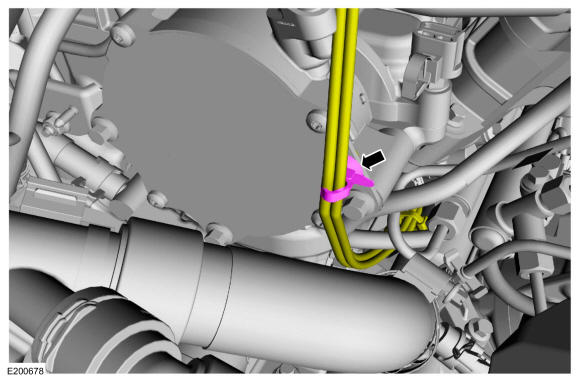

Detach the wiring retainer.

Courtesy of FORD MOTOR COMPANY

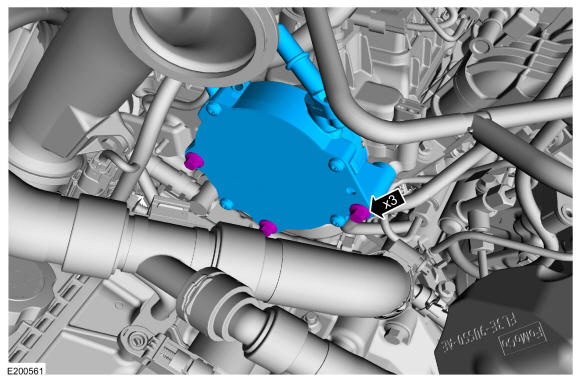

Remove the bolts and the vacuum pump.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
