Wastegate Control Actuator: Installation

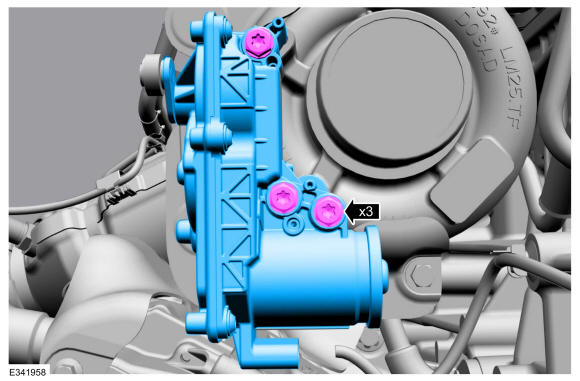

- Install the wastegate control actuator, then install and tighten the new bolts.
Torque: 62 lb.in (7 Nm)

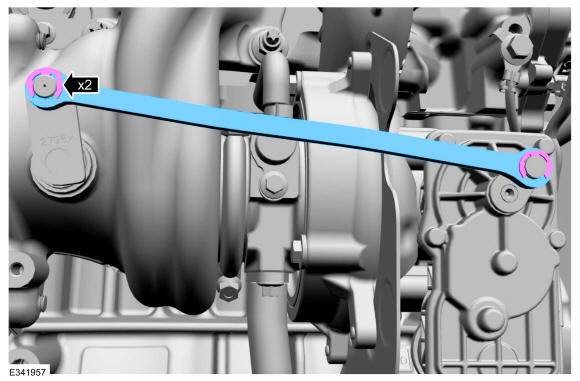

- Install the new wastegate control actuator linkage, then install the new e-clips.

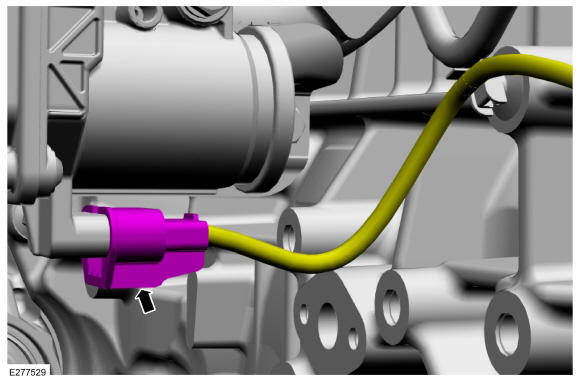

- Connect the wastegate control actuator electrical connector.
-
- If the studs came out with the nuts, remove the nuts from the studs.
- If the studs came out with the nuts, install and tighten the studs.
Torque: 159 lb.in (18 Nm)

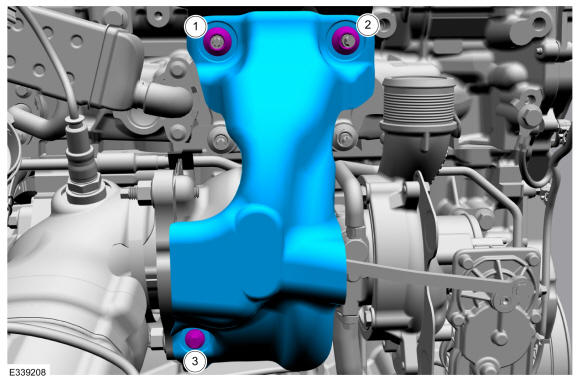

- Install the heat shield, then install and tighten the nuts and bolt.
Torque: Stage 1: Tighten 1 and 2 to : 168 lb.in (19 Nm) Stage 2: Tighten 1 and 2 to : 39 lb.ft (53 Nm) Stage 3: Re-tighten 1 and 2 to : 39 lb.ft (53 Nm) Stage 4: Tighten 3 to : 97 lb.in (11 Nm)

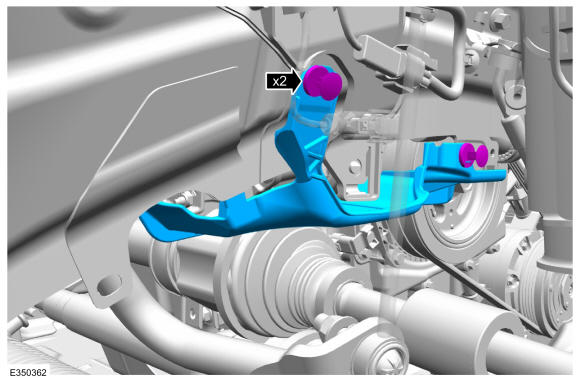

- Install the shield, then install the retainers.

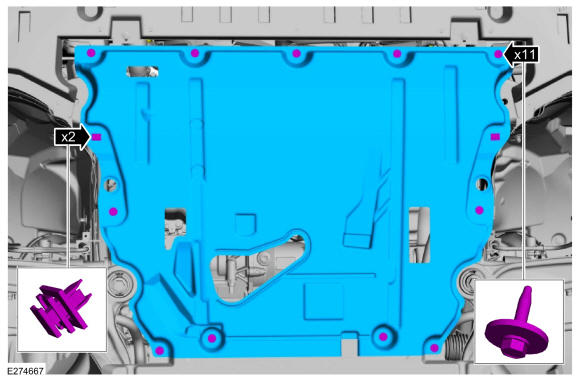

- Install the underbody shield, then install the retainers.

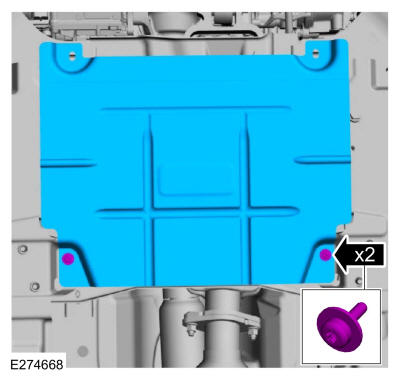

- Install the underbody shield, then install the retainers.
- Install the right front tire. Refer to: Wheel and Tire .
-
NOTE: Substantial opening and closing torque is applied by this system. To prevent injury, be careful to keep fingers away from wastegate mechanism when actuated. Failure to follow these instructions may result in personal injury.
With the KOEO, using a diagnostic scan tool, clear the PCM DTC's and reset the KAM.
