Instrument Cluster

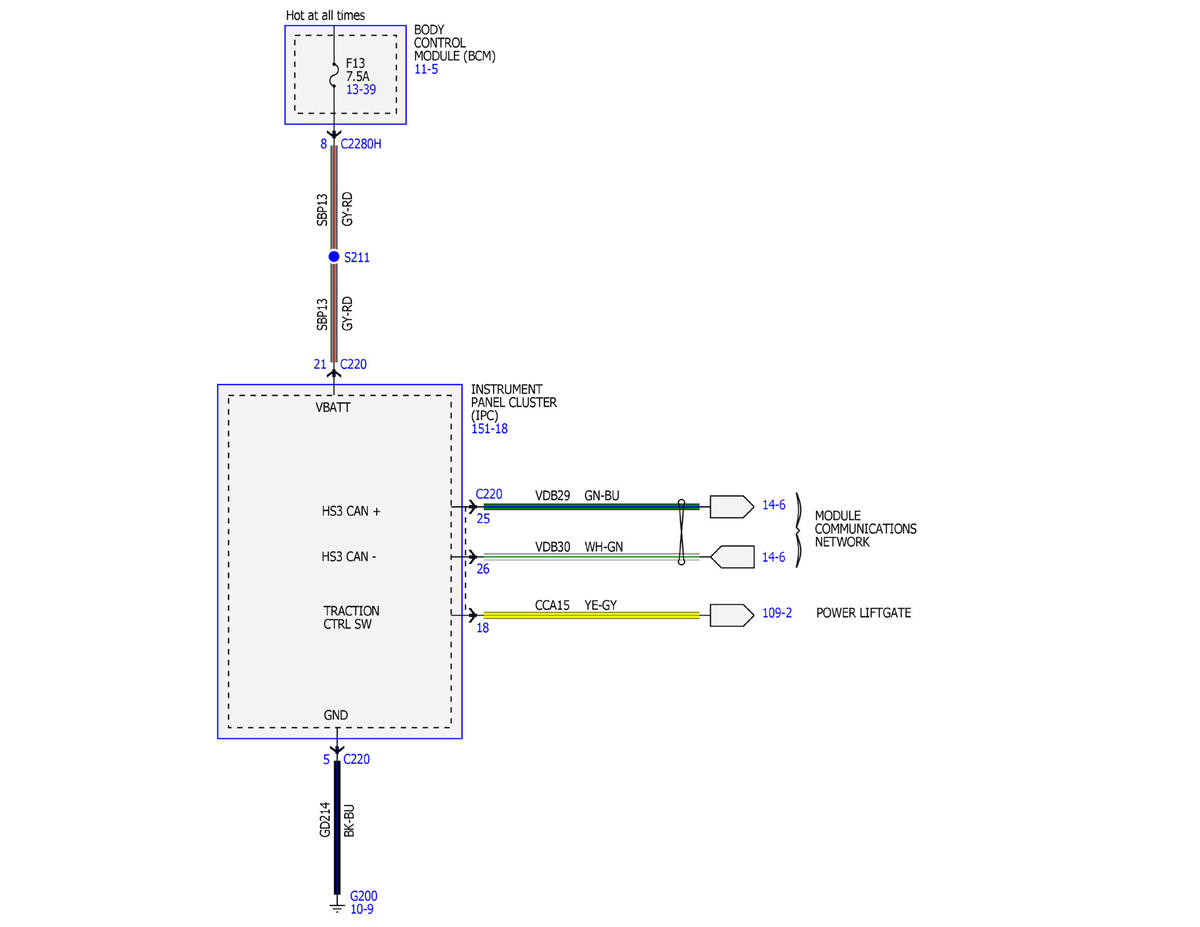

Fig 1: Instrument Cluster Wiring Diagram (1 Of 7)
GFDWR163722Courtesy of FORD MOTOR COMPANY

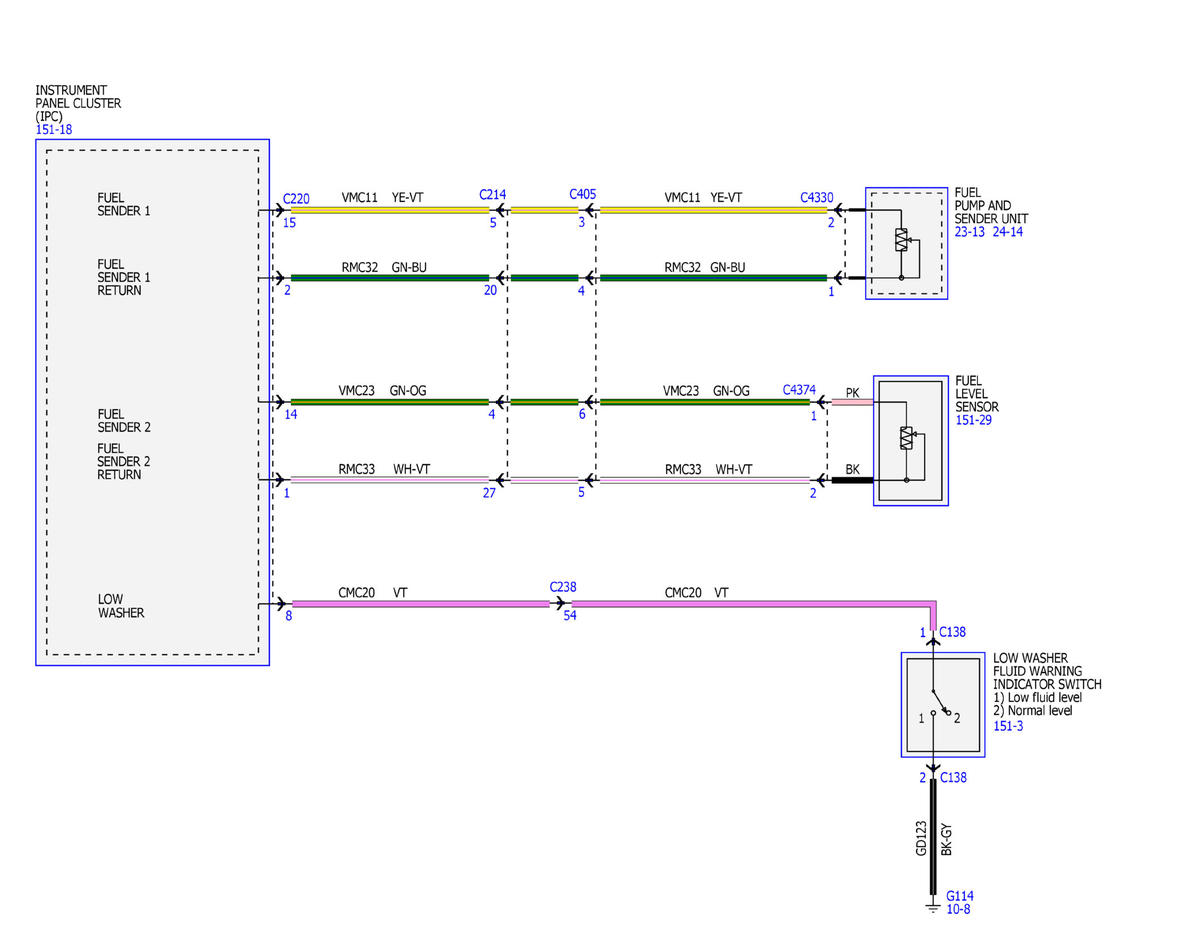

Fig 2: Instrument Cluster Wiring Diagram (2 Of 7)
GFDWR163723Courtesy of FORD MOTOR COMPANY

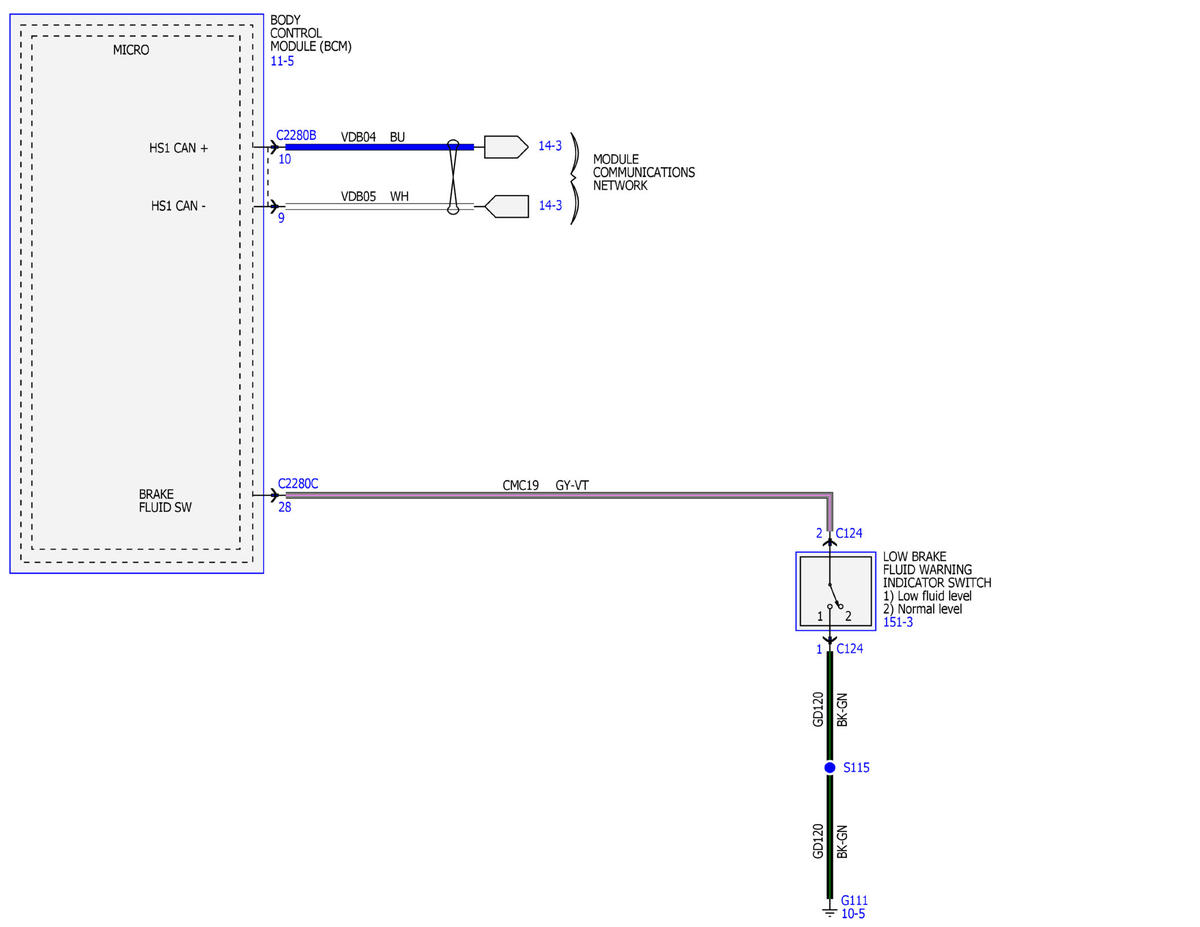

Fig 3: Instrument Cluster Wiring Diagram (3 Of 7)
GFDWR163724Courtesy of FORD MOTOR COMPANY

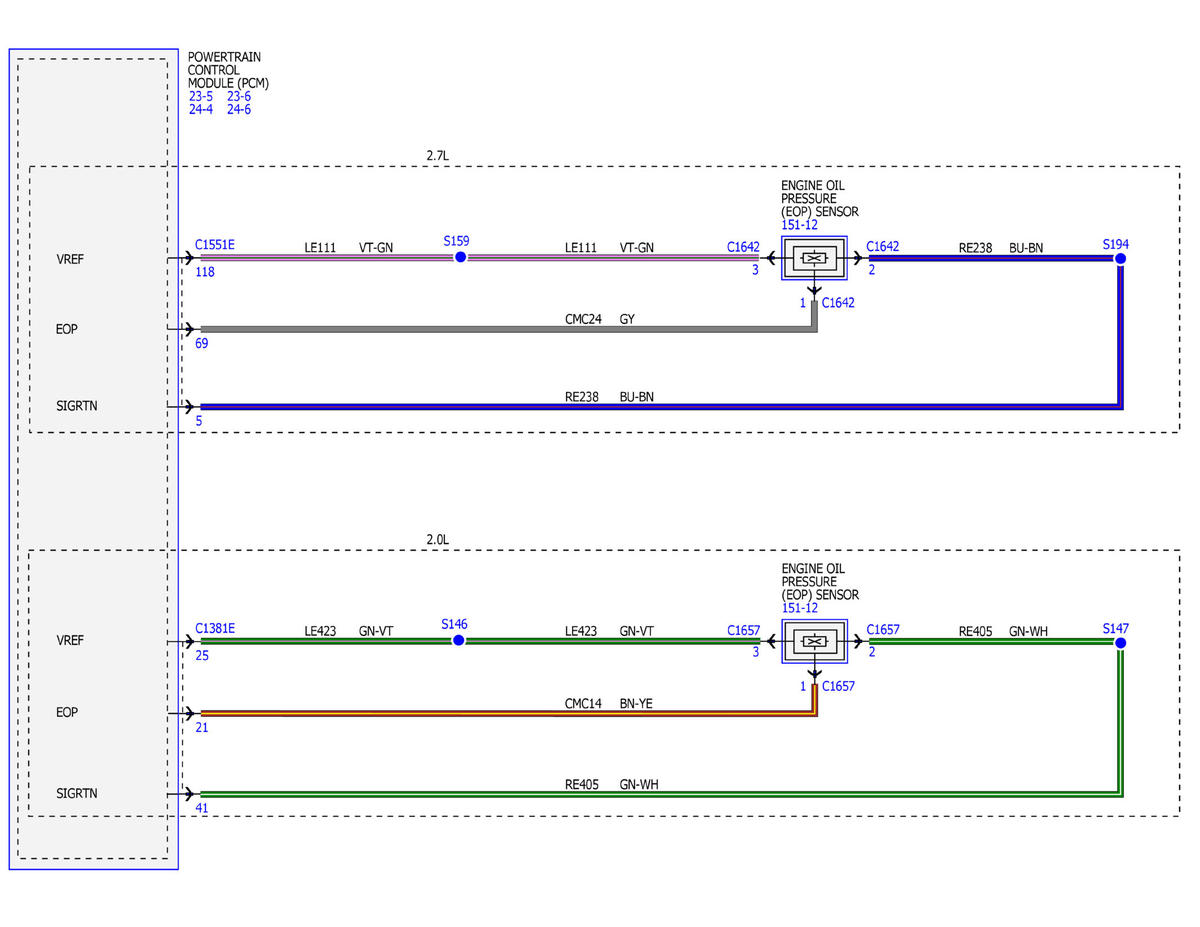

Fig 4: Instrument Cluster Wiring Diagram (4 Of 7)
GFDWR163725Courtesy of FORD MOTOR COMPANY

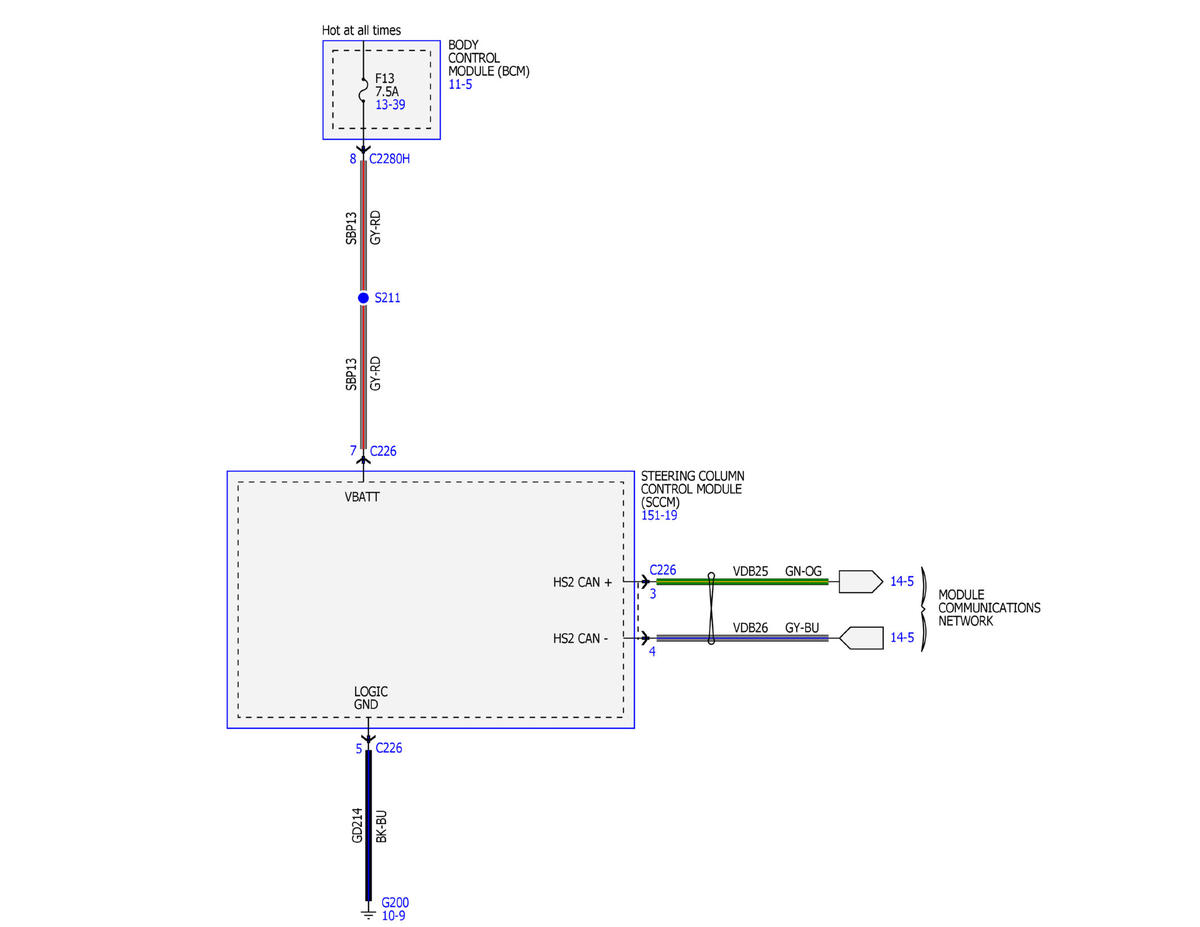

Fig 5: Instrument Cluster Wiring Diagram (5 Of 7)
GFDWR163726Courtesy of FORD MOTOR COMPANY

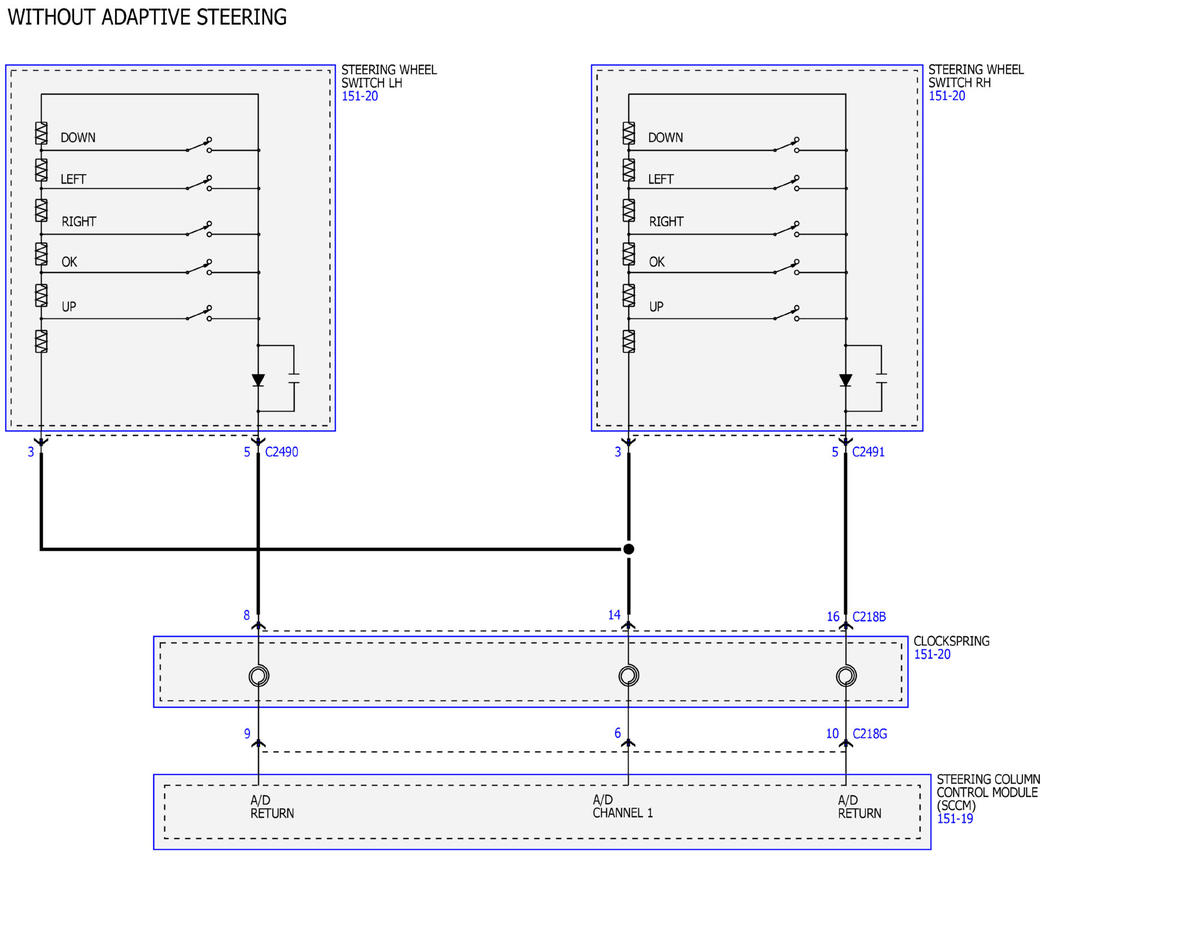

Fig 6: Instrument Cluster Wiring Diagram (6 Of 7)
GFDWR163727Courtesy of FORD MOTOR COMPANY

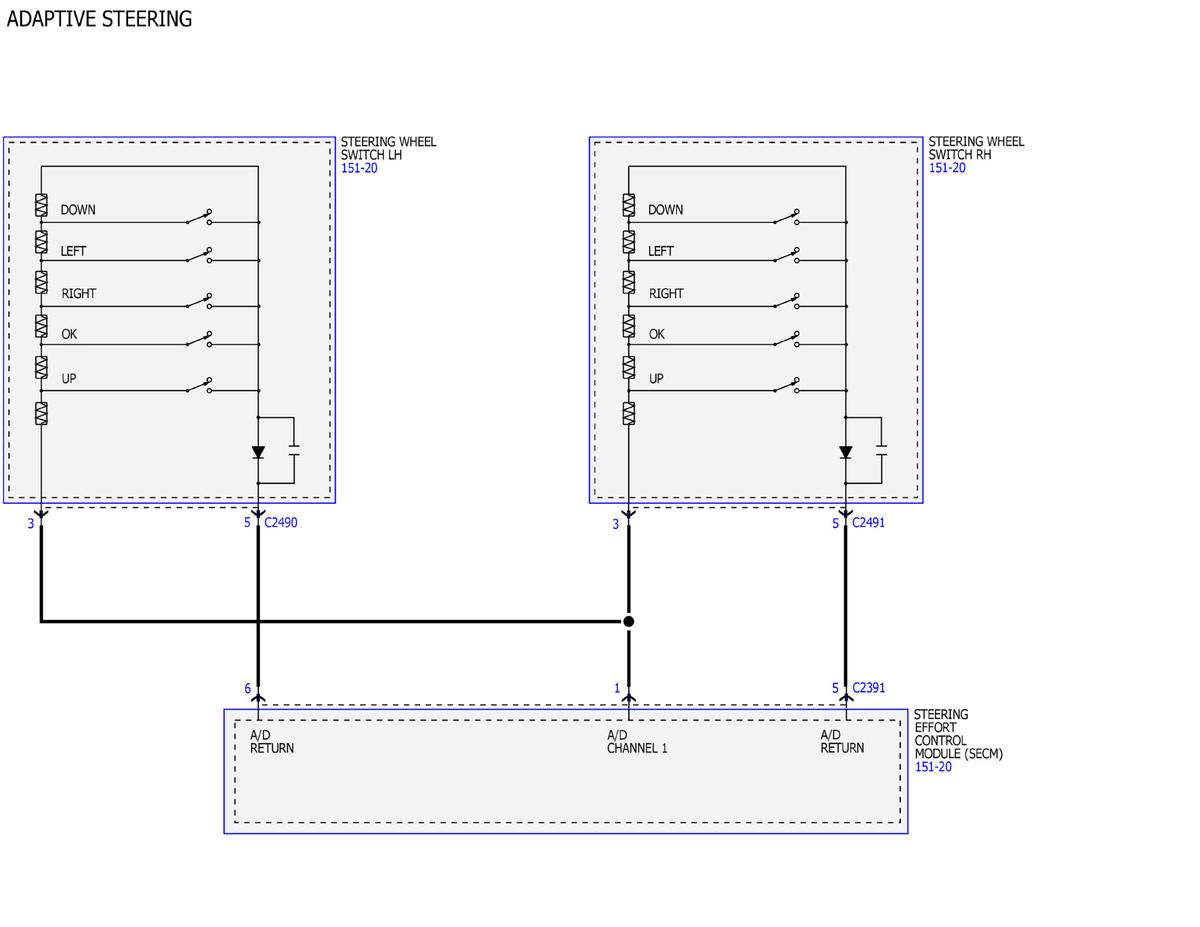

Fig 7: Instrument Cluster Wiring Diagram (7 Of 7)
GFDWR163728Courtesy of FORD MOTOR COMPANY
