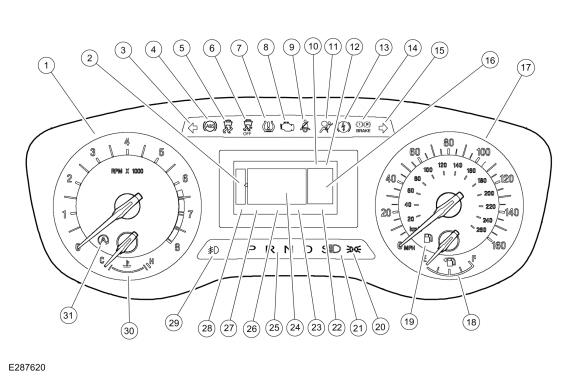

Base IPC
Base IPC
| Item | Description |
|---|---|
| 1 | Tachometer |
| 2 | Main menu display |
| 3 | LH turn indicator |
| 4 | ABS warning indicator |
| 5 | Stability-traction control indicator (sliding car icon) |
| 6 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 7 | TPMS warning indicator |
| 8 | MIL |
| 9 | Seatbelt warning indicator |
| 10 | Lane keeping system RTT indicator |
| 11 | Airbag warning indicator |
| 12 | Cruise control RTT indicator |
| 13 | Electronic park brake indicator |
| 14 | Brake warning indicator |
| 15 | RH turn indicator |
| 16 | Lane assist system/forward collision warning display |
| 17 | Speedometer |
| 18 | Fuel gauge |
| 19 | Low fuel warning indicator |
| 20 | Lights on indicator |
| 21 | High beam indicator |
| 22 | Odometer display area |
| 23 | Compass |
| 24 | Main message center display area |
| 25 | PRNDL display |
| 26 | Rotating RTT display area BLIS® off Charging system Distance alert Door ajar Engine over-temperature Hood ajar Liftgate ajar Low engine oil pressure Low fuel Low washer fluid Overspeed warning (Gulf Cooperative Countries [GCC]) Powertrain malfunction (wrench) |
| 27 | Auto high beam RTT indicator |
| 28 | SelectShift® display |
| 29 | Front fog lamp indicator |
| 30 | Temperature gauge |
| 31 | Auto stop/start indicator |
