Parking Aid

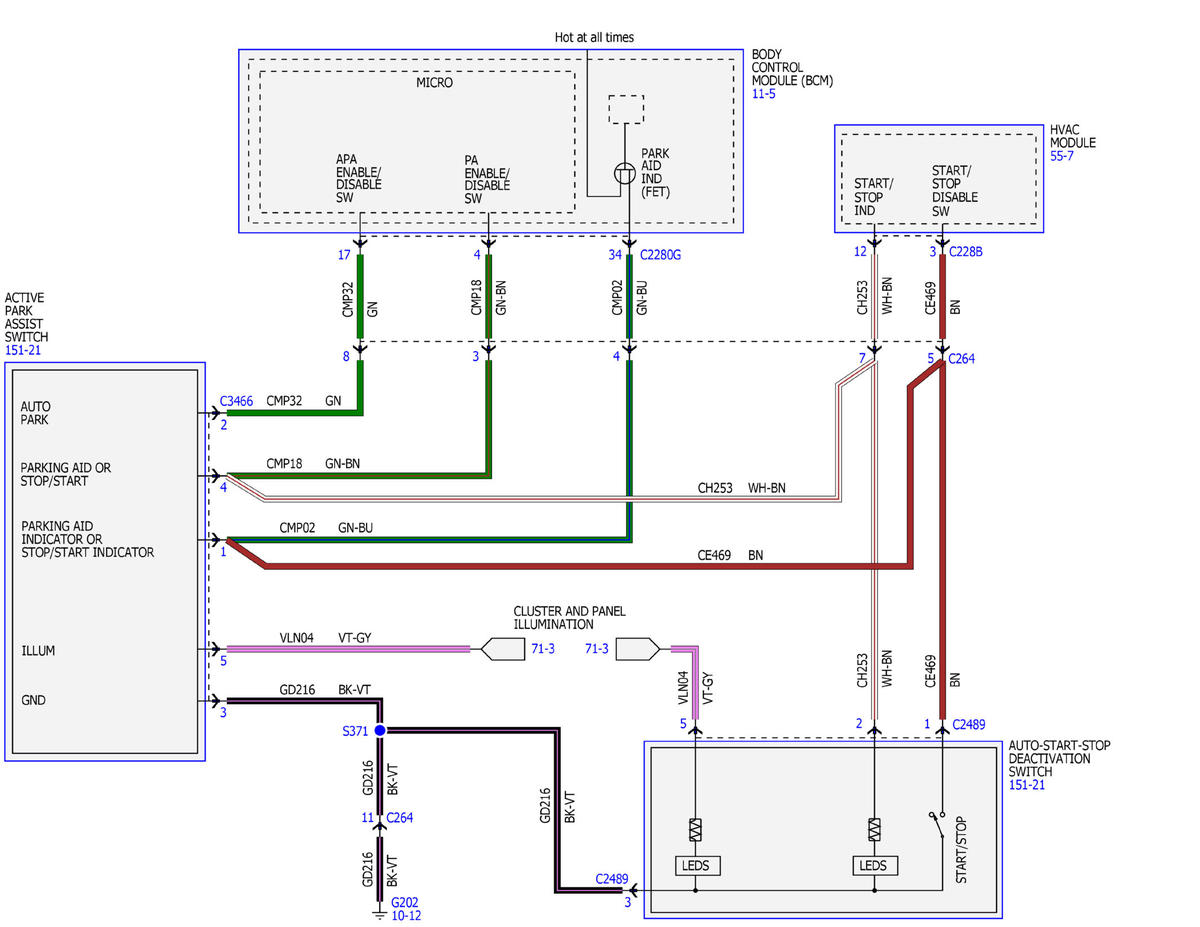

Fig 1: Parking Aid Wiring Diagram (1 Of 8)
GFDWR163750Courtesy of FORD MOTOR COMPANY

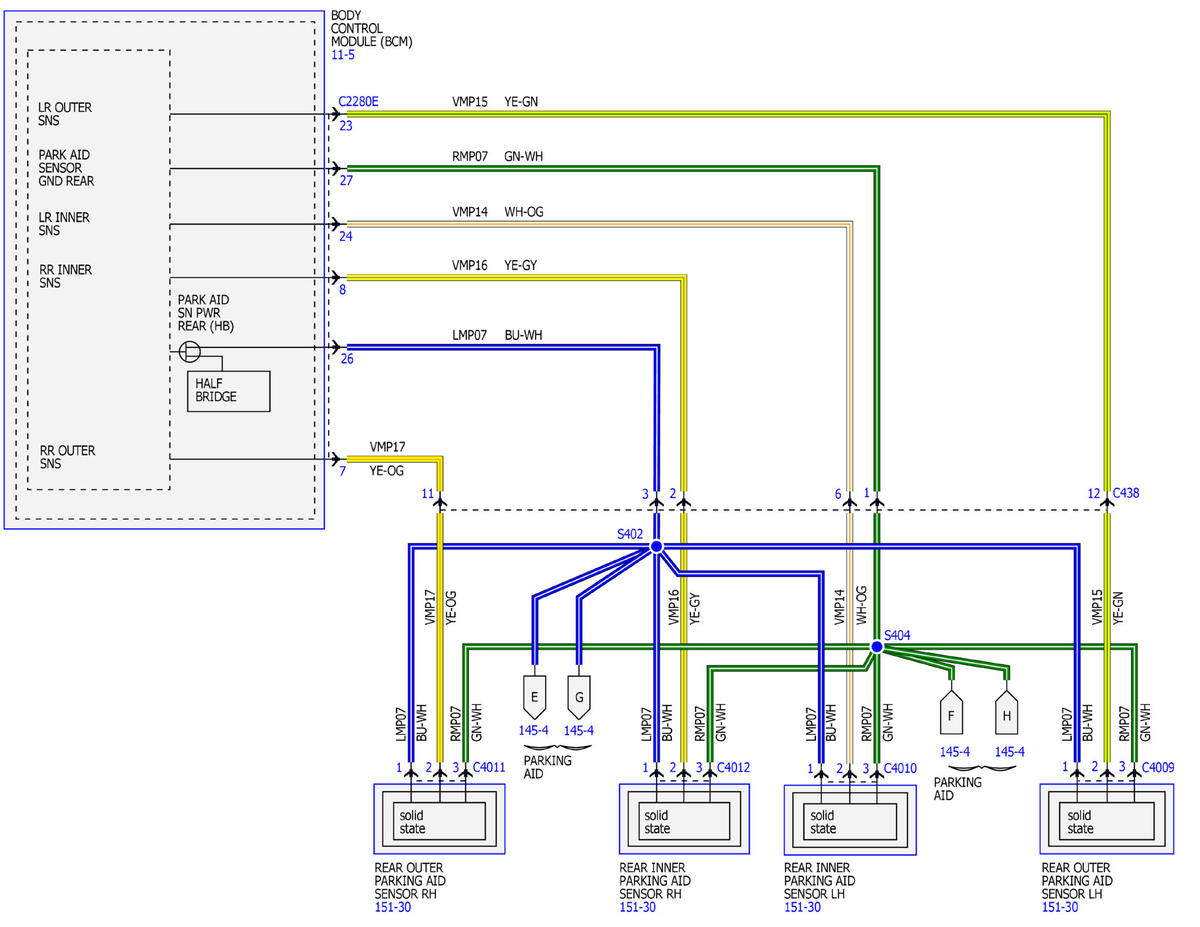

Fig 2: Parking Aid Wiring Diagram (2 Of 8)
GFDWR163751Courtesy of FORD MOTOR COMPANY

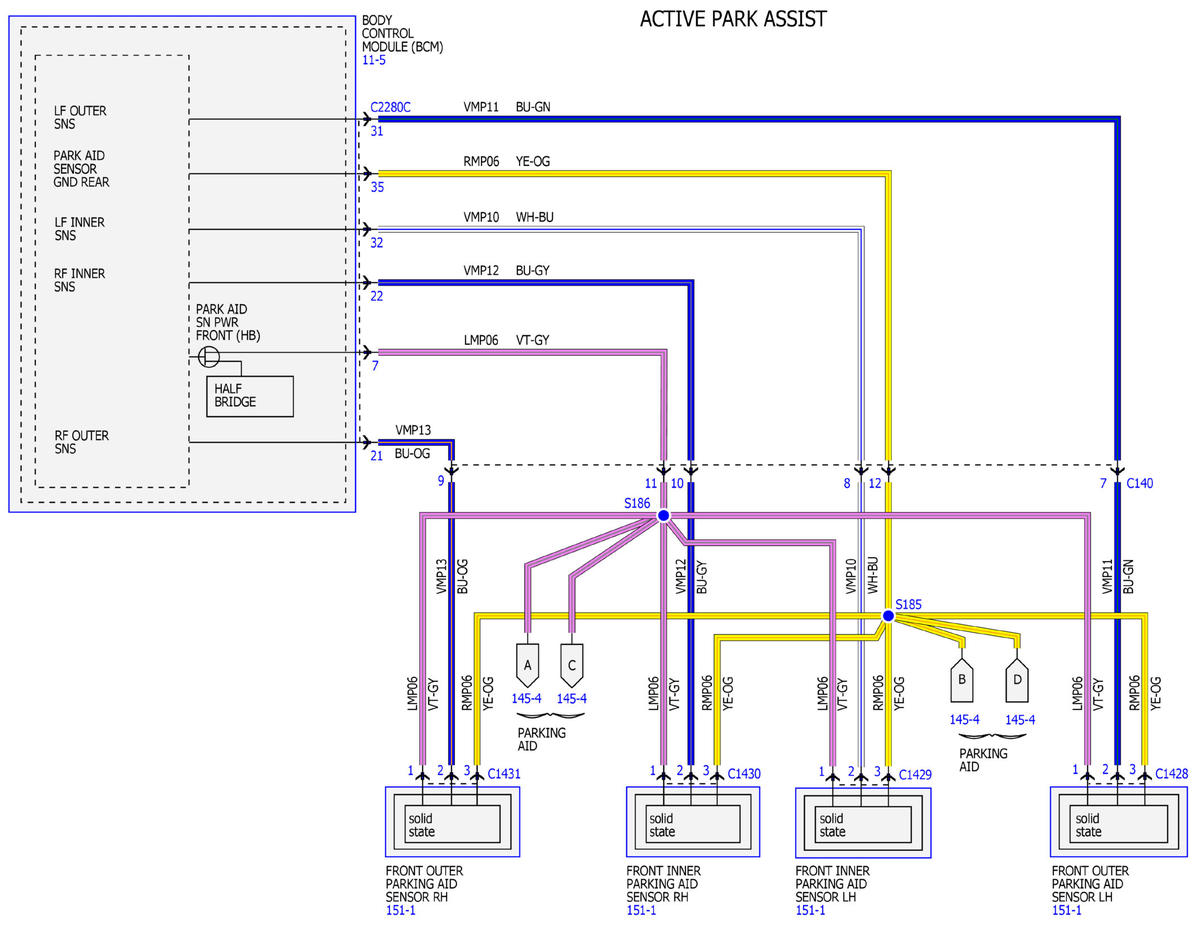

Fig 3: Parking Aid Wiring Diagram (3 Of 8)
GFDWR163752Courtesy of FORD MOTOR COMPANY

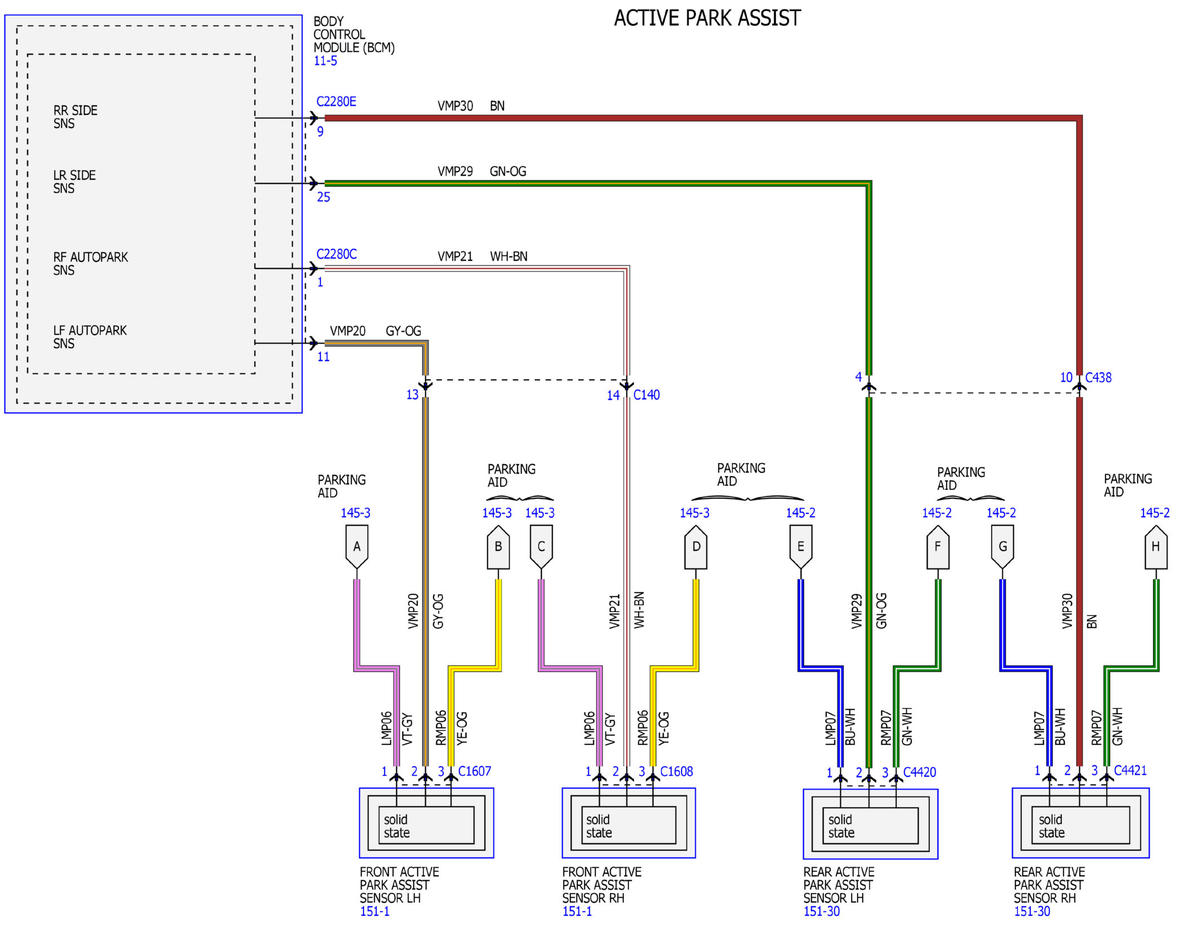

Fig 4: Parking Aid Wiring Diagram (4 Of 8)
GFDWR163753Courtesy of FORD MOTOR COMPANY

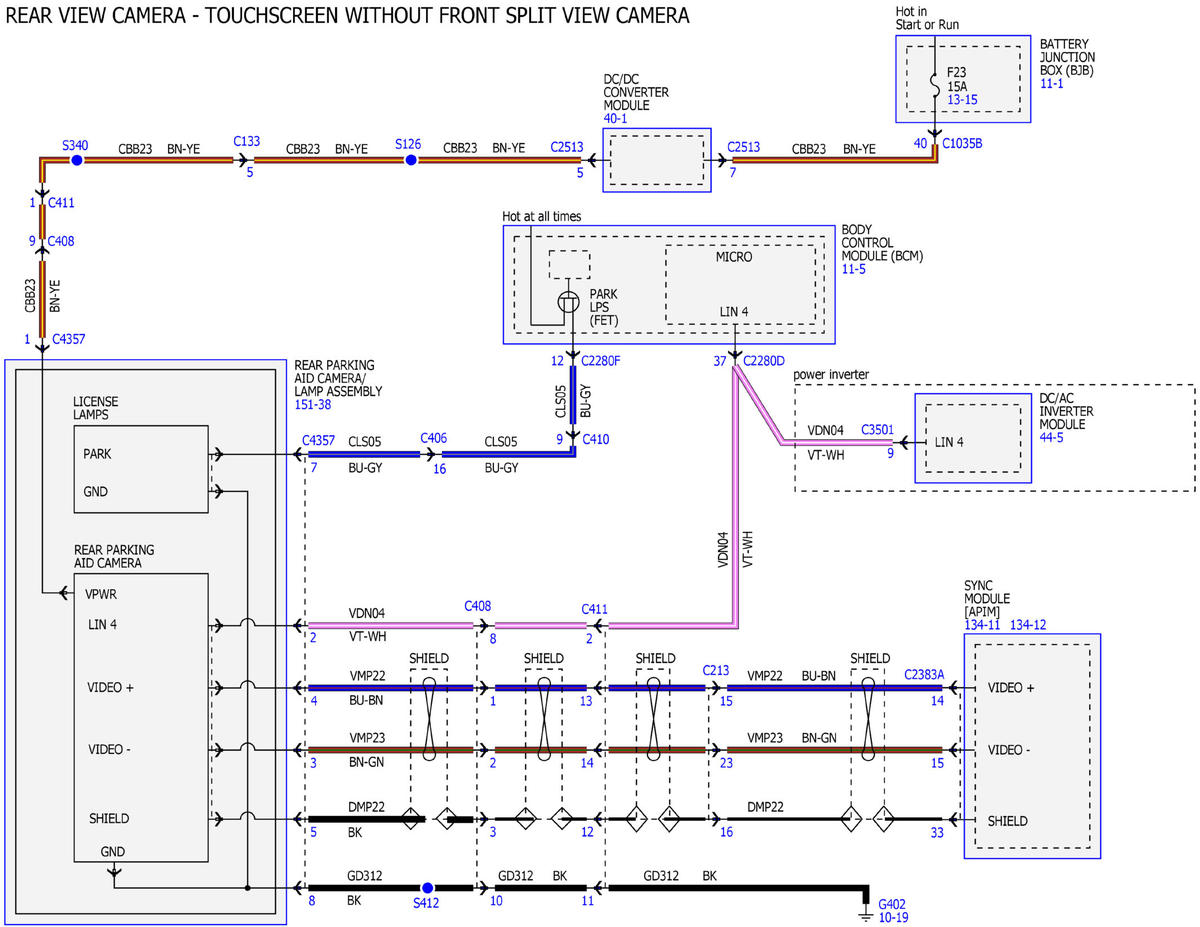

Fig 5: Parking Aid Wiring Diagram (5 Of 8)
GFDWR163754Courtesy of FORD MOTOR COMPANY
Fig 6: Parking Aid Wiring Diagram (6 Of 8)
GFDWR163755Courtesy of FORD MOTOR COMPANY

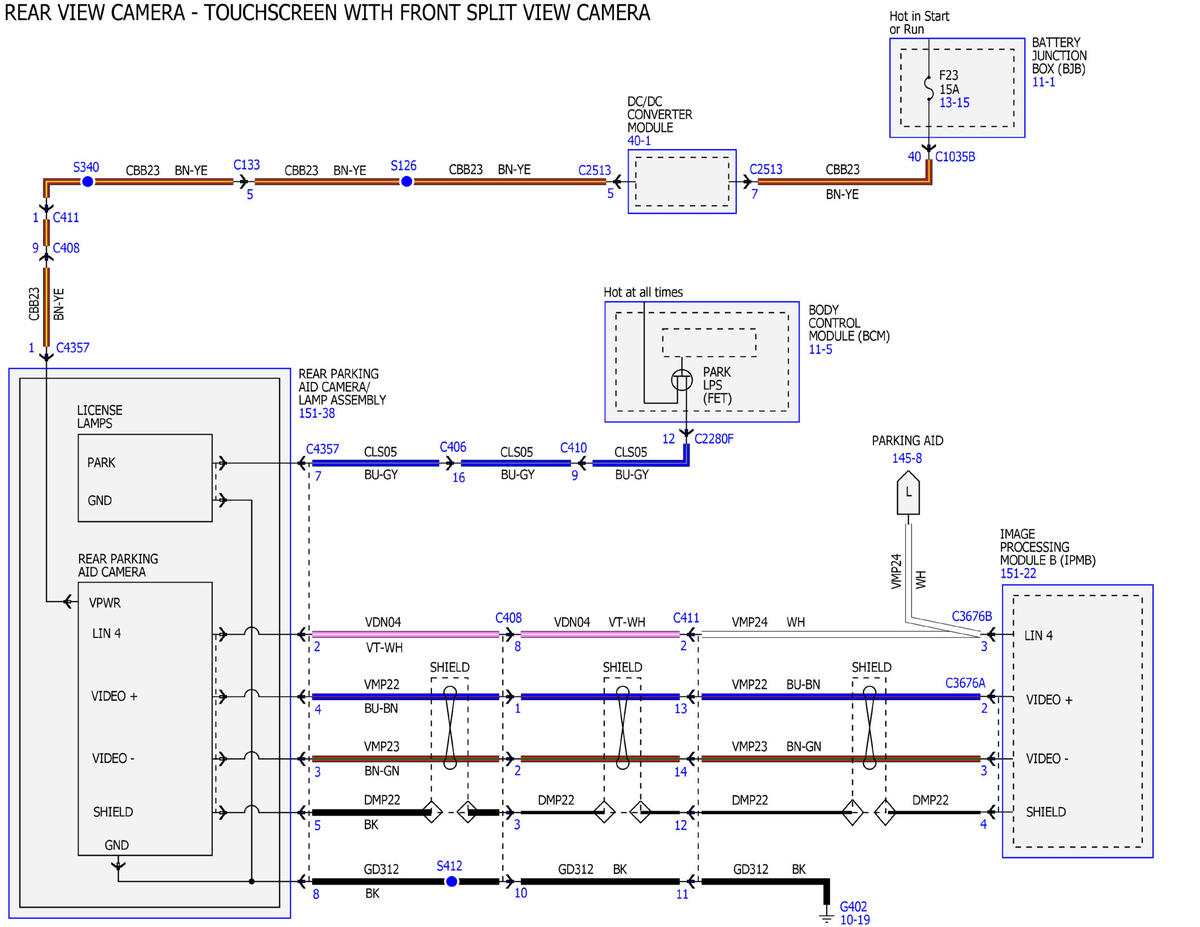

Fig 7: Parking Aid Wiring Diagram (7 Of 8)
GFDWR163756Courtesy of FORD MOTOR COMPANY

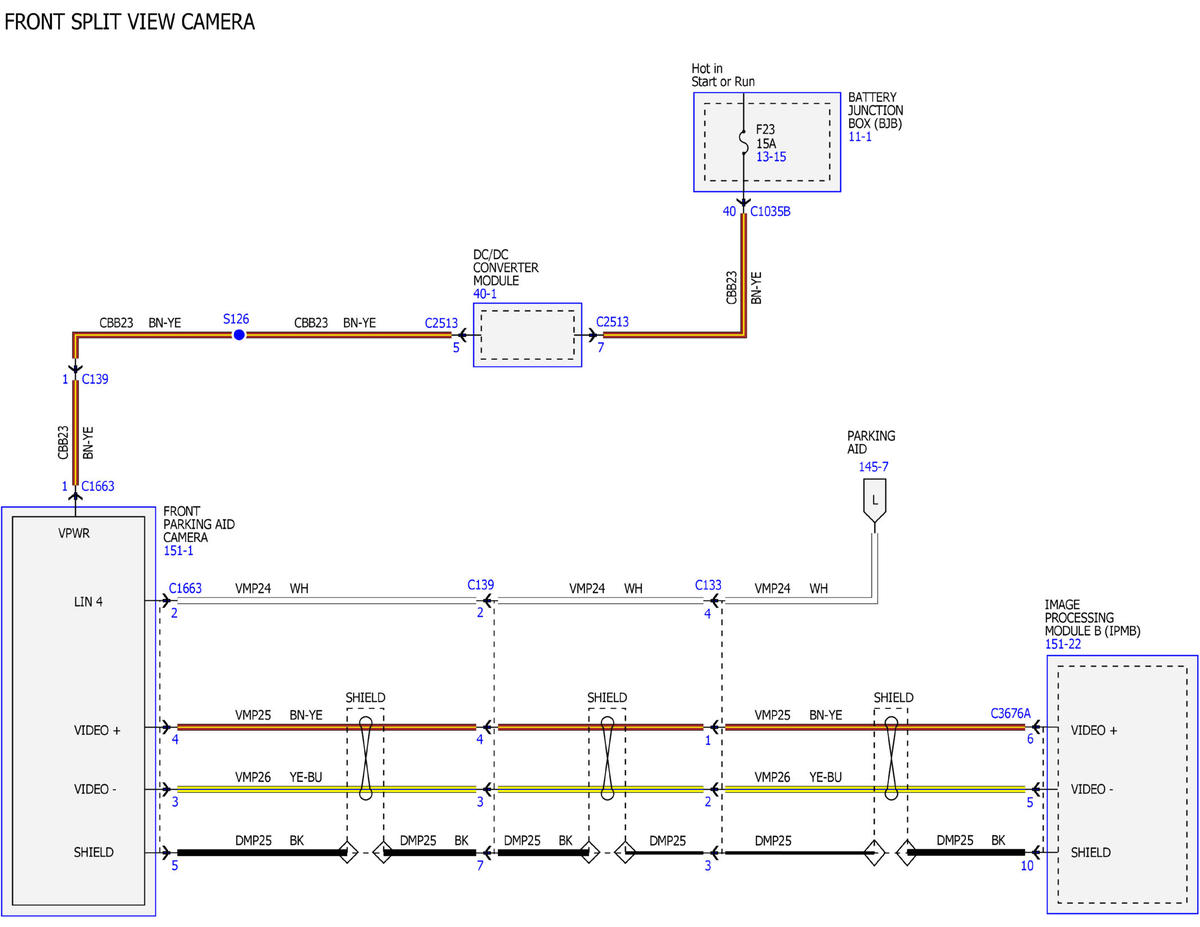

Fig 8: Parking Aid Wiring Diagram (8 Of 8)
GFDWR163757Courtesy of FORD MOTOR COMPANY
