Wheel Hub - Vehicles With: Rear Drum Brakes: Removal

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the brake shoes.
2. Remove the bolt and position aside the wheel speed sensor.

   Courtesy of FORD MOTOR COMPANY

3. Remove and discard the wheel hub retainers.

   Courtesy of FORD MOTOR COMPANY

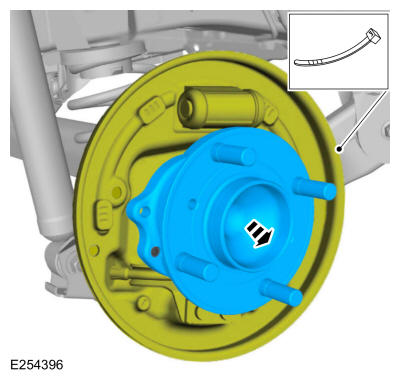

4. Remove the wheel hub and position aside the brake backing plate.

Courtesy of FORD MOTOR COMPANY
