Beam Axle - Vehicles With: Rear Drum Brakes: Installation

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

Courtesy of FORD MOTOR COMPANY
1. Install the beam axle and the new beam axle bolts. Use the General Equipment: Transmission Jack
  Torque: Stage 1: 59 lb.ft (80 Nm) Stage 2: 120deg.
NOTE: Only tighten the nuts finger tight at this stage.

On both sides. Install the rear shock absorber and install the new rear shock absorber lower bolt and nut. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY
WARNING: Take extra care when handling the compressed spring.
1. Install the spring and remove the special service tool. Use Special Service Tool: 204-167 Compressor, Coil Spring.
2. Remove the special service tool. Remove Special Service Tool: 204-167-01 Adapter for 204-167.
Courtesy of FORD MOTOR COMPANY

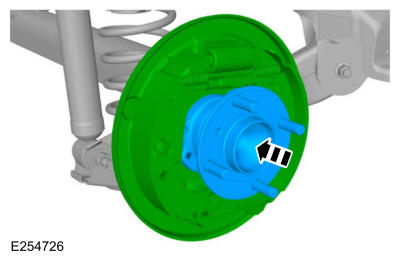

On both sides. Install the brake backing plate and the wheel hub.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new bolts are installed.

NOTE: Only tighten the bolts finger tight at this stage.

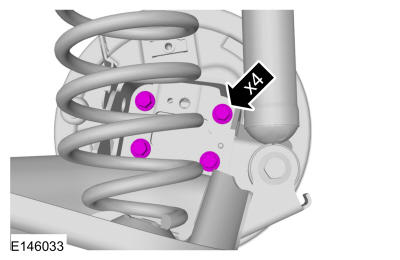

On both sides. Install the new wheel hub mounting bolts.

Courtesy of FORD MOTOR COMPANY

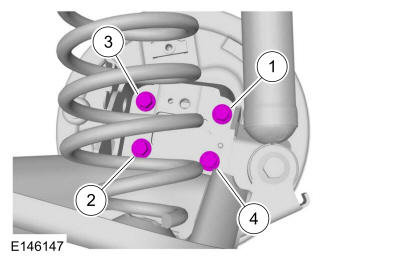

Tighten the bolts in sequence in two stages.
Torque: Stage 1: 18 lb.ft (25 Nm) Stage 2: 50deg.

Courtesy of FORD MOTOR COMPANY

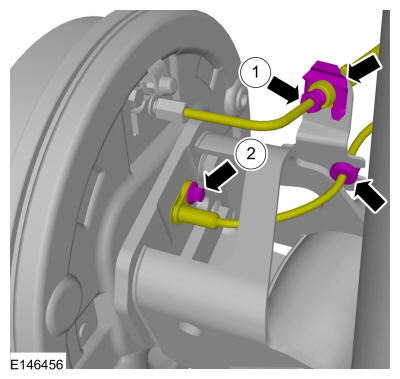

Install the bolt and the rear wheel speed sensor.
1. On both sides.
  Torque: 177 lb.in (20 Nm)
2. On both sides.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY

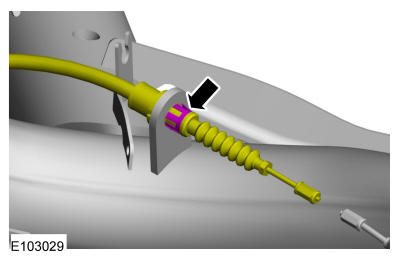

On both sides. Attach the retainer.

Courtesy of FORD MOTOR COMPANY

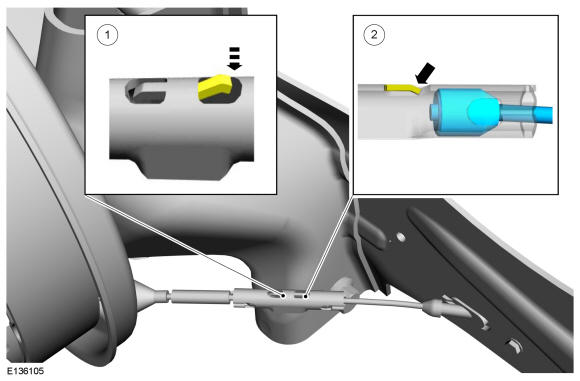

On both sides. Connect the parking brake cable.

Courtesy of FORD MOTOR COMPANY

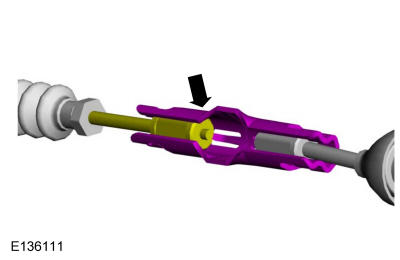

On both sides. Lock the parking brake cable.

Courtesy of FORD MOTOR COMPANY
Check and if necessary adjust the parking brake cable. Refer to: Parking Brake Cable Adjustment - Vehicles With: Rear Drum Brakes .
Install the brake drum.
On both sides. Support the rear suspension. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
On both sides. Install the new rear shock absorber lower bolt and nut. Use the General Equipment: Vehicle/Axle Stands
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
If necessary, bleed the brake system. Refer to: Brake System Pressure Bleeding .
Install the wheel and tire. Refer to: Wheel and Tire .
