Rear Shock Absorber: Disassembly

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Disassembly steps in this procedure may contain assembly details.

NOTE: Typical assembly shown. actual application may vary.

Remove the rear shock absorber. Refer to: Rear Shock Absorber .
1. NOTE: Do not use an impact wrench on the rear shock absorber inner rod nut.

  NOTE: Use the hex-holding feature to prevent the shock absorber inner rod from rotating while removing and installing the shock absorber nut.

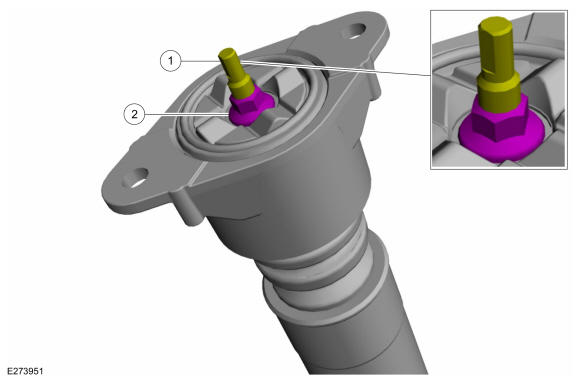

  Lock the rear shock absorber inner rod.
2. Remove the rear shock absorber nut.
Courtesy of FORD MOTOR COMPANY
NOTE: Do not use an impact wrench on the rear shock absorber inner rod nut.

NOTE: Note the position of the components before disassembly.

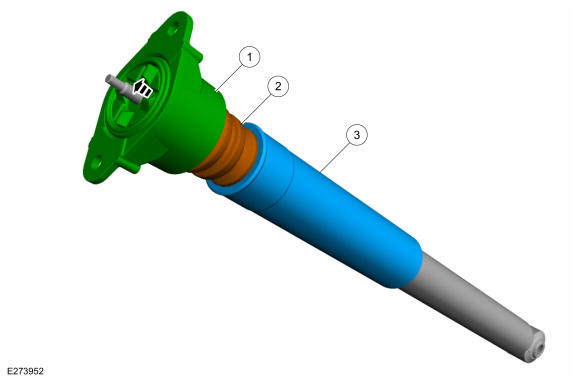

1. Remove the shock absorber top mount.
2. Remove the jounce bumper.
3. Remove the dust shield.
Courtesy of FORD MOTOR COMPANY
Inspect the shock absorber inner rod and push the rod into cylinder.
