Instrumentation, Message Center And Warning Chimes (Description And Operation)
>>
Description And Operation
>>
Warning Chimes - System Operation and Component Description
>>
System Diagrams
System Diagrams

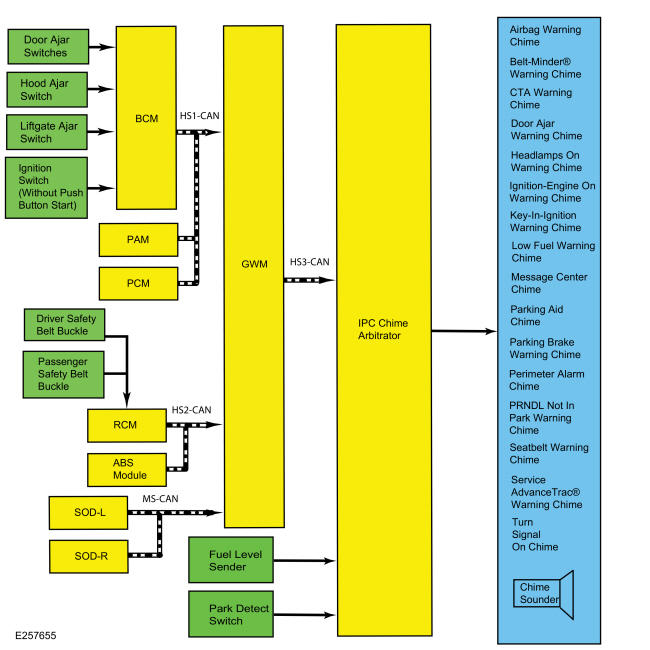

Base AM/FM Audio System
Courtesy of FORD MOTOR COMPANY

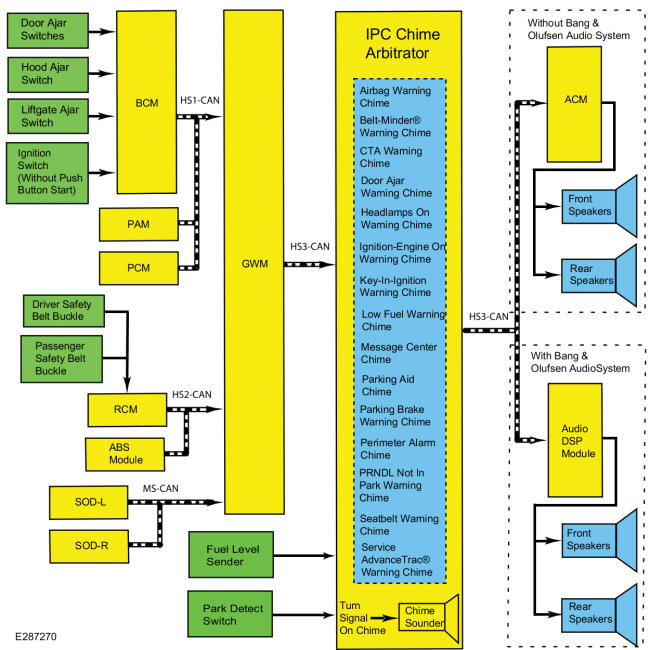

Except Base AM/FM Audio System
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
