Base IPC
Informational indicators inform the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
The RTT indicators illuminate in message center popup displays and dedicated and rotating RTT display locations, using the same iconic representation as typical LED indicators. Rotating RTT indicators display in the order the request was received by the IPC.
NOTE:

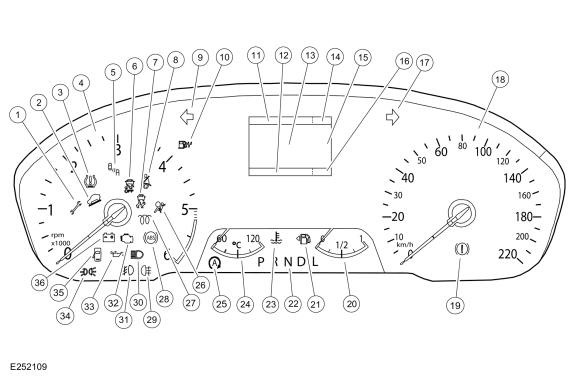

The diesel IPC is shown. The gas and North America IPC is similar.
| 1 | Powertrain malfunction (wrench) indicator |
|---|---|
| 2 | Grade assist indicator |
| 3 | TPMS indicator |
| 4 | Tachometer |
| 5 | BLIS off indicator |
| 6 | Stabilty-traction control disabled (sliding car OFF icon) indicator |
| 7 | Stabilty-traction control (sliding car icon) indicator |
| 8 | Seatbelt warning indicator |
| 9 | LH turn indicator |
| 10 | Water-in-fuel indicator (diesel only) |
| 11 | Message center menu display |
| 12 | Trip odometer mileage display area |
| 13 | Main message center display area Odometer display area |
| 14 | Outside Air Temperature (OAT) display |
| 15 | Sub-menu location identification |
| 16 | Compass display Rotating RTT display area Cruise control RTT indicator Frost RTT indicator Upshift/downshift RTT indicator |
| 17 | RH turn indicator |
| 18 | Speedometer |
| 19 | Brake warning indicator |
| 20 | Fuel gauge |
| 21 | Low fuel indicator |
| 22 | PRNDL display |
| 23 | Engine over-temperature warning indicator |
| 24 | Temperature gauge |
| 25 | Auto stop-start indicator (if equipped) |
| 26 | Airbag warning indicator |
| 27 | Wait to start indicator (diesel and E100 only) |
| 28 | ABS indicator |
| 29 | Rear fog lamp indicator (if equipped) |
| 30 | High beam indicator |
| 31 | Front fog lamp indicator |
| 32 | MIL |
| 33 | Low oil pressure warning indicator |
| 34 | Lights on (side marker position) indicator |
| 35 | Door ajar indicator |
| 36 | Charging system warning indicator |
