Instrument Panel Cluster (IPC) Lens: Removal

  1. Remove the IPC. Refer to: Instrument Panel Cluster (IPC) .

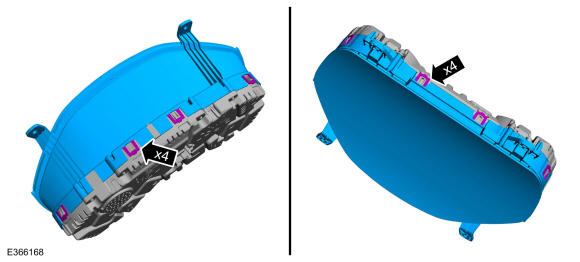

  2. Release the tabs and remove the IPC lens.
GFD640089Courtesy of FORD MOTOR COMPANY
