Parking Assist Control Module (PAM): Removal

NOTE: If installing a new PAM, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new PAM after installation.

Using a diagnostic scan tool, begin the PMI process for the PAM following the onscreen instructions.
Release the clips and remove the lower steering column opening trim panel.

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

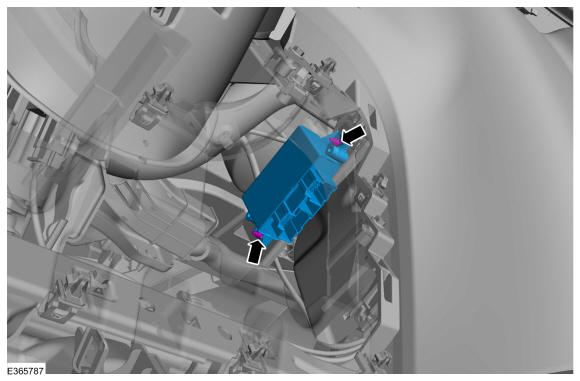

Release the retainers and remove the PAM.

Courtesy of FORD MOTOR COMPANY
