Fuse And Relay Location

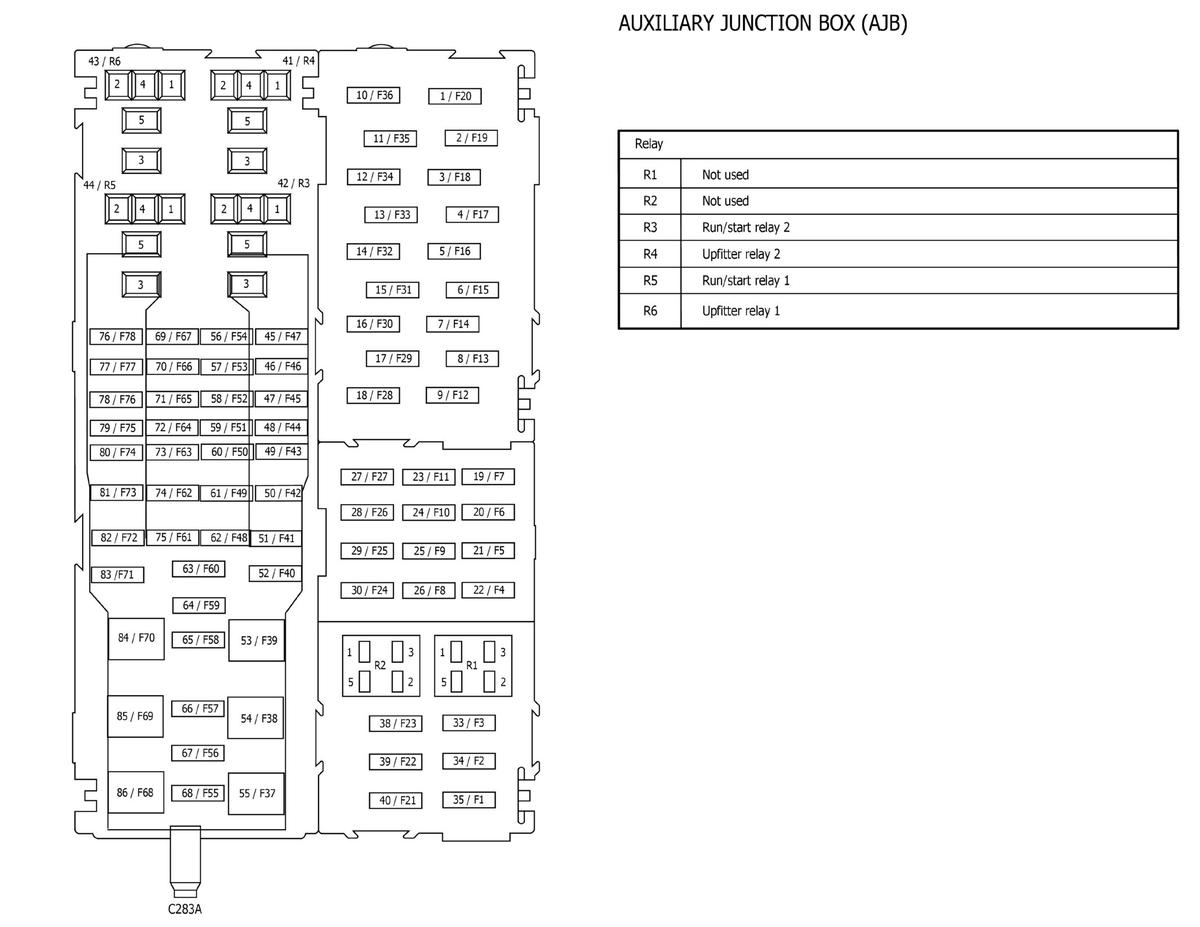

Fig 1: Auxiliary Junction Box (AJB) Components Location and Legend

Courtesy of FORD MOTOR COMPANY

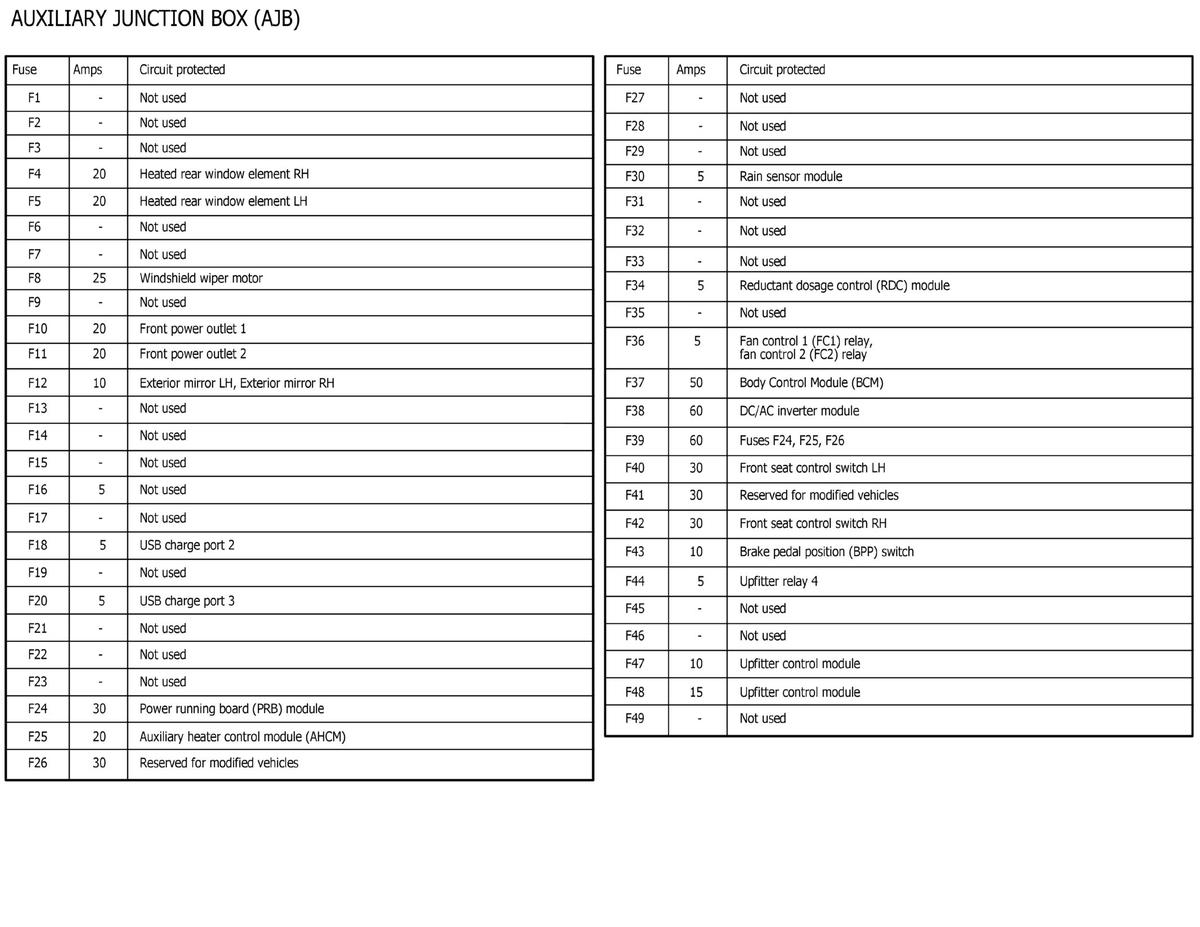

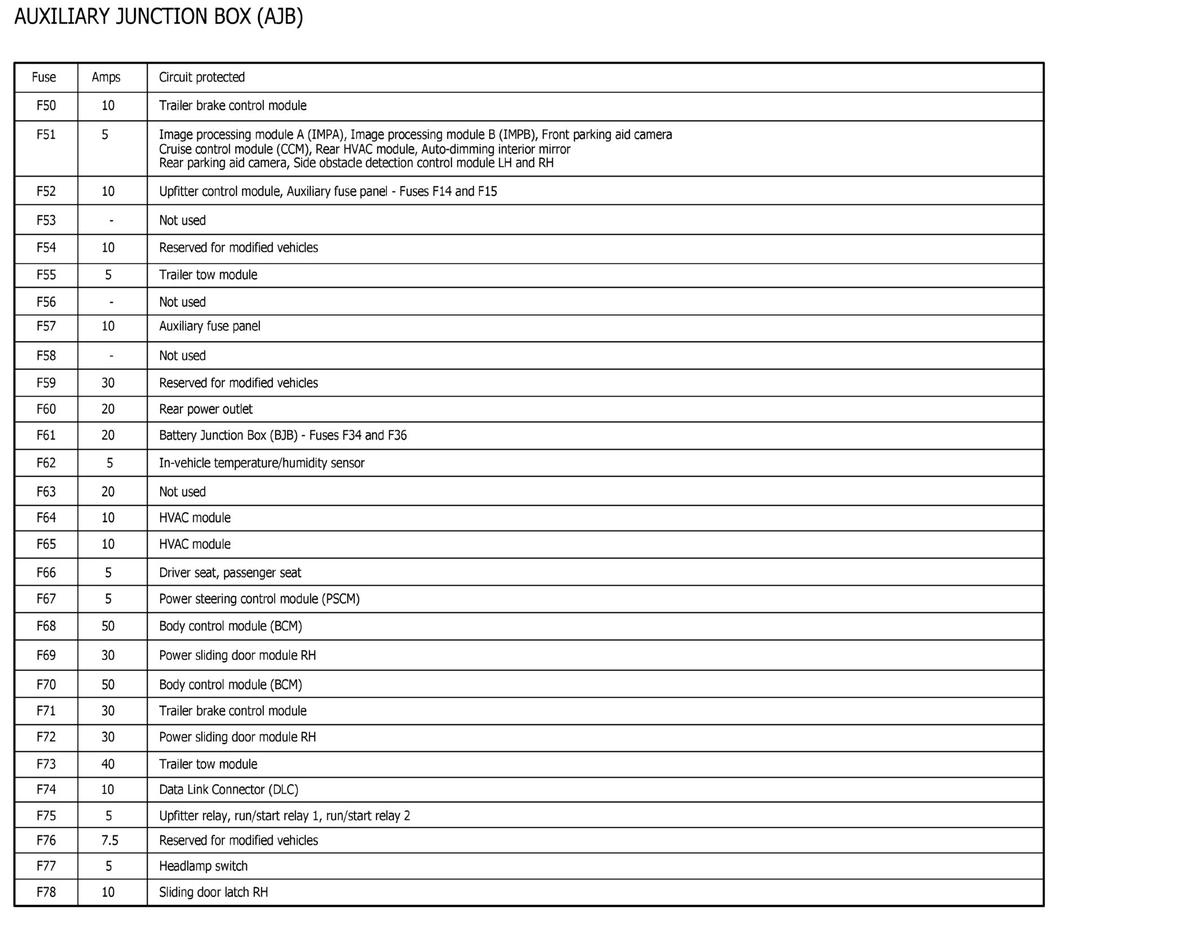

Fig 2: Auxiliary Junction Box Components Location Legend (1 of 2)

Courtesy of FORD MOTOR COMPANY

Fig 3: Auxiliary Junction Box Components Location Legend (2 of 2)

Courtesy of FORD MOTOR COMPANY

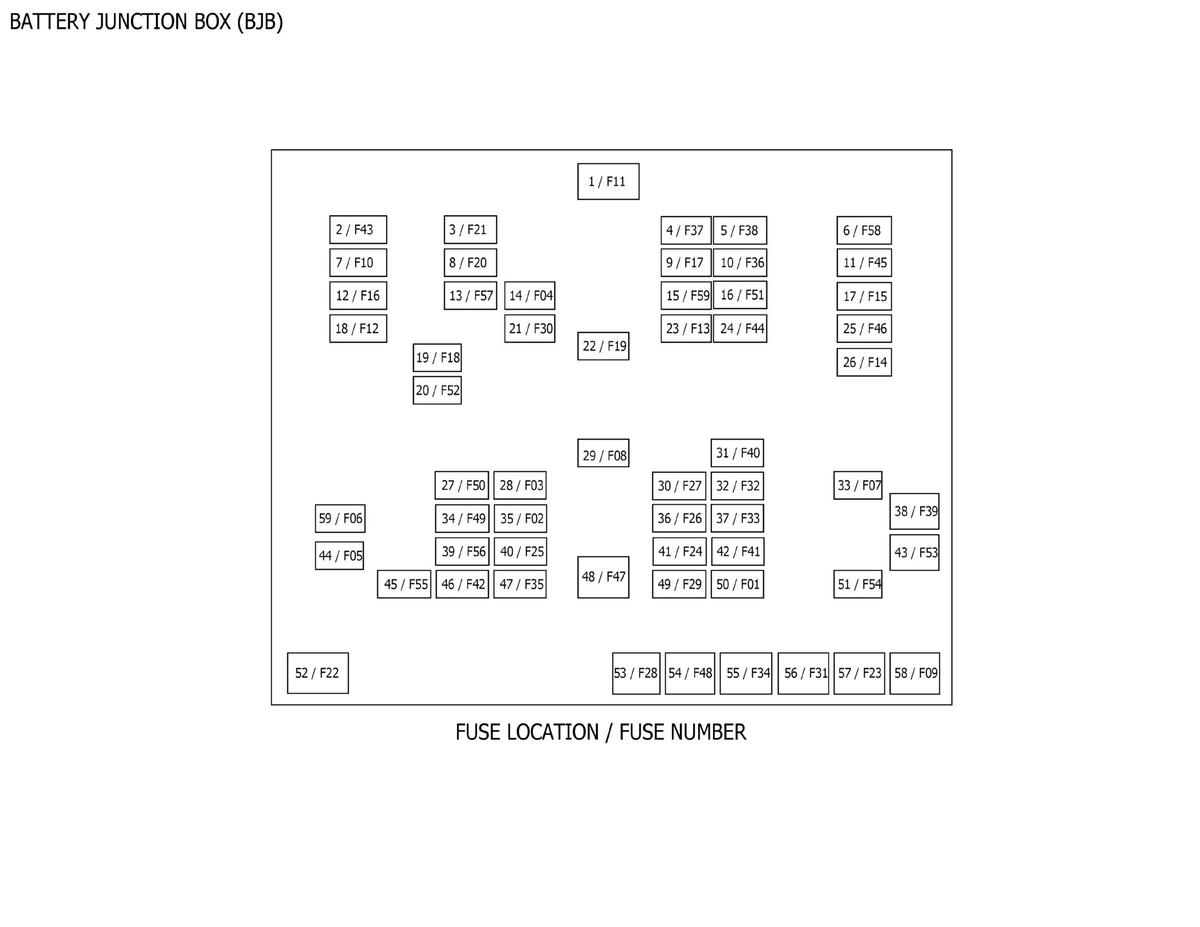

Fig 4: Battery Junction Box Components Location

Courtesy of FORD MOTOR COMPANY

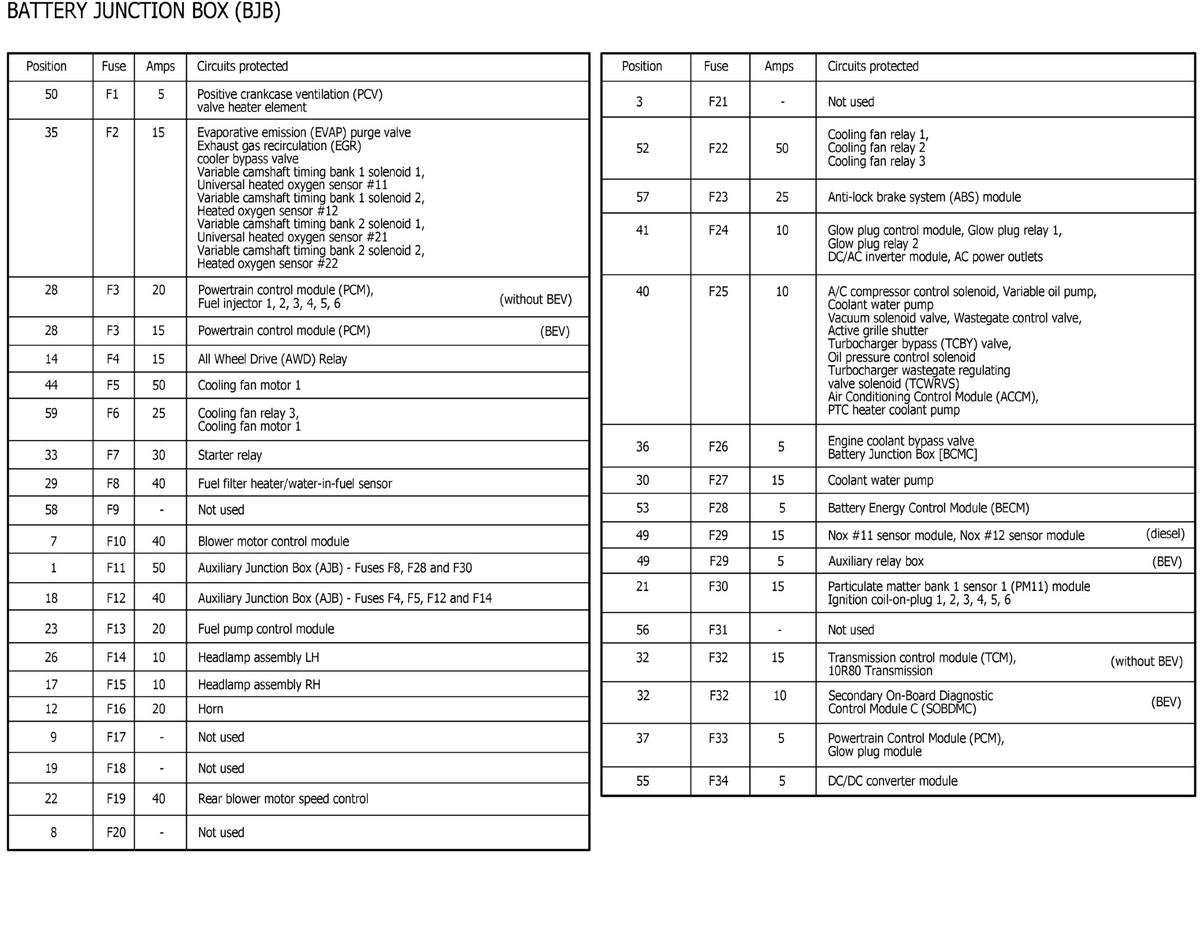

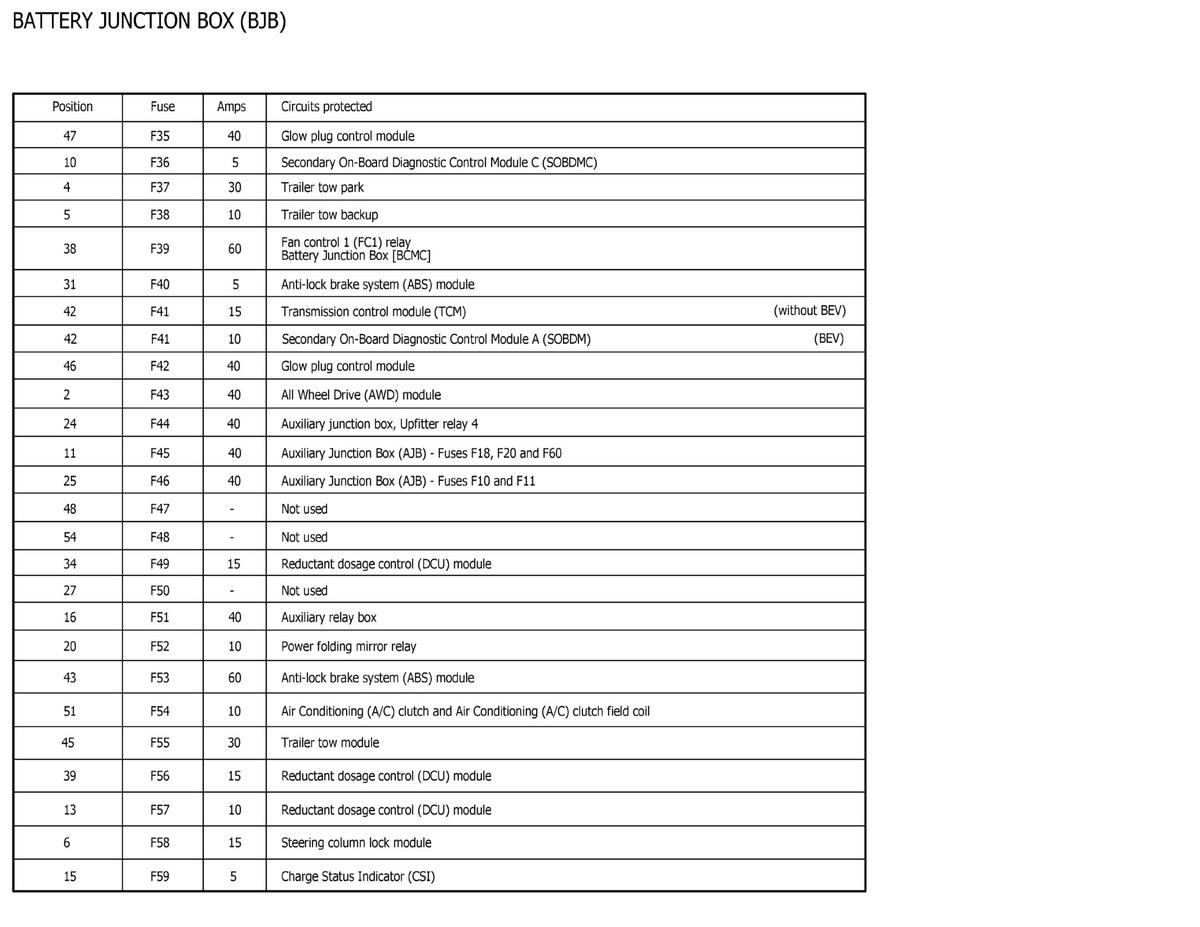

Fig 5: Battery Junction Box Components Location Legend (1 of 2)

Courtesy of FORD MOTOR COMPANY

Fig 6: Battery Junction Box Components Location Legend (2 of 2)

Courtesy of FORD MOTOR COMPANY

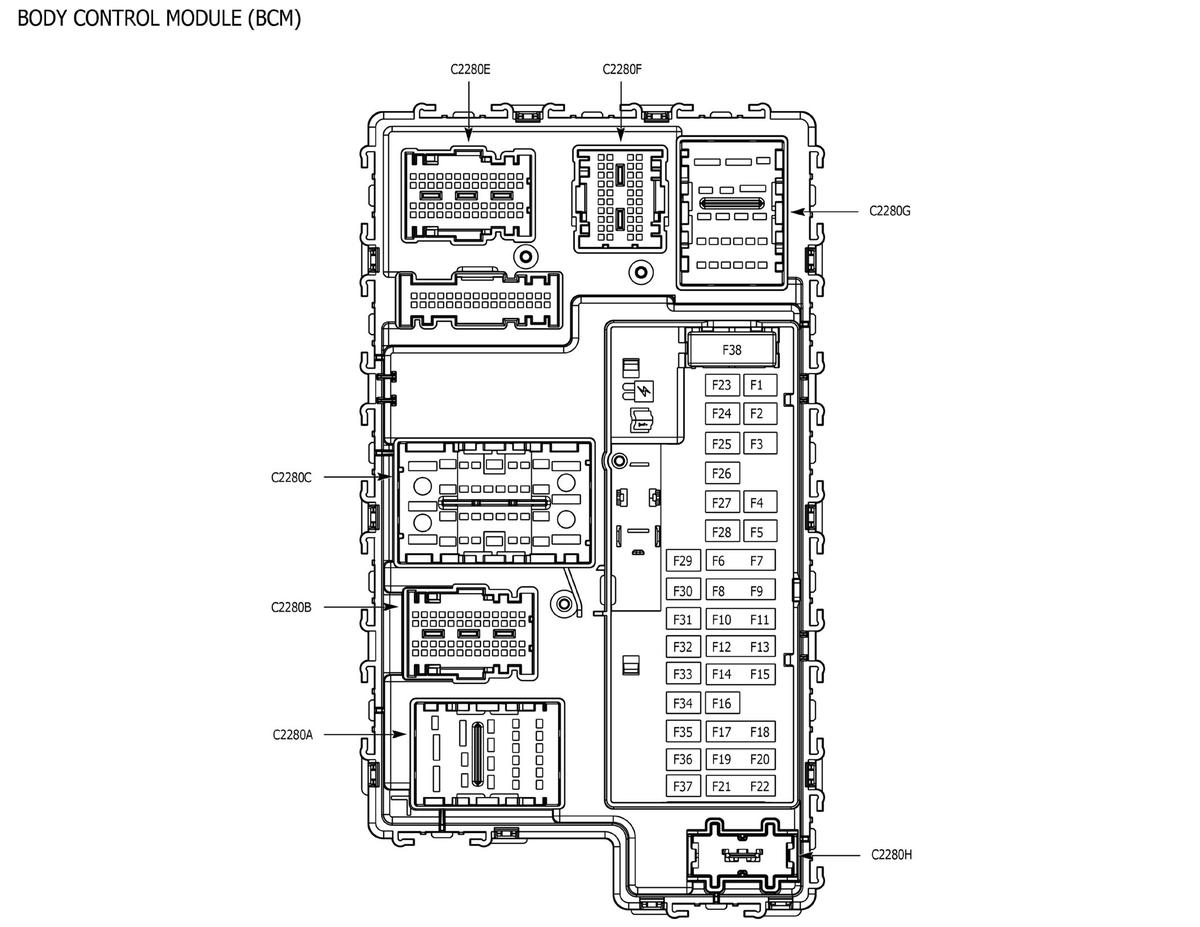

Fig 7: Body Control Module (BCM) Components Location

Courtesy of FORD MOTOR COMPANY

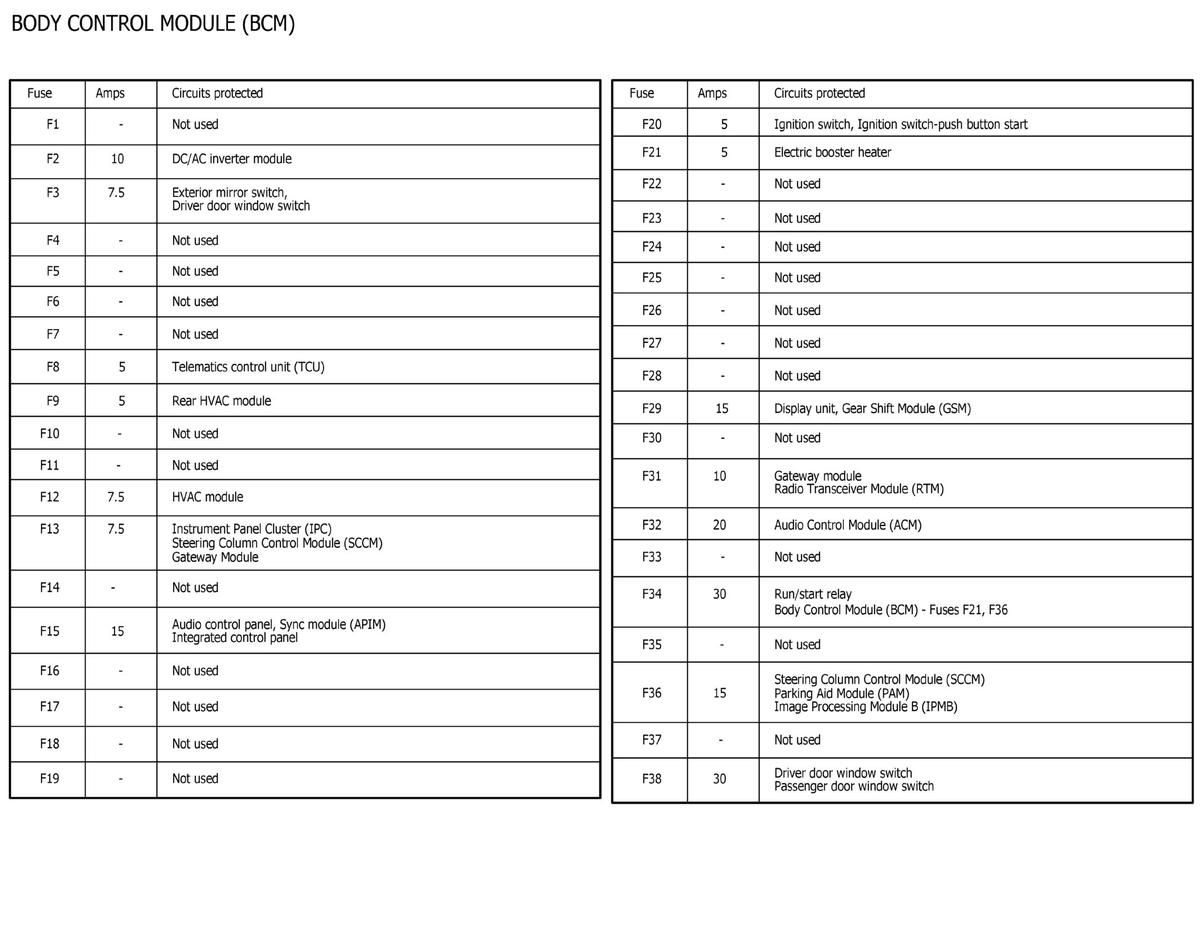

Fig 8: Body Control Module (BCM) Components Location Legend

Courtesy of FORD MOTOR COMPANY

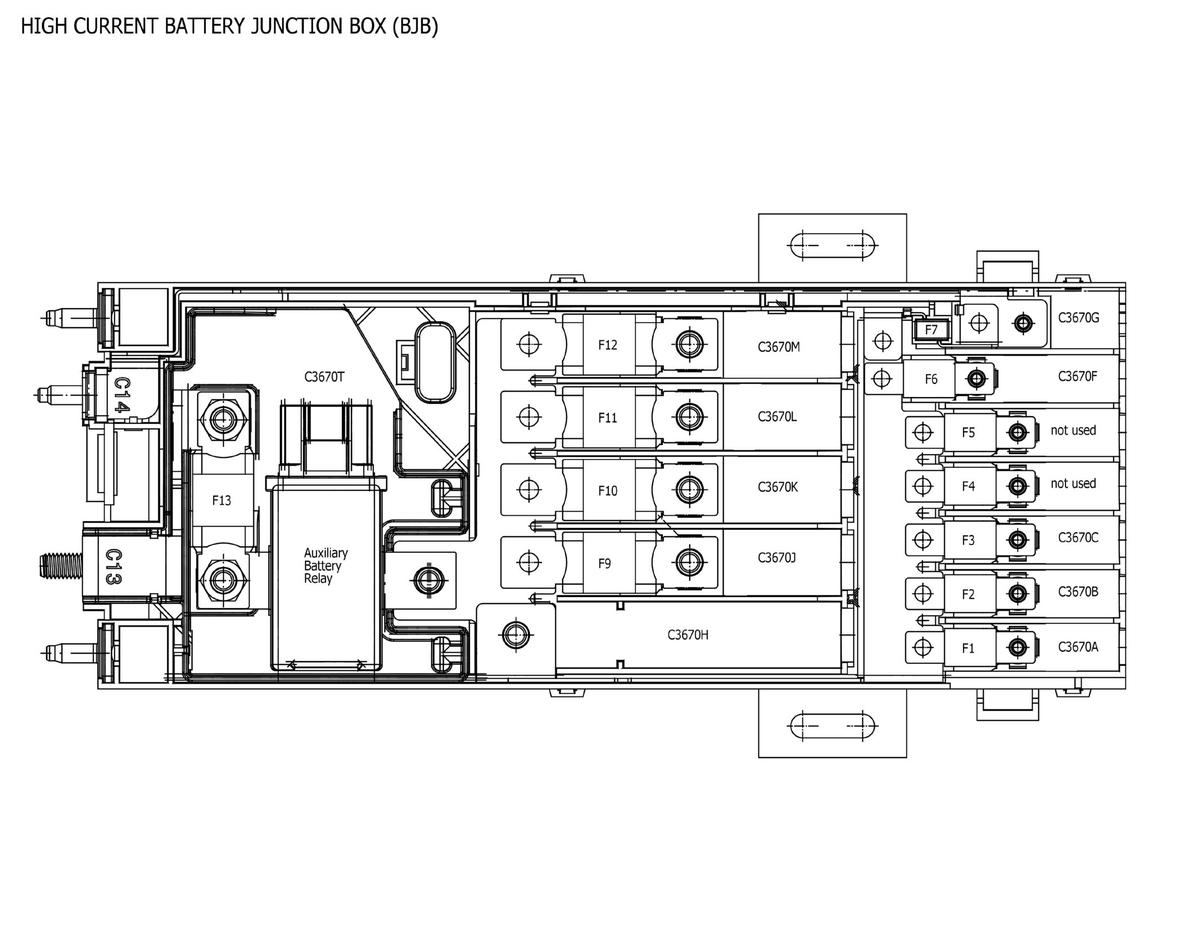

Fig 9: High Current Battery Junction Box Components Location

Courtesy of FORD MOTOR COMPANY

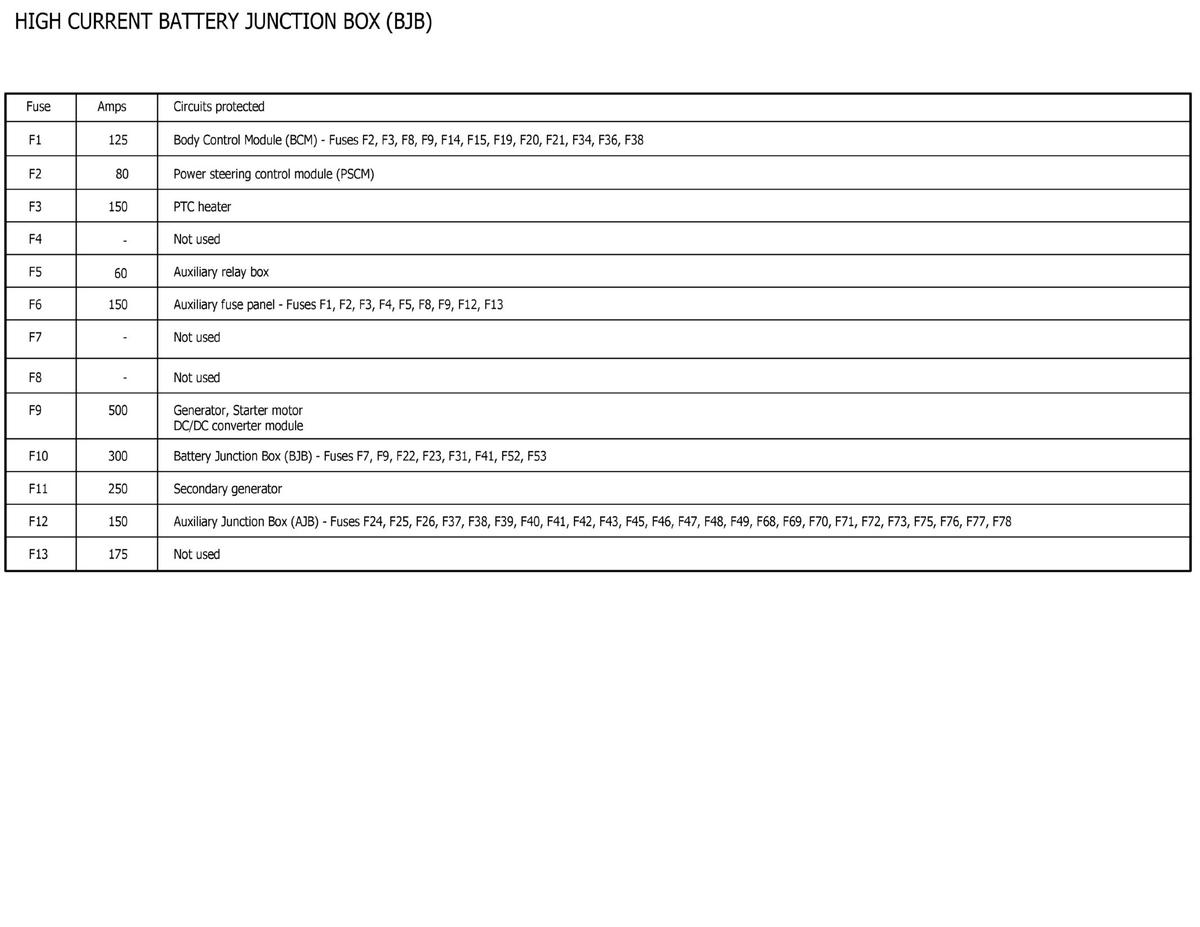

Fig 10: High Current Battery Junction Box Components Location Legend

Courtesy of FORD MOTOR COMPANY

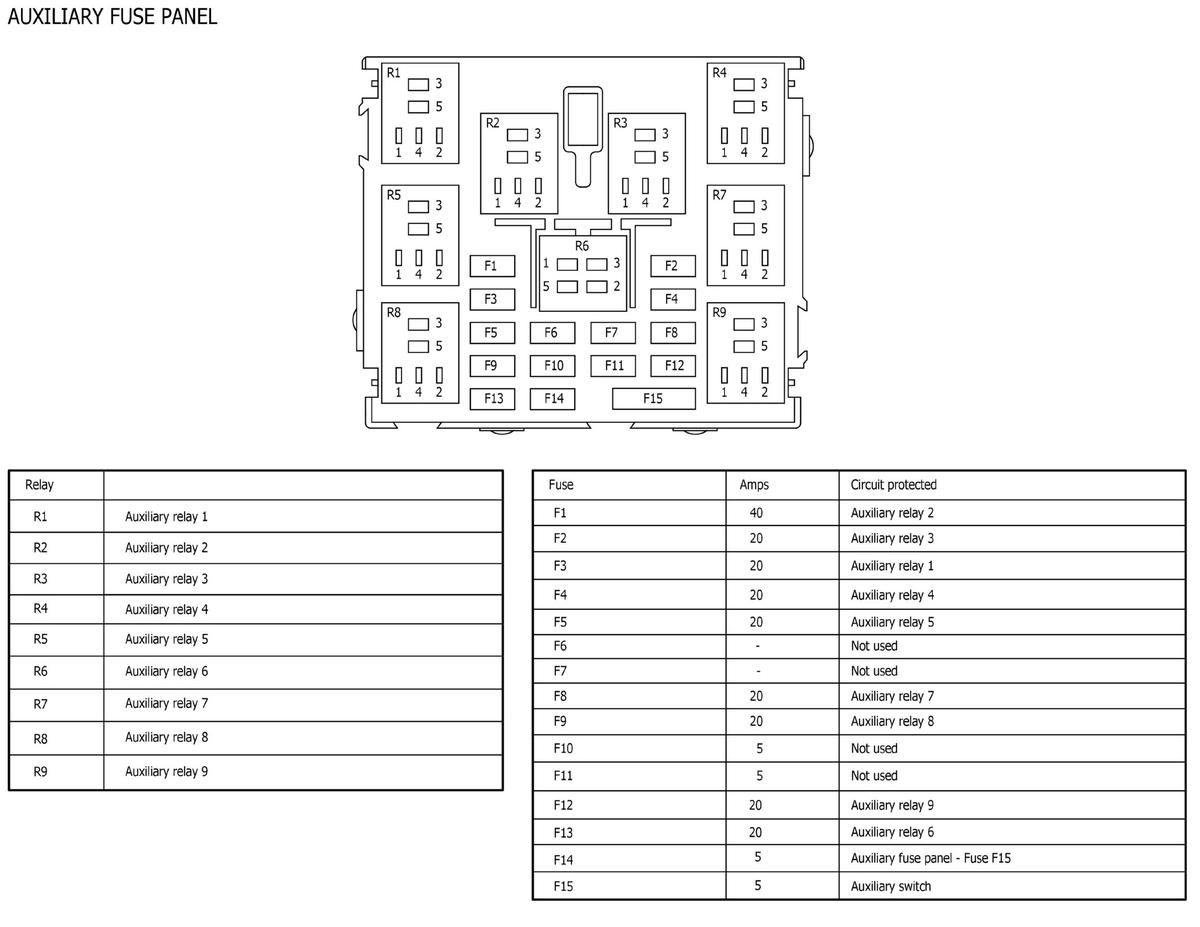

Fig 11: Auxiliary Fuse Panel Components Location and Legend

Courtesy of FORD MOTOR COMPANY

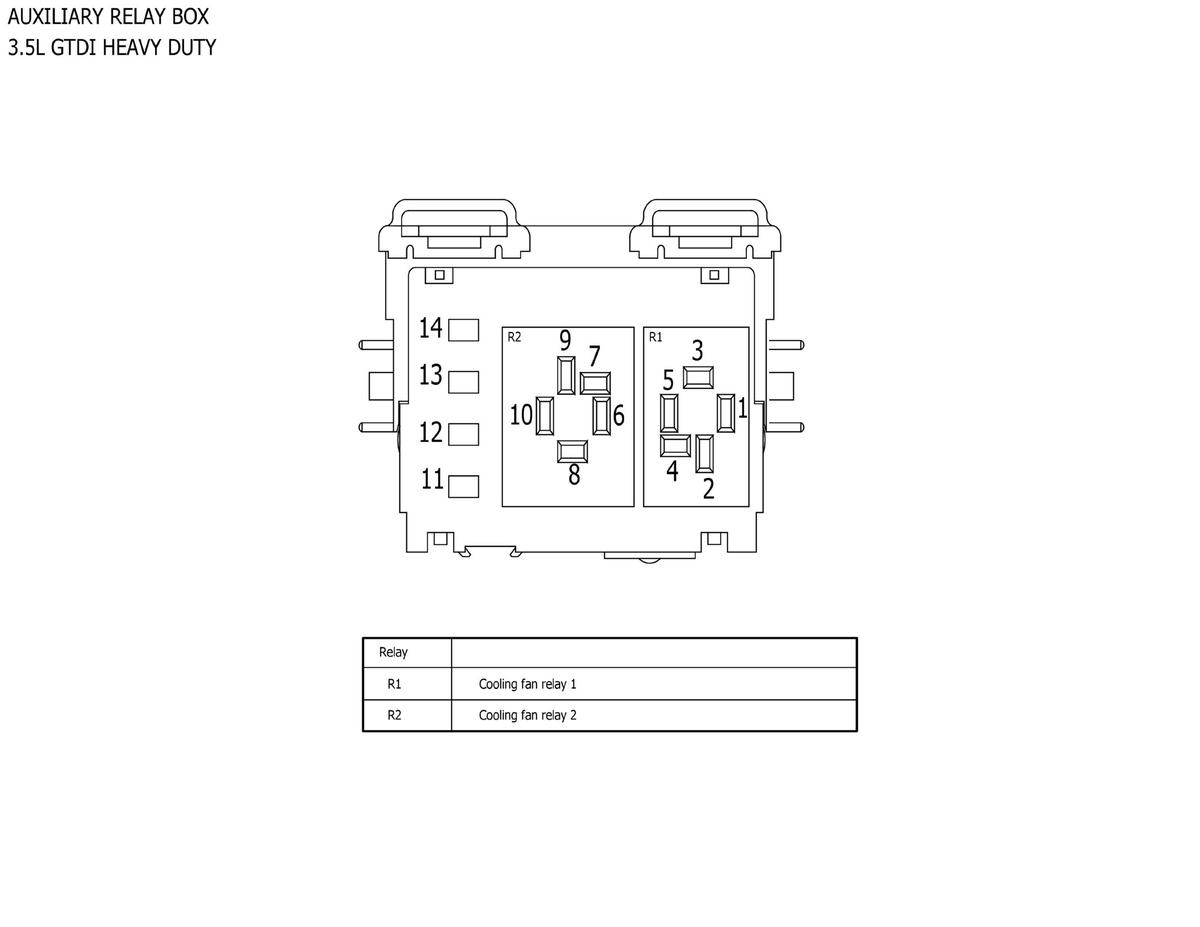

Fig 12: Auxiliary Relay Box (3.5L GTDI Heavy Duty) Components Location and Legend

Courtesy of FORD MOTOR COMPANY
