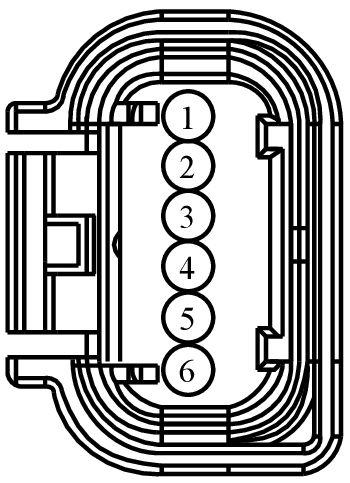

Connector End View C4360 - REAR PARKING AID CAMERA

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4360	REAR PARKING AID CAMERA	13B658			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CB125 (WH-OG)	18	FUSE - 25 OR CIRCUIT BREAKER	N/A
2	VDN04 (VT-WH)	18	CTRL MOD. - LIN BUS # SPDJB 4	N/A
3	RMP19 (BN-VT)	18	CAMERA - PARKING AID REAR VIDEO -	N/A
4	VMP19 (WH-GN)	18	CAMERA - PARKING AID REAR VIDEO +	N/A
5	GD236 (BK-GN)	18	GROUND - COWL SIDE/PILLAR A LEFT # 4TH POINT	N/A
6	DMP19 (BK)	18	CAMERA - PARKING AID REAR VIDEO D	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1556

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AEB

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Camera - Front
• Camera - Reverse Park Aid

Pigtail Kit Part Number WPT-1280

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AEA

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Camera - Reverse Park Aid
