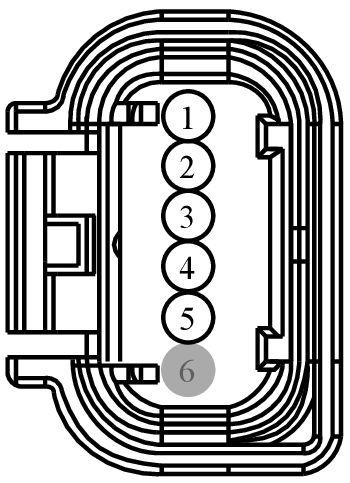

Connector End View C4357 - REAR PARKING AID CAMERA

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4357	REAR PARKING AID CAMERA	BK	13B551	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8U5T-14474-CB	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CB129 (WH-VT)	18	FUSE - 29 OR CIRCUIT BREAKER	8U5T-14474-CB
2	VMP24 (WH)	18	CTRL MOD. - REAR PARK ASSIST CAMERA LIN BUS	8U5T-14474-CB
3	RMP19 (BN-VT)	18	CAMERA - PARKING AID REAR VIDEO -	8U5T-14474-CB
4	VMP19 (WH-GN)	18	CAMERA - PARKING AID REAR VIDEO +	8U5T-14474-CB
5	DMP22 (SI)	18	CAMERA - REAR PARK ASSIST D	8U5T-14474-CB
6	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1556

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AEB

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Camera - Front
• Camera - Reverse Park Aid

Pigtail Kit Part Number WPT-1280

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AEA

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Camera - Reverse Park Aid
