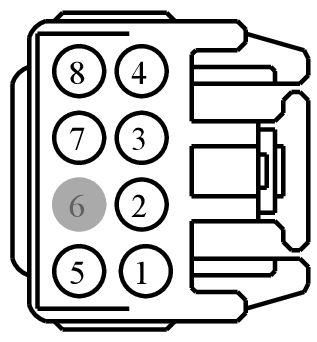

Connector End View C535A - DRIVER DOOR WINDOW CONTROL SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C535A	DRIVER DOOR WINDOW CONTROL SWITCH	LT GY	14A631	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-BCA	DU2Z-14474-EA	2.80
97BG-14474-BAA	DU2Z-14474-EA	2.80

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPW12 (GN-OG)	14	SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER DOWN	97BG-14474-BCA
2	GD234 (BK-VT)	14	GROUND - COWL SIDE/PILLAR A LEFT # 2ND POINT	97BG-14474-BCA
3	CPW11 (BU-GY)	14	SWITCH - POWER WINDOW DRIVER # DRIVER UP	97BG-14474-BCA
4	CPW13 (BN-YE)	14	SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER UP	97BG-14474-BCA
5	CPW10 (YE-VT)	14	SWITCH - POWER WINDOW DRIVER # DRIVER DOWN	97BG-14474-BCA
6	*	*	Not Used	N/A
7	CBP38 (GY-BU)	14	FUSE - 38 OR CIRCUIT BREAKER	97BG-14474-BCA
8	SBP03 (BU-RD)	20	FUSE - 3 OR CIRCUIT BREAKER	97BG-14474-BAA
