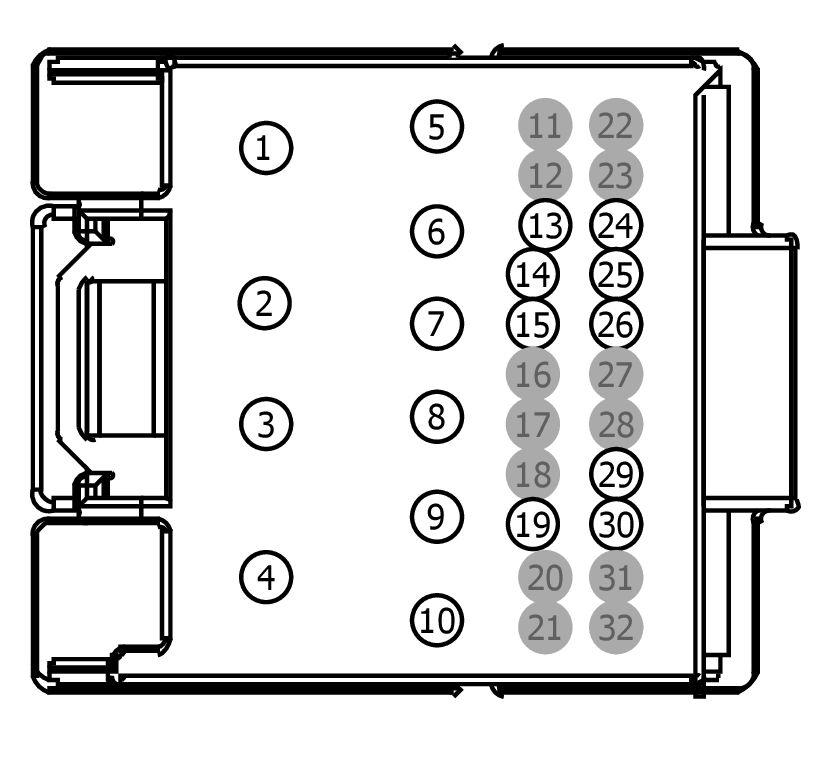

Connector End View C240A - AUDIO CONTROL MODULE (ACM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C240A	AUDIO CONTROL MODULE (ACM)	14C007/14K024			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8U5T-14474-CB	Not Available
97BG-14474-BCA	DU2Z-14474-EA	2.80
AU5T-14474-BA	DU2Z-14474-DA	1.50
DU5T-14474-DBB	DU2Z-14474-DA	1.50
XF2T-14474-DA	DU2Z-14474-EA	2.80
DU5T-14474-EAB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP33 (RD)	16	FUSE - 33 OR CIRCUIT BREAKER	97BG-14474-BCA
2	RME10 (WH-OG)	16	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT DOOR FULL RANGE -	AU5T-14474-BA
3	VME10 (WH-VT)	18	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT FRONT DOOR FULL RANGE +	DU5T-14474-DBB
4	GD214 (BK-BU)	12	INSTRUMENT PANEL STRUCTURE	XF2T-14474-DA
5	RME09 (BN-YE)	16	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR WOOFER -	AU5T-14474-BA
6	VME09 (WH-GN)	16	CTRL MOD. - AMPLIFIER # SPEAKER LEFT REAR WOOFER +	AU5T-14474-BA
7	RME07 (WH-BN)	16	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT FULL RANGE -	AU5T-14474-BA
8	VME07 (WH)	18	CTRL MOD. - AMPLIFIER # SPEAKER LEFT FRONT FULL RANGE +	DU5T-14474-DBB
9	RME12 (BN-BU)	16	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR WOOFER -	AU5T-14474-BA
10	VME12 (BN-WH)	16	CTRL MOD. - AMPLIFIER # SPEAKER RIGHT REAR WOOFER +	AU5T-14474-BA
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	DMM13 (SI)	22	MICROPHONE - PHONE/VOICE CONTROL D	DU5T-14474-EAB
14	VMEG1 (GY-VT)	22	CTRL MOD. - BLUETOOTH MOD DATA LINK +	DU5T-14474-EAB
14	VMP19 (WH-GN)	18	CAMERA - PARKING AID REAR VIDEO +	8U5T-14474-CB
15	VMM13 (WH-GN)	18	MICROPHONE - PHONE/VOICE CONTROL +	8U5T-14474-CB
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	DU5T-14474-EAB
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	DMP19 (SI)	22	CAMERA - PARKING AID REAR VIDEO D	DU5T-14474-EAB
25	VMEG2 (YE-OG)	22	CTRL MOD. - BLUETOOTH MOD DATA LINK -	DU5T-14474-EAB
25	RMP19 (BU-GY)	18	CAMERA - PARKING AID REAR VIDEO -	8U5T-14474-CB
26	RMM13 (BN-VT)	18	MICROPHONE - PHONE/VOICE CONTROL -	8U5T-14474-CB
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	VMC49 (VT-GY)	22	CTRL MOD. - INTEGRATED CONTROL PANEL LIN BUS	DU5T-14474-EAB
30	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	DU5T-14474-EAB
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
