Connector End View C211 - INLINE
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C211 | INLINE | NA | 1440113A409 | See Below | ||||

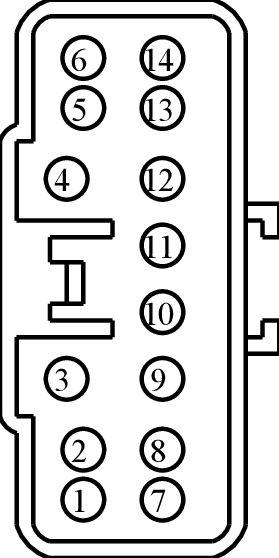

MALE
Harness
14401

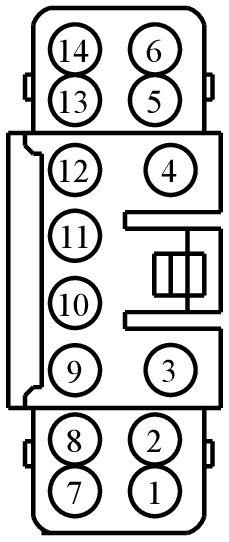

FEMALE
Harness
13A409
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-MA | DU2Z-14474-BA | 0.64 |
| 97BG-14421-BCA | EU2Z-14421-EA | 2.80 |
| 97BG-14421-BAA | EU2Z-14421-EA | 2.80 |
| 97BG-14474-BCA | DU2Z-14474-EA | 2.80 |
| 97BG-14474-BAA | DU2Z-14474-EA | 2.80 |
| 1L2T-14421-AA | EU2Z-14421-AA | 0.64 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | VR221 (BU-GN) | 20 | 1L2T-14421-AA | |||
| 2 | RR135 (GN-BN) | 20 | 1L2T-14421-AA | |||
| 3 | CB150 (YE-OG) | 14 | 97BG-14421-BCA | |||
| 4 | CB150 (YE-OG) | 14 | 97BG-14421-BCA | |||
| 5 | VR242 (WH) | 20 | 1L2T-14421-AA | |||
| 6 | RR186 (BN) | 20 | 1L2T-14421-AA | |||
| 7 | VR243 (WH-GN) | 20 | 1L2T-14421-AA | |||
| 8 | RR187 (YE-GY) | 20 | 1L2T-14421-AA | |||
| 9 | RR133 (GY-BN) | 20 | 97BG-14421-BAA | |||
| 10 | VR219 (GN-WH) | 20 | 97BG-14421-BAA | |||
| 11 | RR134 (BN-BU) | 20 | 97BG-14421-BAA | |||
| 12 | VR220 (VT-OG) | 20 | 97BG-14421-BAA | |||
| 13 | VR222 (GY-OG) | 20 | 1L2T-14421-AA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | VR221 (BU-GN) | 20 | 9U5T-14474-MA | |||
| 2 | RR135 (GN-BN) | 20 | 9U5T-14474-MA | |||
| 3 | CB150 (YE-OG) | 14 | 97BG-14474-BCA | |||
| 4 | CB150 (YE-OG) | 16 | 97BG-14474-BCA | |||
| 5 | VR242 (WH) | 20 | 9U5T-14474-MA | |||
| 6 | RR186 (BN) | 20 | 9U5T-14474-MA | |||
| 7 | VR243 (WH-GN) | 20 | 9U5T-14474-MA | |||
| 8 | RR187 (YE-GY) | 20 | 9U5T-14474-MA | |||
| 9 | RR133 (GY-BN) | 20 | 97BG-14474-BAA | |||
| 10 | VR219 (GN-WH) | 20 | 97BG-14474-BAA | |||
| 11 | RR134 (BN-BU) | 20 | 97BG-14474-BAA | |||
| 12 | VR220 (VT-OG) | 20 | 97BG-14474-BAA | |||
| 13 | VR222 (GY-OG) | 20 | 9U5T-14474-MA | |||

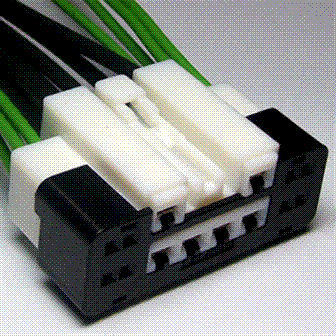

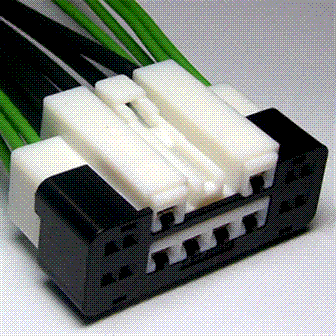

Available Pigtail Kits
Pigtail Kit Part Number WPT-1587
Service Part Number:
CU2Z-14S411-APB
Gauge:
14 20
Pin material:
Tin & Silver
Cavities:
14
Vehicle Uses:
- Connector - Inline
- Module - Wiper Control
Pigtail Kit Part Number WPT-1286
Service Part Number:
CU2Z-14S411-APA
Gauge:
14 20
Pin material:
Tin & Silver
Cavities:
14
Vehicle Uses:
- Connector - Inline
- Module - Wiper Control
Pigtail Kit Part Number WPT-1620
Service Part Number:
CU2Z-14S411-APC
Gauge:
14 20
Pin material:
Tin & Silver
Cavities:
14
Vehicle Uses:
- Connector - Inline
- Module - Wiper Control
