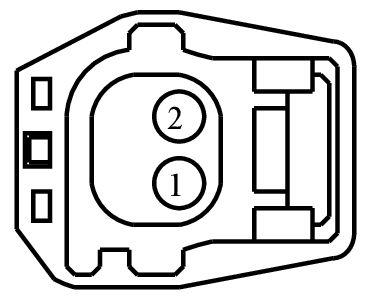

Connector End View C138 - WASHER FLUID LEVEL SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C138	WASHER FLUID LEVEL SWITCH	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-ADA	LU2Z-14474-CA	1.50
97BG-14474-AEA	LU2Z-14474-CA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CMC20 (GY)	20	SWITCH - LOW LEVEL WASHER FLUID	97BG-14474-ADA
2	GD124 (BK-VT)	18	GROUND - FENDER FRONT RIGHT # 2ND POINT	97BG-14474-AEA

Available Pigtail Kits

Pigtail Kit Part Number WPT-273

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-GVA

Gauge:

16

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Sensor - Ambient Temp
• Sensor - Heated Thermostat
